PART# BMX-2121
Hien
ESCORT
PASSPORT
MAX
1
i11111111 111111111111111
1111
Innovative Mount
i
ng Solut
i
ons
LEFT HAND DRIVE VEHICLE
1
28028 43650
l

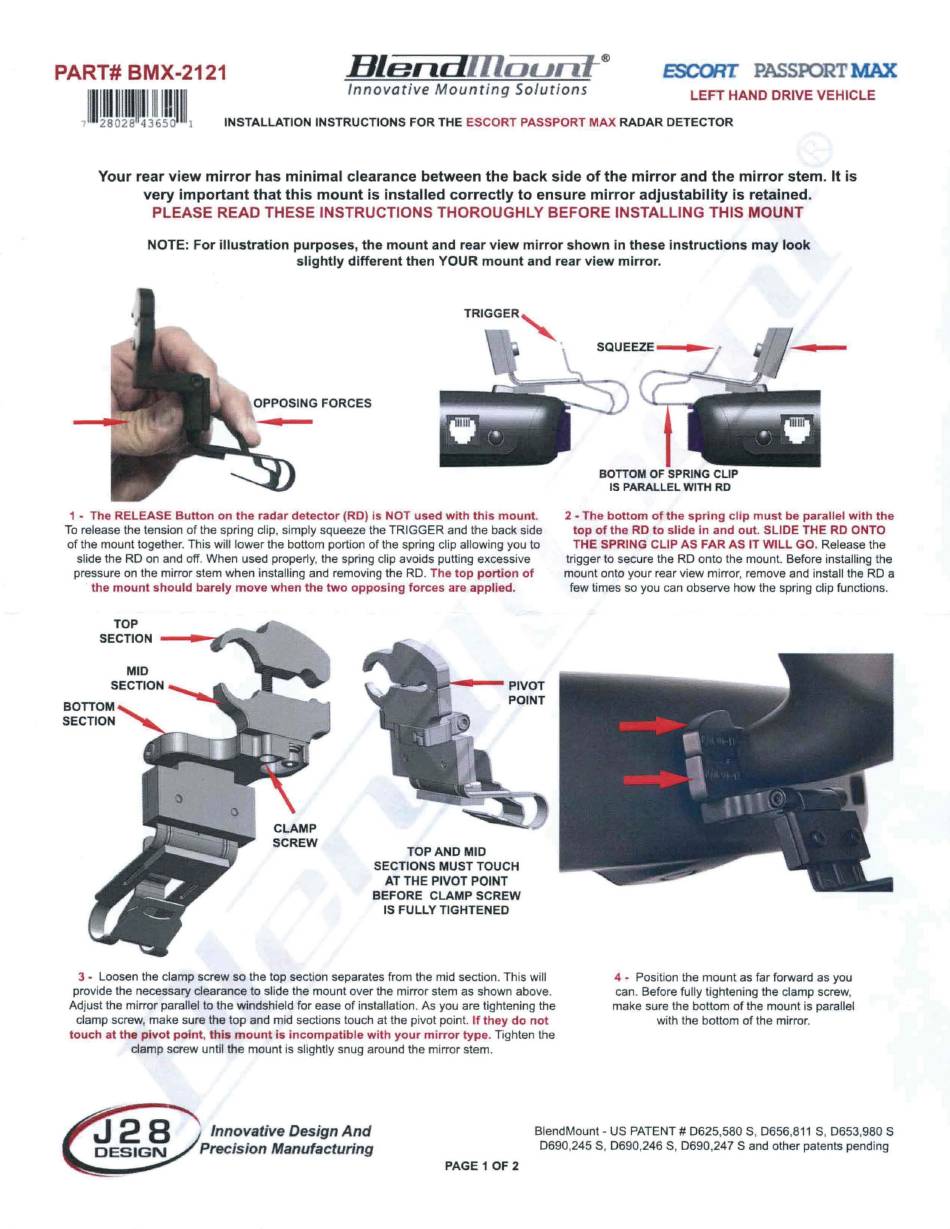

INSTALLATION INSTRUCTIONS FOR THE
ESCORT PASSPORT MAX
RADAR DETECTOR
Your rear view mirror has minimal clearance between the back side of the mirror and the mirror stem.
It is
very important that this mount is
installed
correctly to ensure mirror adjustability is retained.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING THIS MOUNT
NOTE:
For
illustration purposes, the mount and rear view mirror shown
in
these
instructions
may look
slightly different then YOUR mount and rear view mirror.
OPPOSING
FORCES
1 - The RELEASE Button on the radar detector (RD) is NOT used with this
mount.
To release the tension of
the
spring
clip,
simply squeeze the
TRIGGER
and
the
back side
of
the
mount together. This will lower the bottom portion of the spring clip allowing you to
slide the RD on and
off.
When used
properly,
the spring clip avoids putting excessive
pressure on the mirror stem when installing and removing the
RD.
The top portion of
the mount should barely move when the two opposing forces are
applied.
TOP
SECTION
---~-,r~-.
TOP
AND MID
SECTIONS MUST TOUCH
AT THE PIVOT POINT
BEFORE CLAMP SCREW
IS
FULLY TIGHTENED
3
-
Loosen the clamp screw so
the top
section separates from the mid
section.
This will
provide the necessary clearance
to
slide the mount over the mirror stem as shown
above.
Adjust the mirror parallel to the windshield for ease of installation. As
you
are tightening the
clamp
screw,
make sure the top and mid sections
touch
at the pivot point.
If they do not
touch at the pivot
point,
this mount
is
incompatible with your mirror type.
Tighten
the
clamp screw until the mount is slightly snug
around
the mirror
stem.
BOTTOM OF
SPRING CLIP
IS PARALLEL WITH RO
2 - The bottom of the spring clip must be parallel with the
top of the RD to slide in and out. SLIDE THE RD ONTO
THE SPRING CLIP AS FAR AS IT WILL
GO.
Release the
trigger to secure the
RD
onto the mount.
Before
installing the
mount onto your rear view mirror, remove and
install
the
RD
a
few times so you can observe how the spring clip functions
.
4 -
Position
the mount as far forward as you
can.
Before
fully
tig htening
the clamp
screw,
make sure
the
bottom
of
the mount is parallel
with
the bottom of the mirror.
Innovative
Design
And
Precision
Manufacturing
BlendMount
-
US PATENT# 0625,580
S,
0656,811
S,
D653,980 S
0690,245
S,
0690,246
S,
0690 ,247
S
and other patents pending
PAGE 1 OF 2
