Summary of Contents for Topdon TopScan Moto

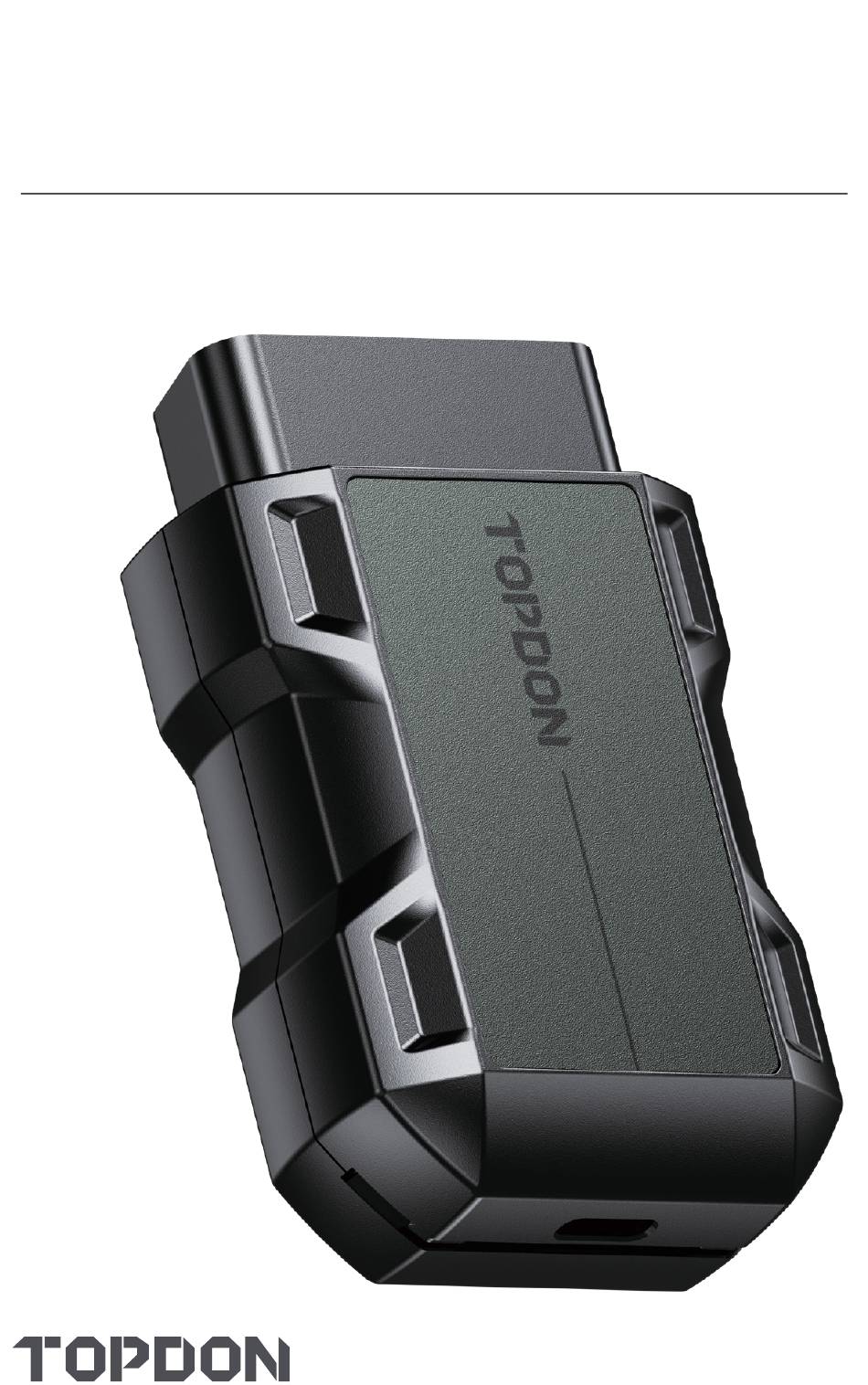

- Page 1 TopScan Moto Bluetooth Motorcycle Diagnostic Dongle User Manual...
-
Page 3: Table Of Contents
........Section 1 What's in the Box? ........Section 2 Product Overview ........Section 3 Getting Started ........Section 4 Using the TopScan Moto via the App ........Section 5 Specifications ........Section 6 FAQ ........Section 7 Warranty ........ -
Page 4: Safety Is Always The First Priority
Safety Is Always the First Priority! For your safety, the safety of others, and to avoid any damage to the product and your motorcycle, CAREFULLY READ AND MAKE SURE YOU FULLY UNDERSTAND ALL THE SAFETY INSTRUCTIONS AND MESSAGES ON THIS MANUAL BEFORE OPERATING. You must also read the motorcycle's service manual, and observe the stated precautions or instructions before and during any test or service procedure. -
Page 5: Section 1 What's In The Box
Section 1 What's in the Box? Quick User Guide TopScan Moto Quick User Guide... -
Page 6: Section 2 Product Overview
Section 2 Product Overview... - Page 7 Depending on the motorcycle model, additional adapter cables may be required (not included). 3. USB Type-C Port The TopScan Moto can be powered by an external power source using a USB cable (not included). The USB Type-C port is generally used for device activation and...
-
Page 8: Section 3 Getting Started
Section 3 Getting Started 3.1 Download the App For iOS: Search for "TopGuru" in App Store to download and install. For Android: Search for "TopScan" in Google Play to download and install. Note: This app is compatible with iOS 11.0 or later / Android 7.0 or later. Figure 3-1... - Page 9 3.2 Register & Log In Open the app and log in to your TOPDON account. (If you do not have an account, please register with your email.) Figure 3-2...
- Page 10 Note: The TopScan Moto should be connected to a power source via its USB Type-C port or properly plugged into the motorcycle's DLC before Bluetooth can be connected.
- Page 11 3.4 Select the free software You will need to select a motorcycle make to download the free software. Tap Select Now. Then select a motorcycle make and confirm. (It cannot be changed once selected. Please select carefully.) Note: If you do not select the free software for a motorcycle make, you will be redirected to the free software selection page each time you select "Diagnostics".
- Page 12 Figure 3-5...
- Page 13 3.5 Download the Diagnostic Software The system will start downloading the selected software. Figure 3-6...
- Page 14 3.6 Plug the TopScan Moto into the DLC of your motorcycle Note: Make sure the ignition is OFF before plugging in the unit. (Not included) Figure 3-7 The Data Link Connector (DLC) of a motorcycle is typically located under the seat or near the engine (See Figure 3-7).
- Page 15 Tap the icon at the top right of any screen with this icon to establish Bluetooth connection with the TopScan Moto unit. After the connection is successfully established, the icon changes to Once Bluetooth is successfully paired, the connection will be automatically established when you open the app.
-
Page 16: Section 4 Using The Topscan Moto Via The App
Section 4 Using the TopScan Moto via the App 4.1 Home Screen Figure 4-1 1. Main Functions Swipe right or left to move through the functions. Configures the TopScan Moto to operate as a scan tool. Diagnostics... - Page 17 2. Repair Information Includes DTC Repair Guide and Warning Light Library, which provides reference information on vehicle inspection, diagnostics, and repair. 3. Toolbar Selecting this icon returns you to the home screen. Home Allows you to purchase or renew diagnostic software license. Mall Selecting this icon opens the message screen.
- Page 18 4.2.1 Auto Scan and Individual System Diagnostics Identifying the Motorcycle To perform Auto Scan or Individual System Diagnostics, you need to identify your motorcycle first. 1. Tap Diagnostics from the home screen. A list of motorcycle- specific diagnostic software will display. Figure 4-2 2.
- Page 19 Figure 4-3 Automatic Manually enter Vehicle Identification Number (VIN) or tap Read to acquire VIN, then tap Confirm. TopScan Moto will automatically decode the VIN to identify the motorcycle. Manual Manually select the vehicle information to identify the motorcycle.
- Page 20 4. A system menu will display after the motorcycle is identified. Note: Systems may vary by motorcycle make, model and year. Figure 4-4 You can either select Scan or tap a motorcycle system to open the function menu for that system.
- Page 21 Scan Scan detects the systems supported by the motorcycle and retrieves DTCs for all of these systems, providing a complete health check of your motorcycle. Performing Scan before and after repair could help in troubleshooting and validating repairs. Pre and post scan reports can allow you to record the condition of the motorcycle before and after repair for comparison.
- Page 22 Button Description Report - tap to save the current scan results in report format. (To view the saved reports, go to Me > Diagnostic Report.) Clear DTCs - tap to clear all the DTCs retrieved. Show All / Show Actual - tap to toggle between showing all motorcycle systems and showing only the supported systems.
- Page 23 (ECU) for the currently selected system. Read Trouble Code To retrieve DTC for the currently selected system: Tap Read Trouble Code in the function menu. TopScan Moto will communicate with the ECU and retrieve and display DTCs for the currently selected system.
- Page 24 Icon Description Tap to open a window that allows you to search on Google for more information about the DTC. When the icon lights up, tap to view the detailed description of the DTC. When the icon lights up, tap to view the freeze frame captured at the time when the DTC occurs.
- Page 25 Read Data Stream To view data stream for the currently selected system: 1. Tap Live Data in the function menu. A data stream list displays. Figure 4-8 Button Description Edit - allows you to customize your data stream list. Select the check box of the data stream you are interested in viewing and tap Confirm.
- Page 26 Record - allows you to record and save data stream information for comparison and analysis. To view the saved data stream information, go to Me > Data Stream. Each entry of the list shows the name and the current value of the data stream.
- Page 27 2. For ease of comparison and observation, the Combine function is provided which allows up to 4 data streams to be viewed in one graph. To access the Combine function: ① Tap the icon to change the display form, and go back to the data stream screen.
- Page 28 ② Tap the full screen icon at the right side. The following screen will appear. Figure 4-11 ③ Tap Combine, and select up to four data streams.
- Page 29 Figure 4-12 ④ Tap Confirm. A combined graph will display. Note: IF THE MOTORCYCLE MUST BE DRIVEN TO VIEW THE LIVE DATA STREAM, ALWAYS HAVE A SECOND PERSON HELPING YOU. DO NOT WATCH THE DATA STREAM WHILE DRIVING.
- Page 30 The TopScan Moto supports common special functions such as Oil Reset. 4.2.2 Diagnostic Feedback The TopScan Moto allows you to instantly send diagnostic feedback (with logs of diagnostic data automatically attached) while you are encountering a software problem with the diagnostics operations.
- Page 31 4.3 Repair Information 4.3.1 Technical Service Bulletins To view technical service bulletins: Tap Repair Information > Technical Service Bulletins. Select motorcycle make, model, year, system and subsystem, and tap Next. A list of OEM technical service bulletins issued for the selected motorcycle will display.
- Page 32 4.4 Me Figure 4-23 4.4.1 Account Profile You can tap the profile photo to view and edit the profile information. 4.4.2 Data Stream Allows you to view the saved data stream information. 4.4.3 Diagnostic Report Allows you to view the saved diagnostic reports.
- Page 33 4.4.4 Coverage List Allows you to check whether the TopScan is applicable to your motorcycle. 4.4.5 Device Management Allows you to bind the VCI / T-Darts (sold separately) to your account. 4.4.6 Firmware Update Allows you to update the VCI firmware if a new version is available. 4.4.7 Uninstall Software Allows you to uninstall the motorcycle-specific Diagnostics software .
-
Page 34: Section 5 Specifications
Section 5 Specifications Bluetooth Version: Bluetooth 5.0 Range: 33 feet (10 m) Operating System Supported iOS 11.0 or later Android 7.0 or later -4 ℉ to 158 ℉ (-20 ℃ to 70 ℃ ) Storage Temperature 14 ℉ to 122 ℉ (-10 ℃ to 50 ℃ ) Working Temperature Dimensions 84.1 ×... -
Page 35: Section 6 Faq
Follow the steps below to identify the problem: 1) Check if the ignition is ON. 2) Check if the TopScan Moto is securely plugged into the motorcycle's diagnostic port. 3) Turn the ignition off. Then, turn it on after 10 seconds and continue the operation. -
Page 36: Section 7 Warranty
TOPDON shall not be liable for any incidental or consequential damages arising from the device's use, misuse, or mounting. If there is any conflict between the TOPDON warranty policy and local laws, the local laws shall prevail. This limited warranty is void under the following conditions: •... -
Page 37: Section 8 Fcc
Section 8 Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 38 Scan the QR code for more support!
