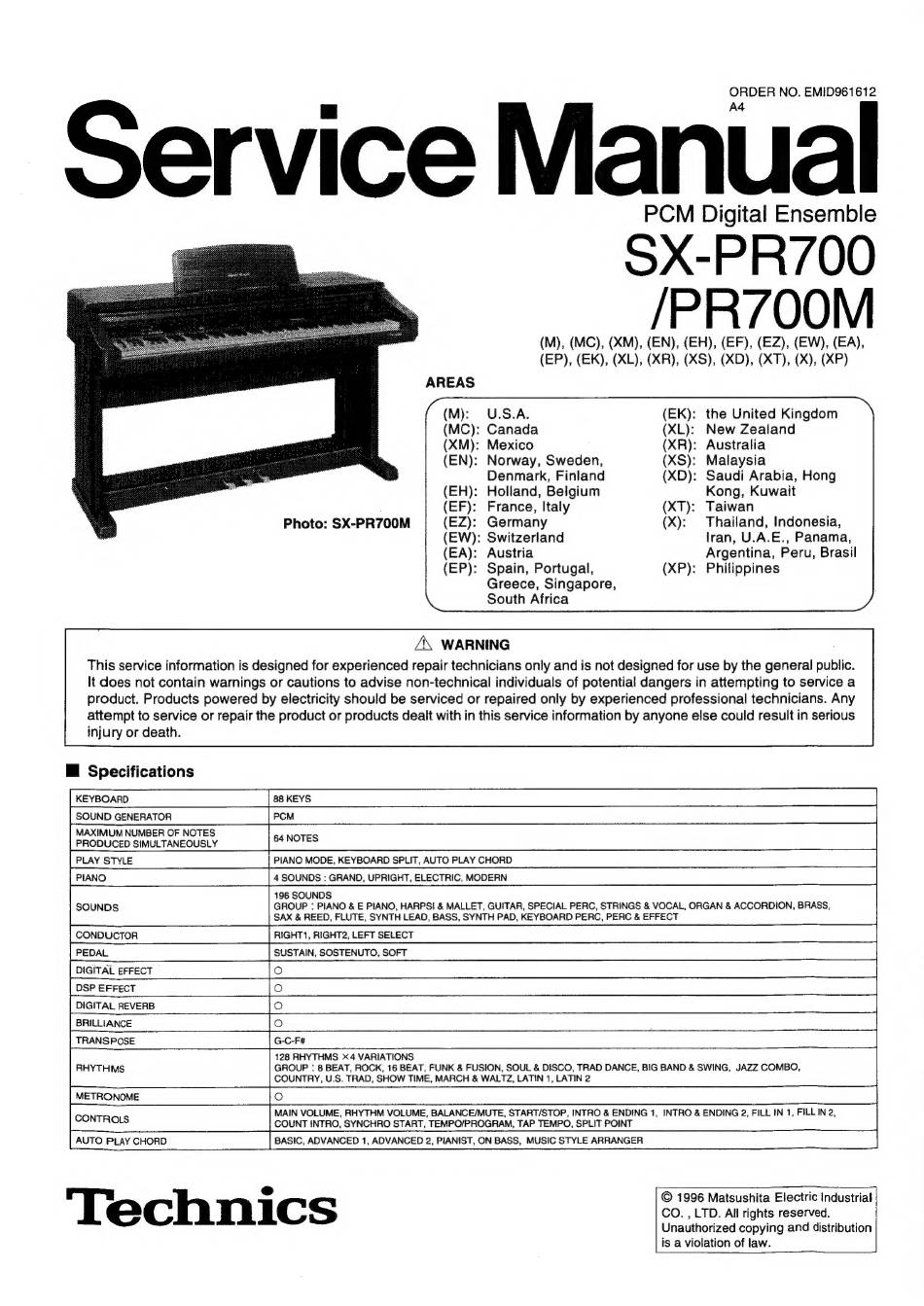

ORDER NO. EMID961612
PCM Digital Ensemble
SX-PR700
/PR700M
(M), (MC), (XM), (EN), (EH), (EF), (EZ), (EW), (EA),
(EP), (EK), (XL), (XR), (XS), (XD), (XT), (X), (XP)
(M):
U.S.A.
(EK): the United Kingdom
(MC): Canada
(XL):
New Zealand
(XM): Mexico
(XR): Australia
(EN):
Norway, Sweden,
(XS):
Malaysia
Denmark, Finland
(XD):
Saudi Arabia, Hong
(EH):
Holland, Belgium
Kong, Kuwait
(EF):
France, Italy
(XT):
Taiwan
Photo: SX-PR700M
(EZ):
Germany
(X):
Thailand, Indonesia,
(EW): Switzerland
Iran, U.A.E., Panama,
(EA): Austria
Argentina, Peru, Brasil
(EP): Spain, Portugal,
(XP):
Philippines
Greece, Singapore,
South Africa
Z\ WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a
product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any
attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious
injury or death.
@ Specifications
KEYBOARD
88 KEYS
SOUND GENERATOR
PCM
MAXIMUM NUMBER OF NOTES
PRODUCED SIMULTANEOUSLY
PLAY STYLE
64 NOTES
PIANO MODE, KEYBOARD SPLIT, AUTO PLAY CHORD
4 SOUNDS : GRAND, UPRIGHT, ELECTRIC, MODERN
196 SOUNDS
GROUP : PIANO & E PIANO, HARPS! & MALLET, GUITAR, SPECIAL PERC, STRINGS & VOCAL, ORGAN & ACCORDION, BRASS,
SAX & REED, FLUTE, SYNTH LEAD, BASS, SYNTH PAD, KEYBOARD PERC, PERC & EFFECT
CONDUCTOR
RIGHT1, RIGHT2, LEFT SELECT
PEDAL
SUSTAIN, SOSTENUTO, SOFT
|
SOUNDS
DIGITAL EFFECT
e)
DSP EFFECT
Oo
DIGITAL REVERB
Oo
0
TRANSPOSE
G-C-F#
128 RHYTHMS X4 VARIATIONS
RHYTHMS
GROUP : 8 BEAT, ROCK, 16 BEAT, FUNK & FUSION, SOUL & DISCO, TRAD DANCE, BIG BAND & SWING, JAZZ COMBO,
COUNTRY, U.S. TRAD, SHOW TIME, MARCH & WALTZ, LATIN 1, LATIN 2
METRONOME
Oo
MAIN VOLUME, RHYTHM VOLUME, BALANCE/MUTE, START/STOP, INTRO & ENDING 1, INTRO & ENDING 2, FILL IN 1, FILL IN 2,
COUNT INTRO, SYNCHRO START, TEMPO/PROGRAM, TAP TEMPO, SPLIT POINT
AUTO PLAY CHORD
BASIC, ADVANCED 1, ADVANCED 2, PIANIST, ON BASS, MUSIC STYLE ARRANGER
CONTROLS
=
© 1996 Matsushita Electric Industrial
ec
nics
CO. , LTD. All rights reserved.
Unauthorized copying and distribution
is a violation of law.
