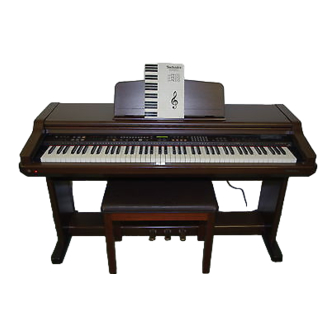

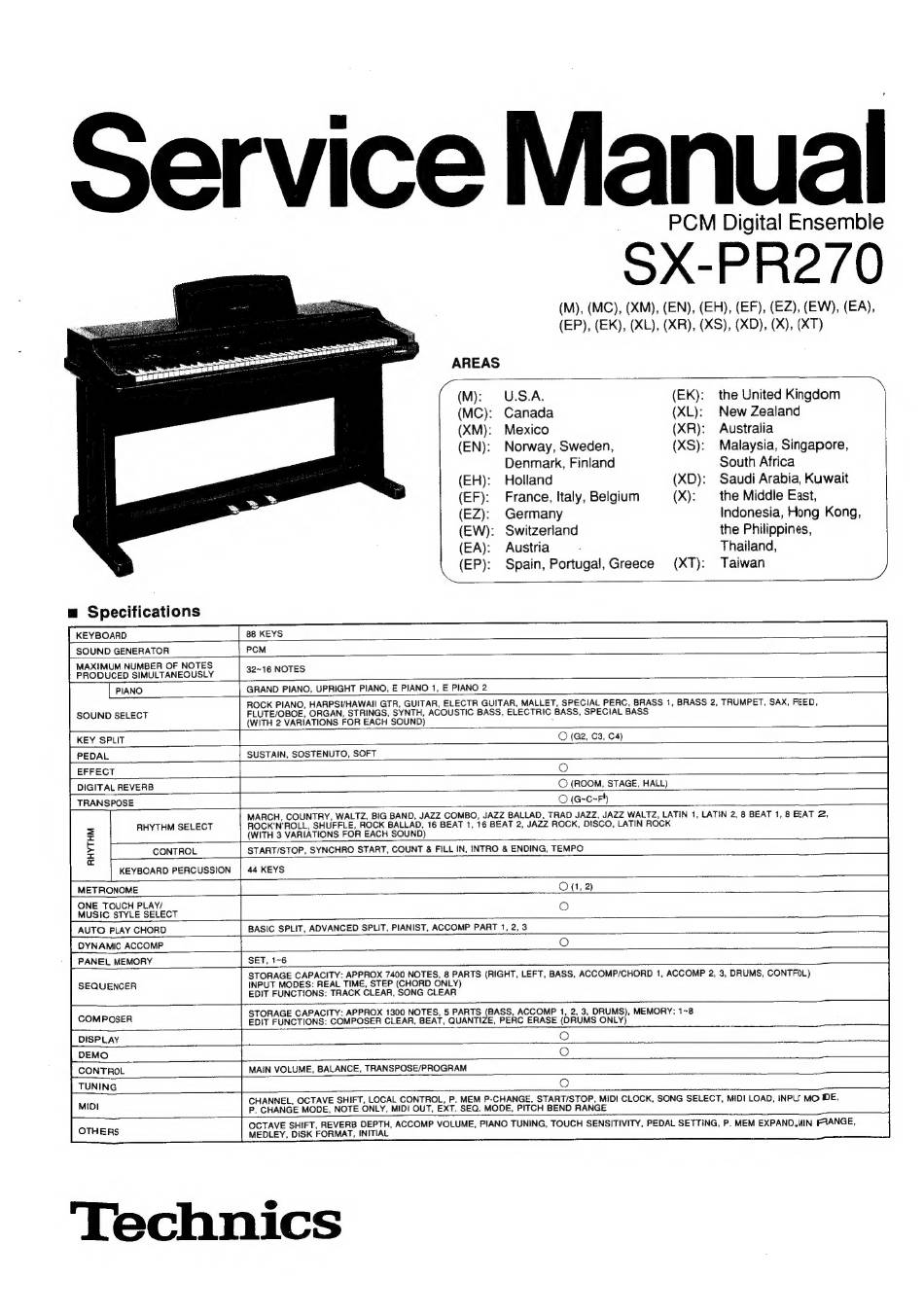

Technics SX-PR270 M Service Manual

mw Specifications
KEYBOARD
SOUND GENERATOR
MAXIMUM NUMBER OF NOTES
PRODUCED SIMULTANEOUSLY
PCM Digital Ensemble
SX-PR270
(M), (MC), (XM), (EN), (EH), (EF), (EZ), (EW), (EA),
(EP), (EK), (XL), (XR), (XS), (XD), (X), (XT)
AREAS
(M): U.S.A. (EK): the United Kingdom \
(MC): Canada (XL): New Zealand
(XM): Mexico (XR): Australia
(EN): Norway, Sweden, (XS): Malaysia, Singapore,
Denmark, Finland South Africa
(EH): Holland (XD): Saudi Arabia, Kuwait
(EF): France, Italy, Belgium (X): the Middle East,
(EZ): Germany Indonesia, Hong Kong,
(EW): Switzerland the Philippines,
(EA): Austria Thailand,
(EP): Spain, Portugal, Greece (XT): Taiwan
88 KEYS
PCM
32~16 NOTES
| PIANO
GRAND PIANO, UPRIGHT PIANO, E PIANO 1, E PIANO 2
SOUND SELECT
ROCK PIANO, HARPSI/HAWAI! GTR, GUITAR, ELECTR GUITAR, MALLET, SPECIAL PERC, BRASS 1, BRASS 2, TRUMPET, SAX, FEED,
FLUTE/OBOE, ORGAN, STRINGS, SYNTH, ACOUSTIC BASS, ELECTRIC BASS, SPECIAL BASS
(WITH 2 VARIATIONS FOR EACH SOUND) :
KEY SPLIT
© (G2, C3, C4)
PEDAL
SUSTAIN, SOSTENUTO, SOFT
EFFECT
O
DIGITAL REVERB
© (ROOM, STAGE, HALL)
TRANSPOSE
© (G~-c~F)
|
RHYTHM SELECT
MARCH, COUNTRY, WALTZ, BIG BAND, JAZZ COMBO, JAZZ BALLAD, TRAD JAZZ, JAZZ WALTZ, LATIN 1, LATIN 2, 8 BEAT 1, 8 BEAT 2,
ROCK'N'ROLL, SHUFFLE, ROCK BALLAD, 16 BEAT 1, 16 BEAT 2, JAZZ ROCK, DISCO, LATIN ROCK
(WITH 3 VARIATIONS FOR EACH SOUND)
CONTROL
START/STOP, SYNCHRO START, COUNT & FILL IN, INTRO & ENDING, TEMPO
RHYTHM
KEYBOARD PERCUSSION
44 KEYS
METRONOME
O (1, 2)
ONE TOUCH PLAY/
MUSIC STYLE SELECT
O
AUTO PLAY CHORD
BASIC SPLIT, ADVANCED SPLIT, PIANIST, ACCOMP PART 1, 2, 3
=
OYNAMIC ACCOMP.
O
PANEL MEMORY
SET, 1~6
SEQUENCER
STORAGE CAPACITY: APPROX 7400 NOTES, 8 PARTS (RIGHT, LEFT, BASS, ACCOMP/CHORD 1, ACCOMP 2, 3, DRUMS, CONTFDL)
INPUT MODES: REAL TIME, STEP (CHORD ONLY)
EDIT FUNCTIONS: TRACK CLEAR, SONG CLEAR
COMPOSER
STORAGE CAPACITY: APPROX 1300 NOTES, 5 PARTS (BASS, ACCOMP 1, 2, 3, DRUMS), MEMORY: 1~8
EDIT FUNCTIONS: COMPOSER CLEAR, SEAT, QUANTIZE, PERC ERASE (DRUMS ONLY)
DISPLAY
2)
aaa
DEMO
ie)
CONTROL
ja.
MAIN VOLUME, BALANCE, TRANSPOSE/PROGRAM
TUNING
O
MIDI
CHANNEL, OCTAVE SHIFT, LOCAL CONTROL, P. MEM P-CHANGE, START/STOP, MIDI CLOCK, SONG SELECT, MIDI LOAD, INPLT MO WE,
P. CHANGE MODE, NOTE ONLY, MID! OUT, EXT. SEQ. MODE, PITCH BEND RANGE
OTHERS
OCTAVE SHIFT, REVERS DEPTH, ACCOMP VOLUME, PIANO TUNING, TOUCH SENSITIVITY, PEDAL SETTING, P. MEM EXPANDO,UIN FAANGE,
MEDLEY, DiSK FORMAT, INITIAL
