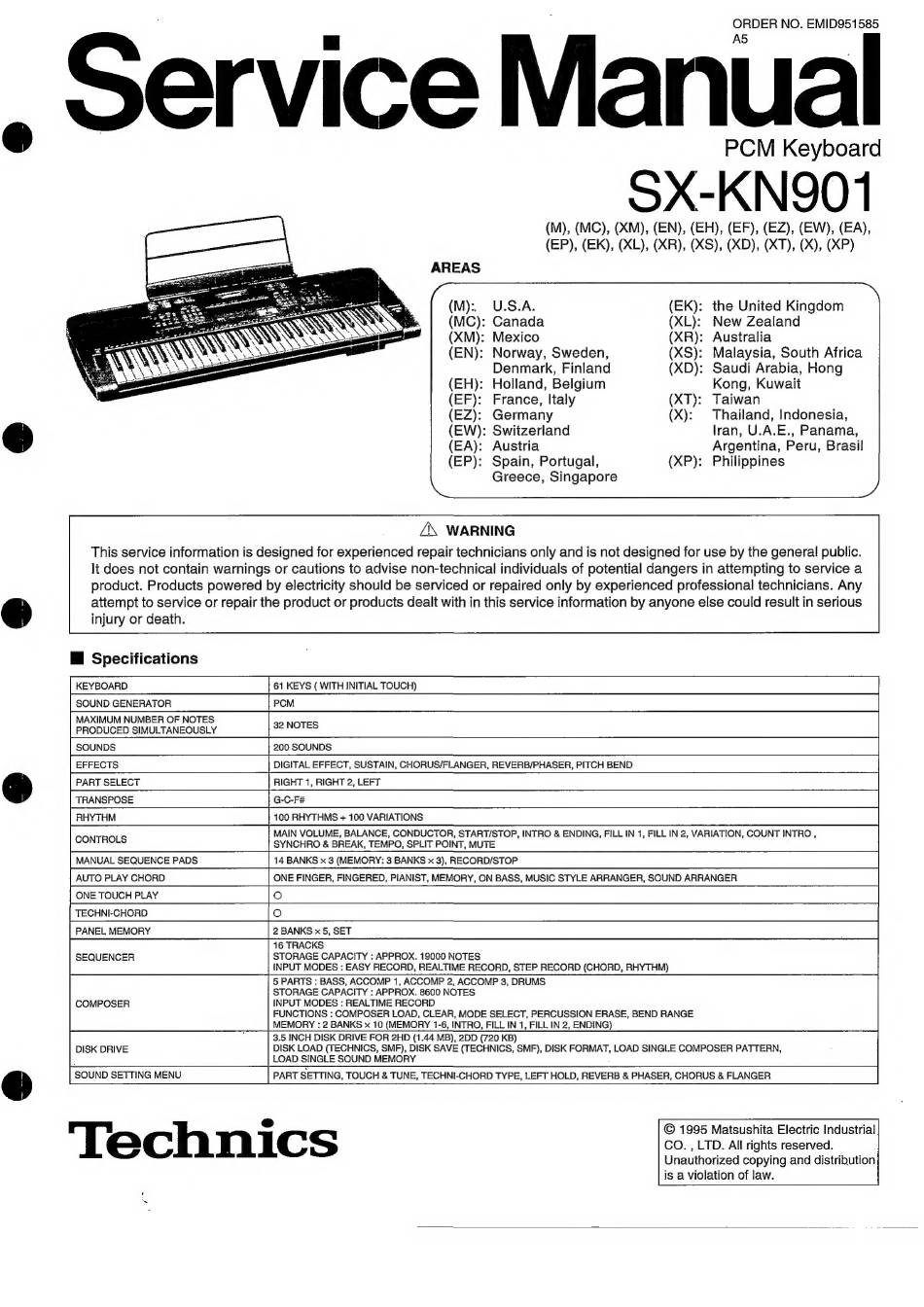

Technics SX-KN901 Service Manual

ORDER NO. EMID951585

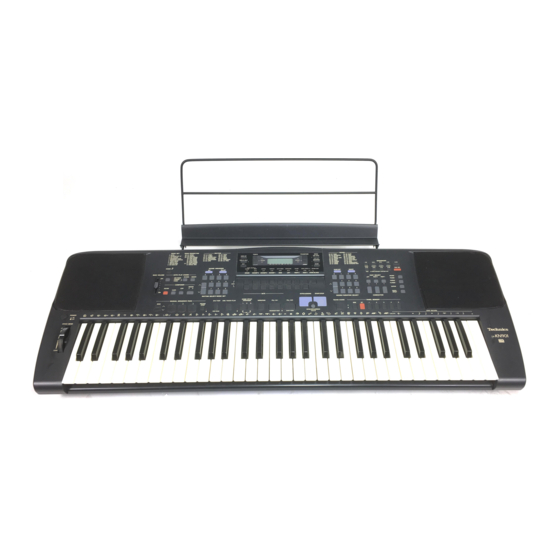

PCM Keyboard
oX-KN901
(M), (MC), (XM), (EN), (EH), (EF), (EZ), (EW), (EA),
(EP), (EK), (XL), (XR), (XS), (XD), (XT), (X), (XP)
» U.S.A. (EK): the United Kingdom
: Canada (XL): New Zealand
: Mexico (XR): Australia
Norway, Sweden, (XS): Malaysia, South Africa
Denmark, Finland (XD): Saudi Arabia, Hong
Holland, Belgium Kong, Kuwait
: France, Italy (XT): Taiwan
(EZ): Germany (X): Thailand, Indonesia,
(EW): Switzerland Iran, U.A.E., Panama,
(EA): Austria Argentina, Peru, Brasil
(EP): Spain, Portugal, (XP): Philippines
Greece, Singapore
Z\ WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a
product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any
attempt to service or repair the product or products dealt with in this service information by anyone else could result in serious
injury or death.
i Specifications
SOUND GENERATOR PCM
ane [severe |
SOUNDS 200 SOUNDS |
EFFECTS DIGITAL EFFECT, SUSTAIN, CHORUS/FLANGER, REVERB/PHASER, PITCH BEND
PART SELECT RIGHT 1, RIGHT 2, LEFT
TRANSPOSE G-C-F#
RHYTHM 100 RHYTHMS + 100 VARIATIONS
Serna MAIN VOLUME, BALANCE, CONDUCTOR, START/STOP, INTRO & ENDING, FILL IN 1, FILL IN 2, VARIATION, COUNT INTRO ,
SYNCHRO & BREAK, TEMPO, SPLIT POINT, MUTE
MANUAL SEQUENCE PADS 14 BANKS x 3 (MEMORY: 3 BANKS x 3), RECORD/STOP
AUTO PLAY CHORD ONE FINGER, FINGERED, PIANIST, MEMORY, ON BASS, MUSIC STYLE ARRANGER, SOUND ARRANGER
ONE TOUCH PLAY O
TECHNI-CHORD oO
PANEL MEMORY 2 BANKS x 5, SET
16 TRACKS
STORAGE CAPACITY : APPROX. 19000 NOTES
INPUT MODES : EASY RECORD, REALTIME RECORD, STEP RECORD (CHORD, RHYTHM)
5 PARTS : BASS, ACCOMP 1, ACCOMP 2, ACCOMP 3, DRUMS
STORAGE CAPACITY : APPROX. 8600 NOTES
INPUT MODES : REALTIME RECORD
FUNCTIONS : COMPOSER LOAD, CLEAR, MODE SELECT, PERCUSSION ERASE, BEND RANGE
MEMORY : 2 BANKS x 10 (MEMORY 1-6, INTRO, FILL IN 1, FILL IN 2, ENDING)
3.5 INGH DISK DRIVE FOR 2HD (1.44 MB), 2DD (720 KB)
DISK LOAD (TECHNICS, SMF), DISK SAVE (TECHNICS, SMF), DISK FORMAT, LOAD SINGLE COMPOSER PATTERN,
LOAD SINGLE SOUND MEMORY
PART SETTING, TOUCH & TUNE, TECHNI-CHORD TYPE, LEFT HOLD, REVERB & PHASER, CHORUS & FLANGER
SEQUENCER
COMPOSER
DISK DRIVE
SOUND SETTING MENU
had © 1995 Matsushita Electric Industrial
ec nics Co. , LTD. All rights reserved.
Unauthorized copying and distribution
is a violation of law.
