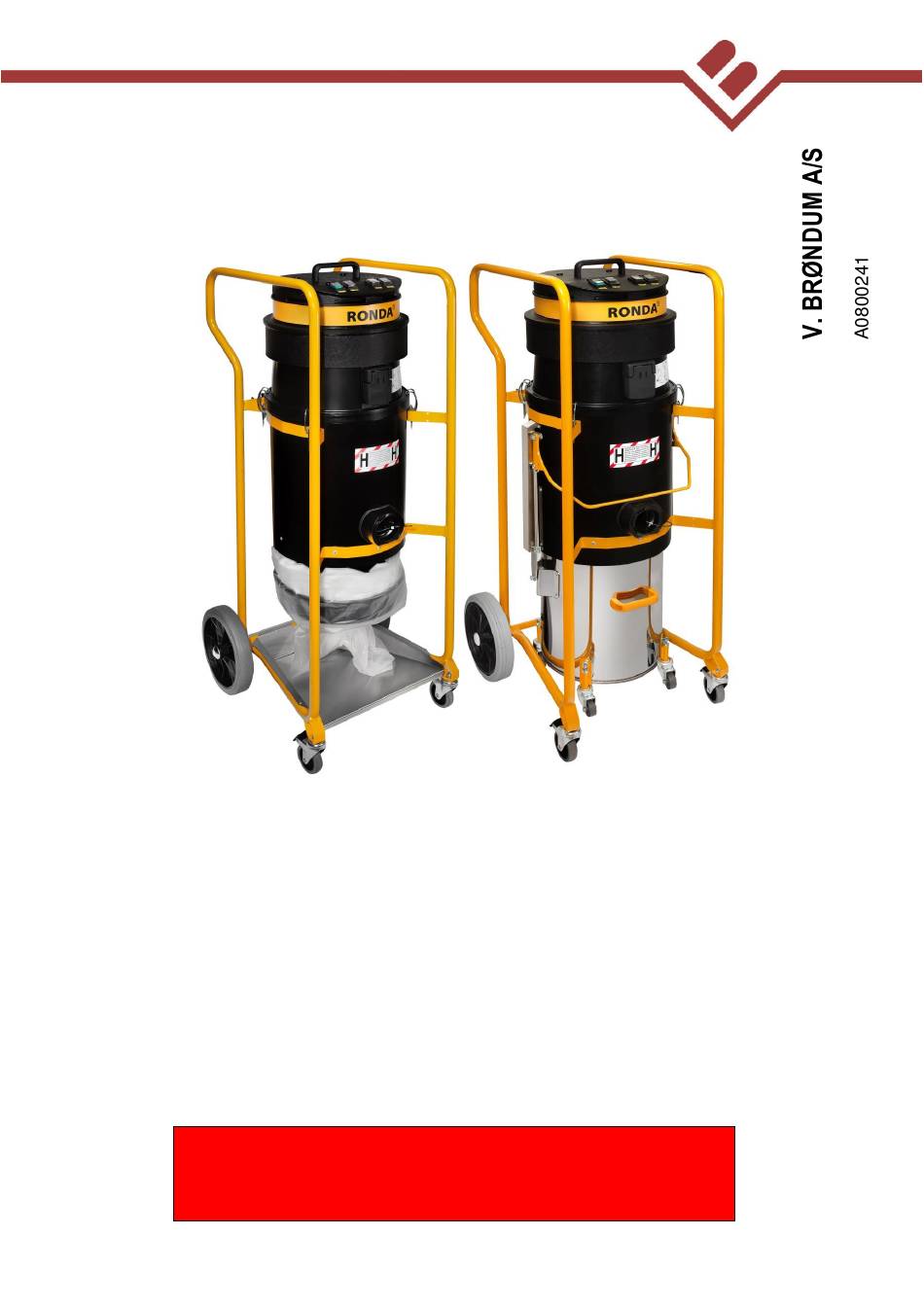

- Page 1 USER MANUAL (Original) Last edited: 15/04/24 RONDA 1800H Twin With Longopac or collection container Handy Industrial Vacuum Cleaner for Fine and Hazardous Dust IMPORTANT! Use only for dry dust Read this manual before you start using the vacuum cleaner.
- Page 2 USER MANUAL V. BRØNDUM A/S RONDA 1800H TWIN ENG - 2...
-
Page 3: Table Of Contents
USER MANUAL Table of Contents General Description ............................4 Safety ................................5 Guidelines Regarding the Disposal of the Machine ..................5 Residual Risk ..............................6 Technical Data ...............................7 Standard Accessories ............................8 Applications ..............................9 Description of the Main Parts .........................9 Motor Top with Suction Motor and HEPA Filter ..................9 Motor Top with Alarm and Shock Valve .................... -
Page 4: General Description

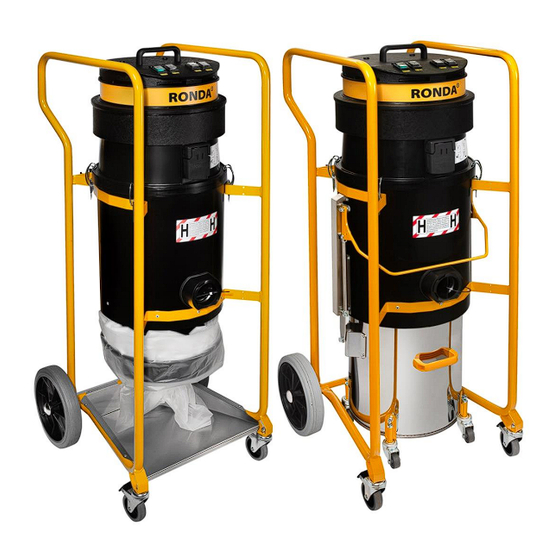

USER MANUAL RONDA 1800H TWIN With Longopac (LP) or collection container (CT) Industrial Vacuum Cleaner for Fine and Hazardous Dust General Description Congratulations on your new RONDA 1800H TWIN LP / CT industrial vacuum cleaner from V. BRØNDUM A/S. Read this manual before you operate the machine. -
Page 5: Safety
USER MANUAL Safety The user manual is to ensure a secure operation of the vacuum cleaner, and to secure that the user is in no way uncertain as to the use. The manual must be stored near the vacuum cleaner. Does any uncertainty arise as to the use of the vacuum cleaner or the material collected, the work should be stopped until all questions have been cleared. -
Page 6: Residual Risk
USER MANUAL Residual Risk: ATTENTION: When lifting the container to operating position, a risk of fingers being caught may occur. The handle is manually operated and is activated by human power alone. In terms of design, the best solutions have been sought to minimize and eliminate this risk. -
Page 7: Technical Data
USER MANUAL Technical Data Make sure that the voltage and fuse of the power supply correspond with the information of the data plate of the RONDA 1800H TWIN is connected to 230 V machine and the information of this manual. power supply. -
Page 8: Standard Accessories
USER MANUAL Standard Accessories RONDA 1800H TWIN is delivered with a complete set of accessories including tubes, hose and all the necessary nozzles. You can reorder the accessories using the following product numbers: 1. 50 mm professional’s set............80.33.5027 2. -
Page 9: Applications
USER MANUAL Applications RONDA 1800H TWIN is a vacuum cleaner in accordance with DS/EN 60335-2-2 and CEI/IEC 60335-2-69 Annex AA class H and may only be used as such. RONDA 1800H TWIN may be used for collection of dust hazardous to health according to CEI/IEC 60335-2-69 Annex AA dust class H. -
Page 10: Motor Top With Alarm And Shock Valve
USER MANUAL Motor Top with Alarm and Shock Valve The motor top is equipped with a shock valve (back-flush) and a beeper alarm which sounds when the air flow is too low (<20 m/sec). Filter Ring with Multi-Tube Filter The large multi-tube filter of the RONDA 1800H TWIN is mounted in the filter ring. -
Page 11: Mounting The Hose
USER MANUAL Mounting of the hose Insert the hose coupling in the machine and turn to the right to lock. When the coupling is mounted, the small pointer of the coupling (see picture 1) must point slightly to the right (see picture 2). The container is equipped with a plug which is to be used during transport and whenever the machine is not in use. -
Page 12: Mode Of Operation
USER MANUAL Mode of Operation By-pass motor: Cooling air A by-pass motor has its own cooling fan which takes in cooling air independently of the working air/vacuumed air. The vacuumed air is guided out through the motor top. In this way, the motor is cooled, even if the working air flow is blocked. -
Page 13: Assembling
USER MANUAL Assembling Inspect the packing and make sure that it is intact and has no sign of damage from handling and transport. Unpack RONDA 1800H TWIN and check that all the parts ordered are there. Assemble the three parts of the tube and mount an appropriate nozzle. ... -
Page 14: Collection Of Dry Dust
USER MANUAL Collection of Dry Dust When the machine has been correctly assembled and connected, it can be switched on and off at the green main switch (POWER) on the motor top. The machine is started with one motor (1xMotor) or two motors (2xMotor). The machine is equipped with an alarm indicating when the air flow is too low for collection. -
Page 15: Cleaning The Multi-Tube Filter During Operation
USER MANUAL Cleaning the Multi-Tube Filter during Operation (as needed, or when the alarm sounds) Block the intake / hose so that full vacuum is made in the machine. Block the intake / Block the hose. Take hold of the flap of the shock valve. -
Page 16: Emptying
USER MANUAL Emptying RONDA 1800H TWIN can collect the material directly in a collection container (model CT) or in a Longopac collection bag (model LP). Before emptying, it is recommended to clean the multi-tube filter bay means of the shock valve. Collection Container: Dust can be collected directly into the container. -
Page 17: Asbestos And Health-Hazardous Dust
USER MANUAL REMEMBER: When the machine has been used without collection bag you must take the necessary precautions against dust exposure. Has the machine been used for dust hazardous to health you MUST wear personal protection equipment (PPE) when emptying and handling the machine. Always empty the machine after use. -
Page 18: Maintenance Of The Motor Top
USER MANUAL Maintenance of the Motor Top The motor top is made of maintenance-free parts and needs therefore no daily maintenance, apart from external cleaning and check that the cords and plugs are undamaged. The easiest way to clean the motor top is with a damp cloth. Do not aim jets of water directly at the motor top. In order to avoid stop in operation and also to make sure that the safety of the vacuum cleaner is intact, it is recommended that the electrical parts are inspected annually by an authorized technician. -
Page 19: Check And Replacement Of The Multi-Tube Filter
USER MANUAL Check and Replacement of the Multi-Tube Filter (Item no. 84.67.1110) The multi-tube filter is made of a robust filter material and has a very long life span. However, the filter will gradually be worn by the many large and small particles that are held back. Therefore it is necessary regularly to check if the filter is undamaged and intact. - Page 20 USER MANUAL How to remove the HEPA filter: Remove the nut fastening the HEPA filter. Use a size 10 ring spanner. BE CAREFUL not to throw away the nut, washer and seal. These are to be used again. Pull a plastic bag (100 μm or the like) over the filter. Pull off the filter from the bracket so the O-ring and the base are released.
-
Page 21: Disposal Of Used Filters
USER MANUAL How to mount the new HEPA filter: Apply some moisture or lubricant to the O-ring before mounting. Push the filter down over the bracket until it is on the adapter ring, in one workflow. Do not pull the filter, as this will release the O-ring and locking ring from their position. -
Page 22: Troubleshooting
USER MANUAL Troubleshooting If the machine does not collect the material in a satisfactory way (alarm beeps): The suction hose, tube or nozzle may be blocked. Stop the machine, and remove the blocking. The collection container or the collection bag may be filled to overflowing. Stop the machine and empty the container. -
Page 23: Declaration Of Conformity
USER MANUAL DECLARATION OF CONFORMITY V. BRØNDUM A/S Sadolinsvej 14 DK – 8600 Silkeborg hereby declares that the following product: Electrically operated industrial vacuum cleaner, classified for dust class “H” . Model: RONDA 1800H TWIN Variants: LP & CT has been designed and produced in conformity with the basic requirements and other relevant conditions of the following directives: Machine Directive (Directive 2006/42/EU) -
Page 24: Service And Repair
USER MANUAL Service and Repair Service and repair are provided free of charge within the guarantee period (invoice must be presented) provided that: The defect has been caused by a construction defect or defective materials. (Normal wear and tear, misuse or insufficient maintenance is not covered by the guarantee).
