4.4.6 Logger LOCUS
GNS701 provides an autonomous logger function that automatically stores position information in
an internal 128kB flash memory. A complete tracking unit can be realized without any external CPU
or memory. The following parameter can be set to optimize logging time:
Type: logging type - Overlap, FullStop.
Interval: Logging based upon interval setting (valid when Interval mode selected).
Distance: Logging distance setting (valid when Distance mode selected).
Speed: Logging speed setting (valid when Speed mode selected).
Status: Logging status – Stop logging, Start logging.
Number: Logging number of data record. Progress bar is shown logging used percentage.
Supported Modes:
AlwaysLocate TM mode: Logging with AlwaysLocate
Fix only mode: Logging when 3D-fix only.
Normal mode: Logging per positioning (ex. 1 second).
Interval mode: Logging per interval (ex. 15 seconds).
Distance mode: Logging by distance (ex. 75 meters).
Speed mode: Logging mode by speed (ex. 15 m/s).

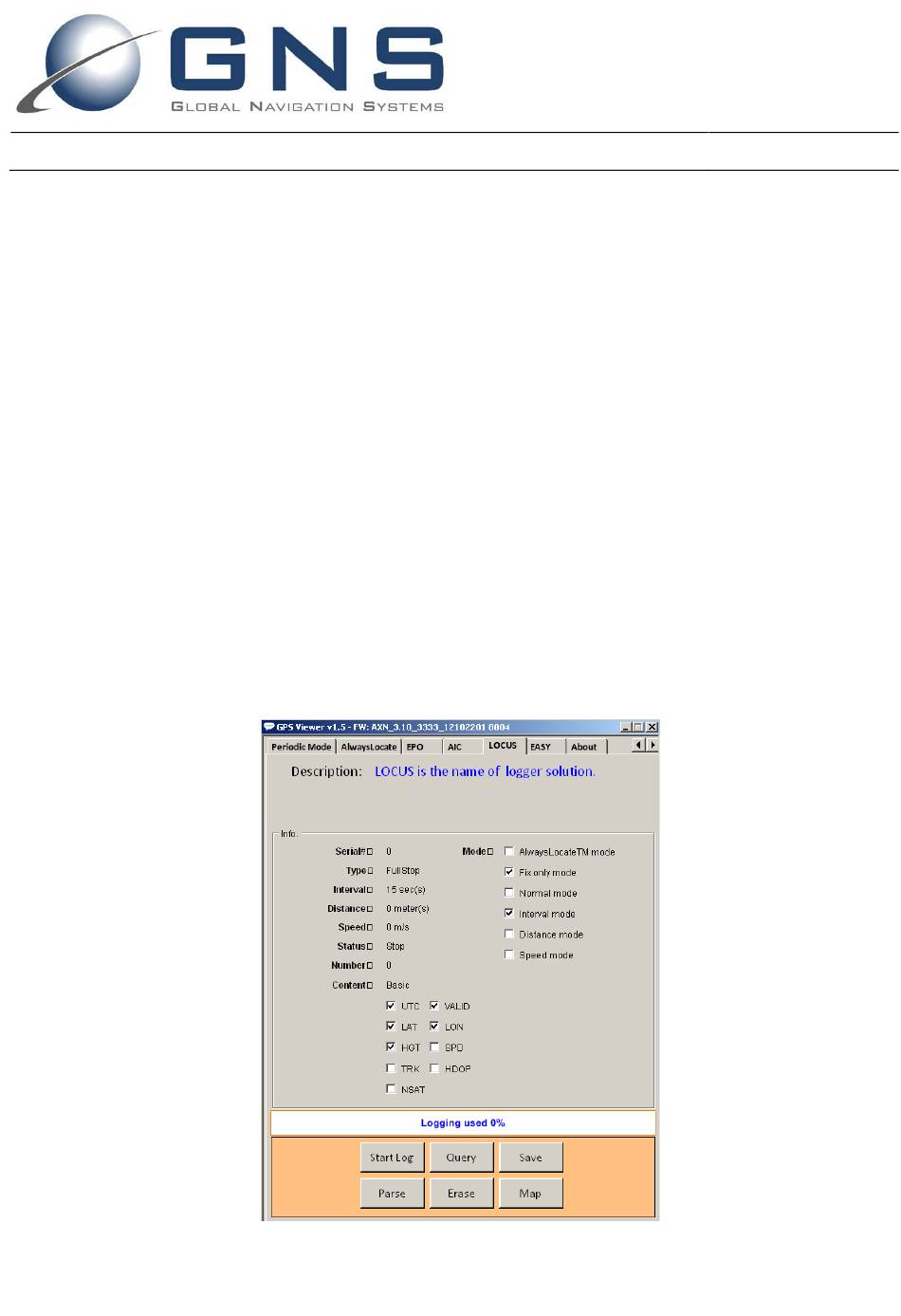

GPS Viewer software only provides storing "basic" content informations: UTC time, fix type, Lat, Lon,
Height and Checksum (16 Bytes) and supports fix only mode + interval mode, no other options are
selectable for this LOCUS logger demonstration application.
