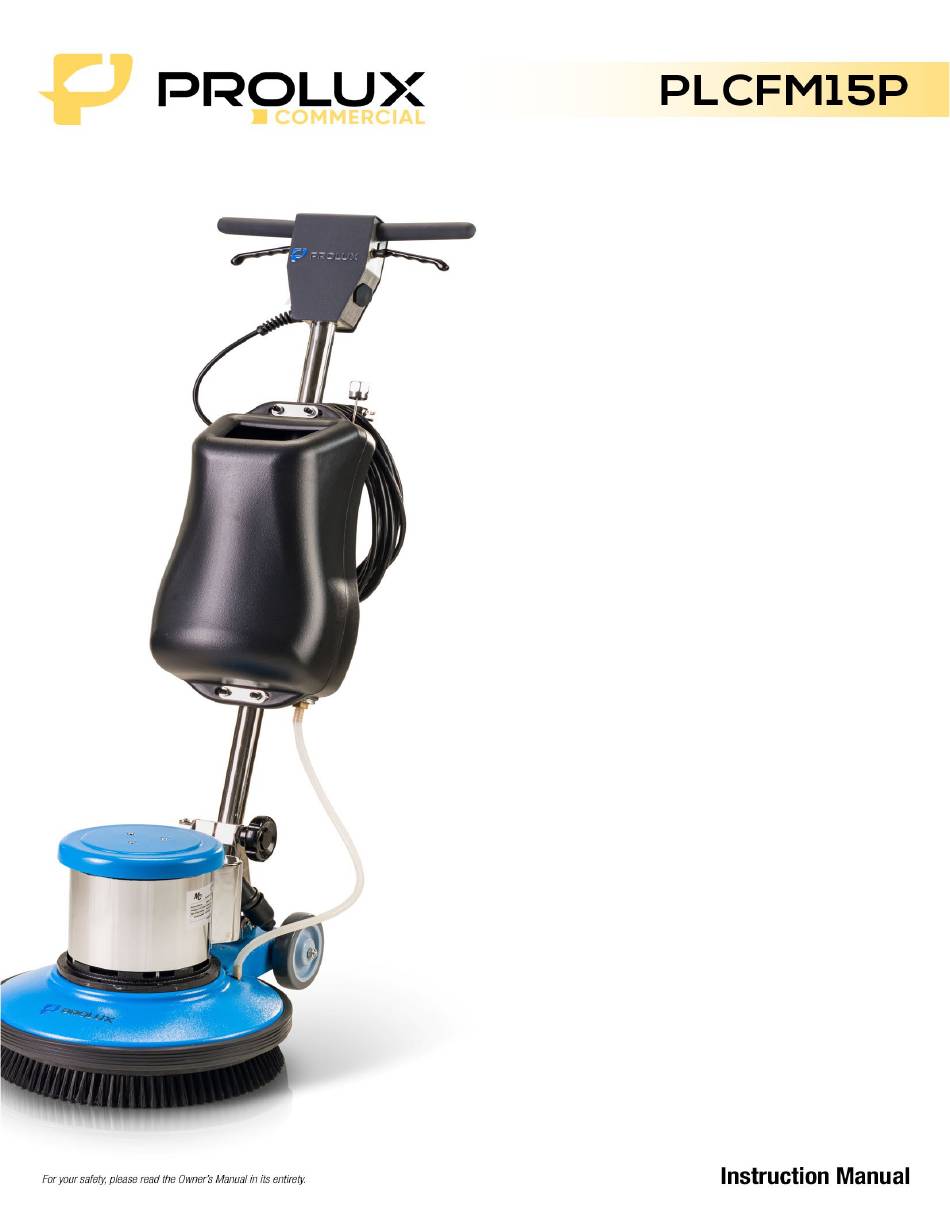

Summary of Contents for Prolux PLCFM15P

  • Page 2: Table Of Contents

    CONTENTS 1.0 Operate Safety Instruction 2.0 Machine Introduction 2.1 Accessories 2.2 Technical Specifications 3.0 Prepare the machine before operation 3.1 How to install the Brush and Pad Driver 3.2 How to adjust the Handle 4.0 Power connection 5.0 How to operate the machine 5.1 How to start/stop the machine 5.2 How to control the machine 6.0 Maintenance...
  • Page 3 Operation Instructions Please read this manual carefully before using this appliance In this manual, there are common safety instructions in details on appliance preparing, operating and maintenance. And operator must obey these accident preventive regulations when use this machine. Any accident aroused by regulations disobey, producer will not bear any liability.
  • Page 4 Electrocution could occur if maintenance and repairs are performed on a unit that is not disconnected from the power source. Disconnect the power supply before attempting any maintenance or service. Always remove the electrical plug from the electrical outlet before changing the brush, pad or other attachment and before leaving the machine.
  • Page 5: Accessories

    Water solution or cleaning materials used with this type of machine can leave wet areas on the floor surface. These areas can cause a dangerous condition for the operator or other persona. Always put CAUTION signs near the area being cleaned.
  • Page 6 2.2 Technical Data KEEPER Multifunction Floor Scrubber TYPE FM10P FM15P FM20P POWER(W) 1100 1500 VOLTAGE(V) 230V FREQUENCY(Hz) ELECTRICAL CURRENT(A) CABLE SPECIFICATION 227 IEC 53(RVV) 300/500V 3G 1.5mm BRUSH PLATE DIA.(mm) PAD DRIVER DIA.(mm) BRUSH PLATE ROTATION SPEED(rpm) CABLE LENGTH(m) WEIGHT(kg) 80(with 2 weight block) with 1 weight block - 6 -...
  • Page 7 How to prepare the machine for operation Please pull off the power plug from electrical outlet before installing or replacing the pad driver, brush and other attachments. How to install brush or pad driver To install brush pad, follow the steps on below: 1,Pull the level in Figure 1, and adjust the handle in the suitable position for you, 2,Tilt the machine backward until the handle touches the...
  • Page 8: How To Adjust The Handle

    3.2 How to adjust the handle To adjust the handle, please follow the steps below: 1. Pull up the level in Figure 1, and adjust the handle 2. Lower the handle to the best operating position NOTE: For the best operating position, keep your back straight, bend only your arms.
  • Page 9: How To Operate The Machine

    5.0 How to operate the machine 5.1 How to start/stop the machine Never start the appliance when the handle is vertical position. Also a start lock construction is designed, in order to avoid mistake operating when the handle is in vertical position. Both hands should be hold on the handle when start the appliance Start the appliances based on following steps, see Figure 4: 1,Pull up the level, adjust the handle to your suitable position.
  • Page 10: Maintenance

    6.0 MAINTENANCE Maintenance must be done by authorized person only Daily maintenance Remove the brush or pad driver from the appliance when the work finished, and save them in the ventilated dry place. The appliance body should be cleaned with dry cloth,, also clean the water container and check the power cord.
  • Page 11: Troubleshooting

    7.0 Troubleshooting Before asking for amendment and examination, please check based on the following points. If the malfunction can not be eliminated, please contact the amendment center or local sale agency. Problem: Possible Cause: Solution: Power cable is lose/falls off Check all the power cable connection Motor operates Power cable is broken...
  • Page 12 - The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items. - The product must be correctly installed and operated in accordance with the instructions contained in this manual. - It must be used solely for domestic purpose - The guarantee will be rendered invalid if the product is re-sold or has been damaged by unauthorized repair.
  • Page 13 Under no circumstances will Prolux Cleaners or the seller be liable for any loss, damage, expense, or consequential damage arising in connection with the use or inability to use these products.
  • Page 14 and Structural Body Electrical Parts Labor Foam Parts Paid Machine Years Years Years Years 3yr Switches 3yr or 700hrs (whichever Battery Walk Behind comes first) on the motor Scrubbers 14” and 18” 3yr Electrical Parts 12mo Pro Rated Lithium Ion Battery 1yr Switches 2yr or 700hrs (whichever Wide Area Vacuum...
  • Page 15 Warranty Coverage Information and warranty voids/exclusions 1. Vacuum(s): (Backpack, Cannister, Wide Area and Upright Vacuums) must be used with a Prolux Vacuum bag to qualify for their applicable motor warranty. If the vacuum is used bagless or with another manufacturer’s vacuum bag, the warranty is 1 year.
  • Page 16 All repair times are subject to the flat rate schedule enclosed in this document. If any operation is not covered in this flat rate schedule, Prolux Cleaners will determine a labor rate when a claim is made based on actual repair times by our own service technicians.
  • Page 17 1. Contact the Prolux Cleaners warranty department with the machine information (Serial number, Date of Purchase etc.) 2. If the battery is deemed to be within the warranty period, Prolux Cleaners will arrange a date to inspect and replace (upon inspection approval) the battery with the OEM.
  • Page 18 Freight damage is not covered under the Prolux Cleaners warranty policy. Replacement Parts: Prolux Cleaners will not honor any warranty claims for parts, labor, or travel if the replacement part was not purchased through Prolux Cleaners. Prolux cleaners reserves the right to review or modify the above document at any time without specific written or prior notice.

This manual is also suitable for:

Fm15p
