Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction

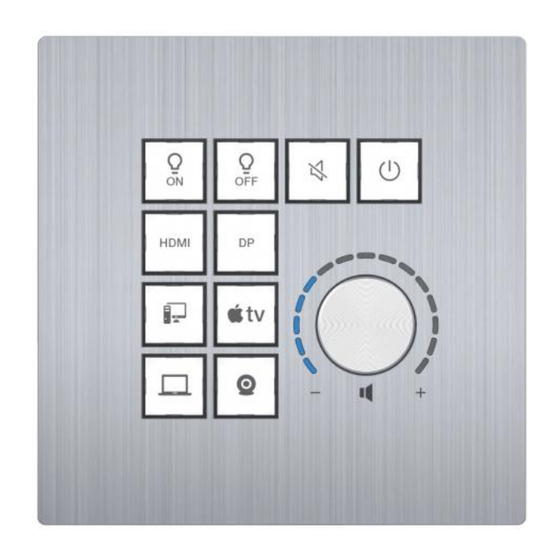

1. Introduction The programmable control panel is designed to be utilized in the sectors of automated office system, multi-media room and smart home. With a program- mable interactive user interface over configuration protocols, the integrated system provides intelligent networking service. The control panel features 10 programmable buttons, 1 programmable knob, 2 two-way serial ports, 1 IR output port, 2 Relay ports, 1 digital I/O port and 1 Ethernet port. -
Page 4: Specifications
4. Specifications Technical ARM Cortex-A53 1.8GHz Operation System Android 9 2GB DDR4 RAM Flash Memory 8GB EMMC Flash Connection 2 × 3-pin Phoenix Connectors, for two-way RS-232 COM1/2 serial data communication 1 × 2-pin Phoenix Connectors, for IR transmitting or one-way RS-232 serial data communication 2 ×... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions HDMI COM 1 COM 2 Name Function Description 10 programmable buttons, which can be flexibly configured according to application requirements. The button icon is 1~10 Buttons made from film, which can be customized and replaced. 1 programmable knob (with button function), which can be Knob flexibly configured according to application requirements. - Page 6 Name Function Description Note: When the control panel is DHCP enabled after power on, the router (if connected to the same network) will assign an IP address to the control panel. If network is disconnected at this time, the control panel won’t be able to pre-set an IP address and its IP address would be 0.0.0.0.
- Page 7 Name Function Description The power input port (2-PIN phoenix connectors), used for connecting with external 24V DC power supply. Reboot: After the device boots up, press and hold the RESET button for more than 1s less than 5s, then release it, the device will reboot.
-
