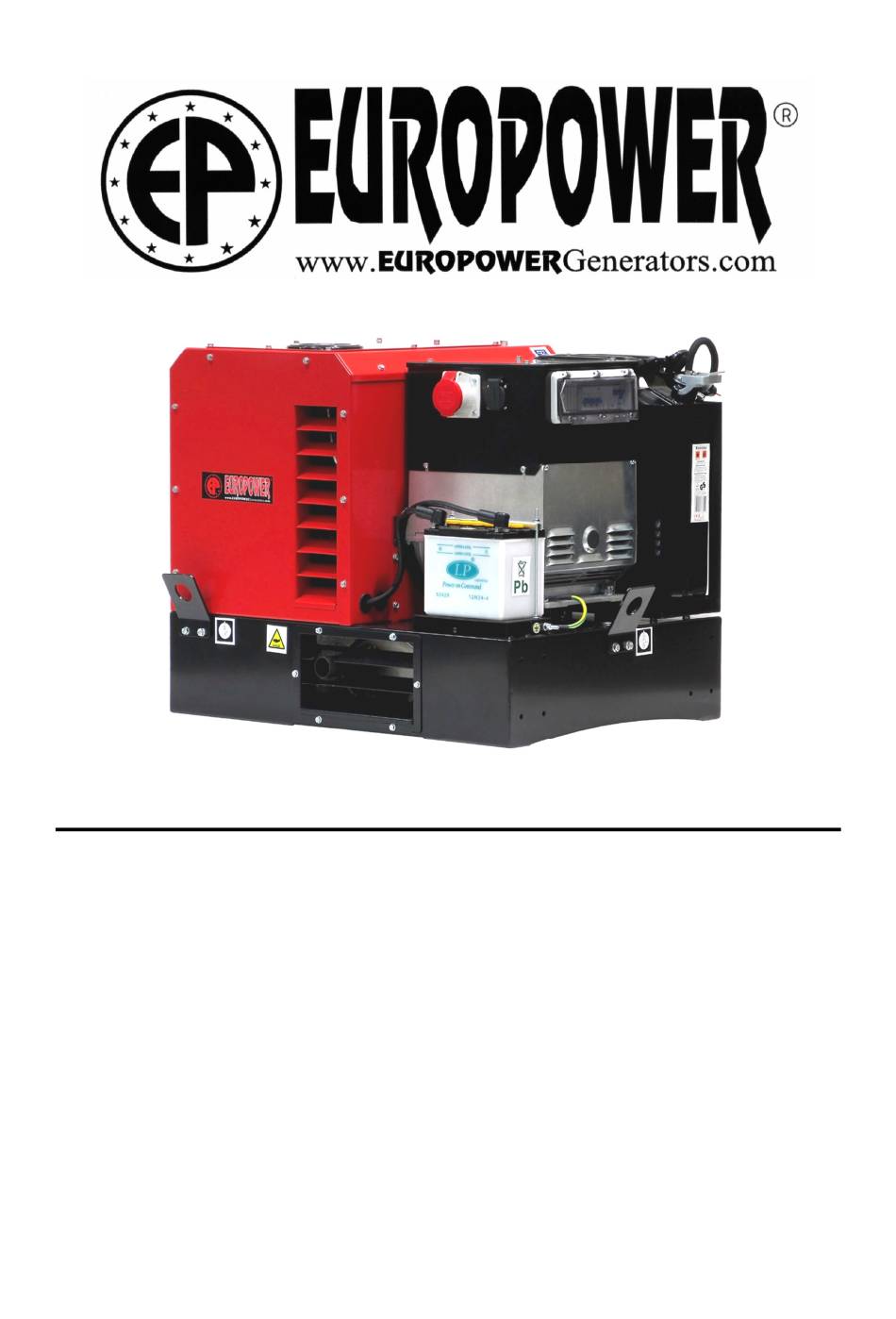

EUROPOWER USER MANUAL www.EUROPOWERGenerators.com Pag.1/12 EPG10000E H/S-EPG12000TE H/S–EPG12000E H/S–EPG15000TE H/S EPG10000E- - - - EPG12000TE EPG10000E EPG12000TE- - - - EPG12000E EPG12000E- - - - EPG15000TE EPG15000TE EPG10000E EPG10000E EPG12000TE EPG12000TE EPG12000E EPG12000E EPG15000TE EPG15000TE Content: 0. INTRODUCTION 1. SAFETY INSTRUCTIONS 2. -
Page 2: Introduction
If you have any questions concerning your generating set please contact EUROPOWER Generators through www.europowergenerators.com. All data in this manual are based on the standard versions of EPG10000E / EPG12000TE / EPG12000E / EPG15000TE with Honda GX630R / GX690R engine. - Page 3 • Be very careful while using a welder on any type of generator. Welders might damage the alternator. Always consult a EUROPOWER specialist first to make sure that the power of the generating set matches the requested power of the welder.
-
Page 4: Ce-Mark, Noise Label And Pictograms
EPG10000E H/S-EPG12000TE H/S–EPG12000E H/S–EPG15000TE H/S 2. CE-MARK, NOISE LABEL AND PICTOGRAMS 2.1. CE-marking and noise label: these are examples of a EUROPOWER type indication plate and a noise label. The type indication plate can be found on every generator. The noise label only appears on generators that comply with the European standard 2000/14/EC. - Page 5 EUROPOWER USER MANUAL www.EUROPOWERGenerators.com Pag.5/12 EPG10000E H/S-EPG12000TE H/S–EPG12000E H/S–EPG15000TE H/S (22) WARNING! – Hot surface. Can cause burns. Hot engine and hot exhaust system can cause serious and even lethal injuries. Never work on the generating set before it has sufficiently cooled down.
-
Page 6: Short Description Of The Generating Set
EUROPOWER USER MANUAL www.EUROPOWERGenerators.com Pag.6/12 EPG10000E H/S-EPG12000TE H/S–EPG12000E H/S–EPG15000TE H/S (28) WARNING! – Consult the instruction and maintenance manual of the engine and the alternator before carrying out maintenance. Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously hurt or killed. -
Page 7: Description Of The Control Panel
Hour counter Low oil level LED Choke knob 30A fuse (12V circuit protection - inside the engine control panel) Throttle lever (only on EPG10000E / EPG12000TE) The alternator control panel contains: Thermal-magnetic breaker 2 sockets 5. USE OF THE GENERATING SET 5.1 Starting the engine:... - Page 8 Open the fuel cock. OPEN CLOSED pull the choke button when the engine is cold. move the throttle lever to the MAX. position (only for EPG10000E / EPG12000TE) start the engine with the starting key close the choke slowly after a few seconds let the engine warm up for a few minutes before charging connect the users.
- Page 9 Consult your EUROPOWER dealer or EUROPOWER Generators. 7. PARTS LIST This parts list is based on the standard versions of the EPG10000E – EPG12000TE – EPG12000E - EPG15000TE. For generating sets with options (e.g. insulation protection, remote control, automatic start/stop system,…) there can be small differences! Please contact your dealer for info on parts for these options.
- Page 10 181003010 thermal-magn. protection 3-poles 10A, C- charac. (EPG12000TE) 181003013 thermal-magn. prot. 3-poles 13A, C- character. (EPG15000TE) 181030332 CEE socket 3-poles 32A (EPG10000E H/S - EPG12000E H/S) 181030516 CEE socket 5-poles 16A (EPG12000TE H/S- EPG15000TE H/S) 198315009 control panel plate 198315010 top cover control panel 7.3.
- Page 11 To be asked at your EUROPOWER dealer. 10. MAINTENANCE 10.1. Alternator: EPG10000E-EPG12000E: a periodic check of the alternator is not necessary. A visual control of the different alternator parts at every general generator maintenance will do. Please also check the state of the rotor bearing.
- Page 12 EUROPOWER USER MANUAL www.EUROPOWERGenerators.com Pag.12/12 EPG10000E H/S-EPG12000TE H/S–EPG12000E H/S–EPG15000TE H/S As of the moment you mount the oil drain hose onto the engine base, a valve will open and the oil will run into the oil drain hose. Remove the plastic sealing cap on the extremity of the oil drain hose.
- Page 15 REVISED ON: DEBUR AND BREAK SHARP SENT ON: EDGES DIRECTORY: TITLE: OD.NR.: DESIGN: INBOUWMATEN - DIMENSIONS GÉNÉRALES - DRAWN: CUSTOMER: MAIN DIMENSIONS - EINBAU- 950001208 ART.NR.: REVISED: REV.NR.: SCALE:1:10 ABMESSUNGEN EPG12000-15000TE HS EUROPOWER Generators DP/SH APPV'D: SHEET 1 OF 4...
- Page 16 Maten in mm / Dimensions en mm / Dimensions in mm / Maße in mm DEBUR AND BREAK SHARP SENT ON: EDGES DIRECTORY: TITLE: OD.NR.: DESIGN: INBOUWMATEN - DIMENSIONS GÉNÉRALES - DRAWN: CUSTOMER: MAIN DIMENSIONS - EINBAU- 950001208 ART.NR.: REVISED: REV.NR.: SCALE:1:8 ABMESSUNGEN EPG12000-15000TE HS EUROPOWER Generators DP/SH APPV'D: SHEET 2 OF 4...
- Page 17 Maten in mm / Dimensions en mm / Dimensions in mm / Maße in mm DEBUR AND BREAK SHARP SENT ON: EDGES DIRECTORY: TITLE: OD.NR.: DESIGN: INBOUWMATEN - DIMENSIONS GÉNÉRALES - DRAWN: CUSTOMER: MAIN DIMENSIONS - EINBAU- 950001208 ART.NR.: REVISED: REV.NR.: SCALE:1:8 ABMESSUNGEN EPG12000-15000TE HS EUROPOWER Generators DP/SH APPV'D: SHEET 3 OF 4...
- Page 18 Maten in mm / Dimensions en mm / Dimensions in mm / Maße in mm DEBUR AND BREAK SHARP SENT ON: EDGES DIRECTORY: TITLE: OD.NR.: DESIGN: INBOUWMATEN - DIMENSIONS GÉNÉRALES - DRAWN: CUSTOMER: MAIN DIMENSIONS - EINBAU- 950001208 ART.NR.: REVISED: REV.NR.: SCALE:1:9 ABMESSUNGEN EPG12000-15000TE HS EUROPOWER Generators DP/SH APPV'D: SHEET 4 OF 4...
