INSTRUCTION & USER MANUAL
Please read these instructions carefully before installing and using the product!
1. PRODUCT INTRODUCTION

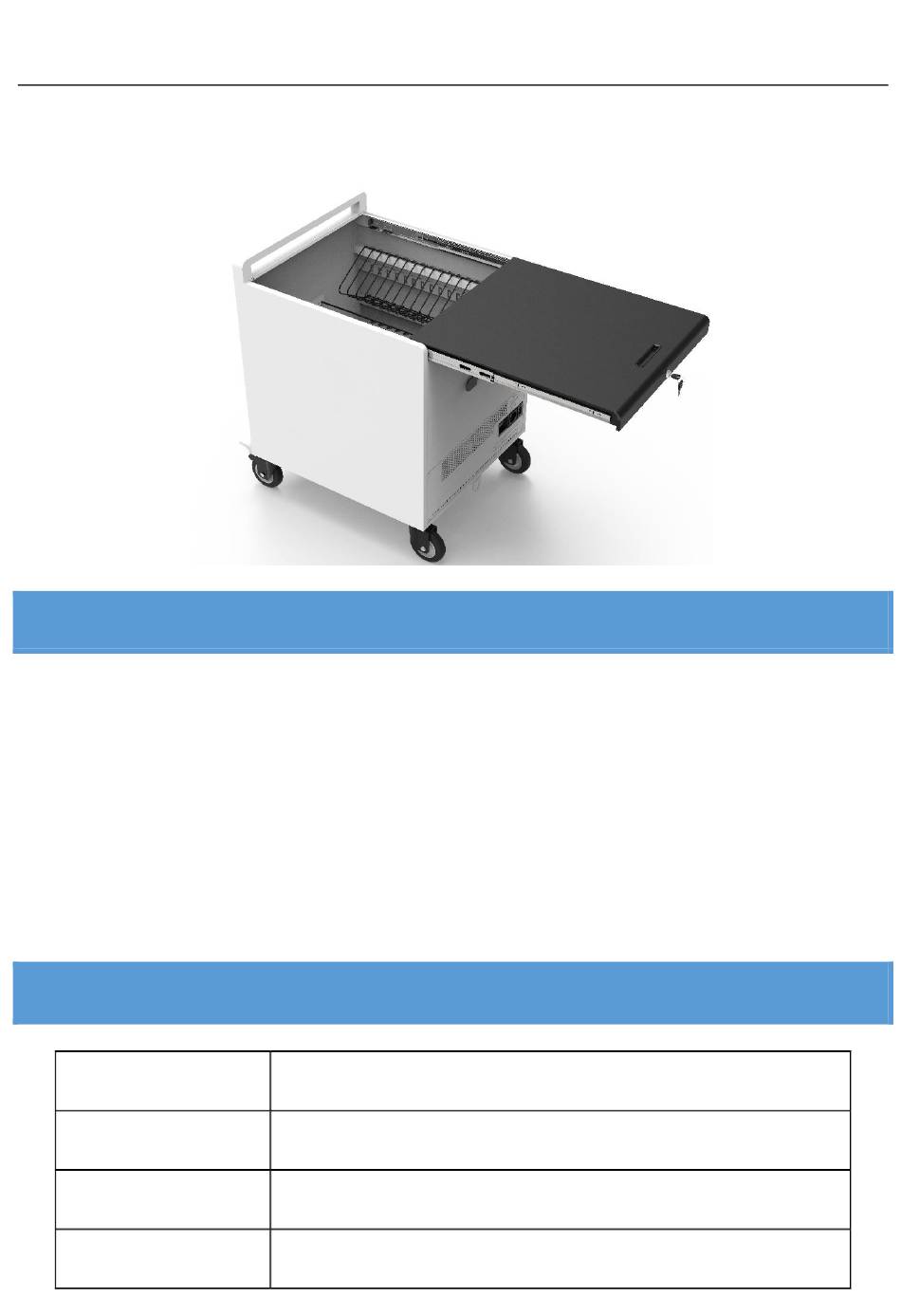

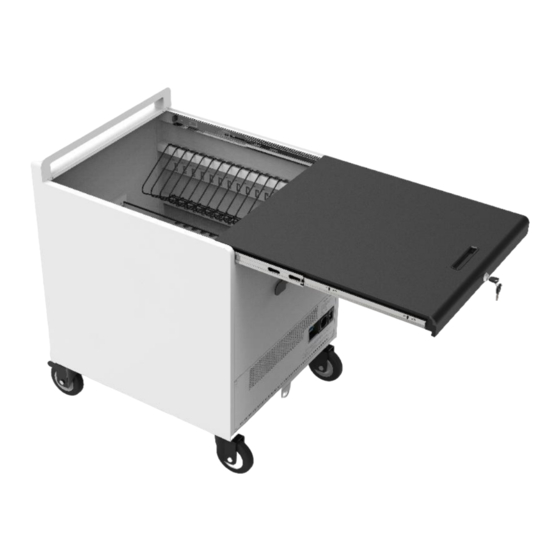

Multi-function 32 bay charging trolley is designed to charge and store Chromebooks, laptops, tablets,
1.1
iPad devices etc. It is predominantly used in schools, airports, railway stations, hotels, bars, residential
establishments and so on, where a great number of electronical devices need to be charged and stored
simultaneously.
PC06B-32S is equipped with Mean well
1.2
This product has residual current protection, over current protection and short circuit protection etc.
1.3
This product has soft start system, to reduce startup current surge and reduce impact on the grid.
1.4
Cooling fan and vents on the housing together, significantly reduce the device temperature during charging.
1.5
Lockable 5" caster for easy mobility.
1.6
2. SPECIFICATION
Model
Input
Standard
Protection
power supply.
®
230-240V AC 50/60Hz 16A
IEC62368.1, EN62368.1
over current, short circuit, residual current protection, over voltage
PC06B-32S
~ 1 ~
Advertisement
Related Manuals for IVOL IVOLTOP 32
Summary of Contents for IVOL IVOLTOP 32
- Page 1 INSTRUCTION & USER MANUAL ~ 1 ~ Please read these instructions carefully before installing and using the product! 1. PRODUCT INTRODUCTION Multi-function 32 bay charging trolley is designed to charge and store Chromebooks, laptops, tablets, iPad devices etc. It is predominantly used in schools, airports, railway stations, hotels, bars, residential establishments and so on, where a great number of electronical devices need to be charged and stored simultaneously.
- Page 2 INSTRUCTION & USER MANUAL ~ 2 ~ Output Each outlet: 220-240V AC 50/60Hz, 0.65A , 15.2A max Bay Dimensions(mm） 32 (L) 420(H) 278(W) mm Product Dimension(mm） 700(L) 895(H) 630(W)mm Net Weight(kg) Working temperature：0ºC - 40ºC；Storage：-20ºC - 50ºC Working Environment Working humidity：10% - 95% 3.
- Page 3 INSTRUCTION & USER MANUAL ~ 3 ~ 1. RCBO breaker 5. Compartment for power 2. AC socket adapter 3. AC inlet 6. Power strip 4. Cooling vents Startup button...
-
Page 4: Installation
INSTRUCTION & USER MANUAL ~ 2 ~ INSTALLATION Keep the trolley upright, with the wheels on the ground. The equipment is to be secured to the building structure before operation. Please Consult with a structural engineer or suitable professional for installation. Unit must be secured to floor and/or anchored to the wall in compliance with local architectural requirements. - Page 5 INSTRUCTION & USER MANUAL ~ 2 ~ 2. Remove the laptops/ Chromebooks rack. 3. Take out the bottom plates of devices compartment. ·...
- Page 6 INSTRUCTION & USER MANUAL ~ 3 ~ 4. Install power adapters. 5. Fix the cable of power adapter. 6. After all power adaptors are installed, install the bottom plates, racks and metal strips back. 7. Place laptops/Chromebooks into each slot of rack, plug in the cables. 8.
-
Page 7: Safety Warning
INSTRUCTION & USER MANUAL ~ 2 ~ In other words, before pressing the startup button, make sure the interval from last working period is longer than 10 minutes. 6. SAFETY WARNING Wall socket must have a protective ground wire; Please don’t frequently switch on/off the product, the interval should be 10 minutes or more; Please don’t disassemble, modify the product, please don’t use it in high temperature and humid environment or in water;...
