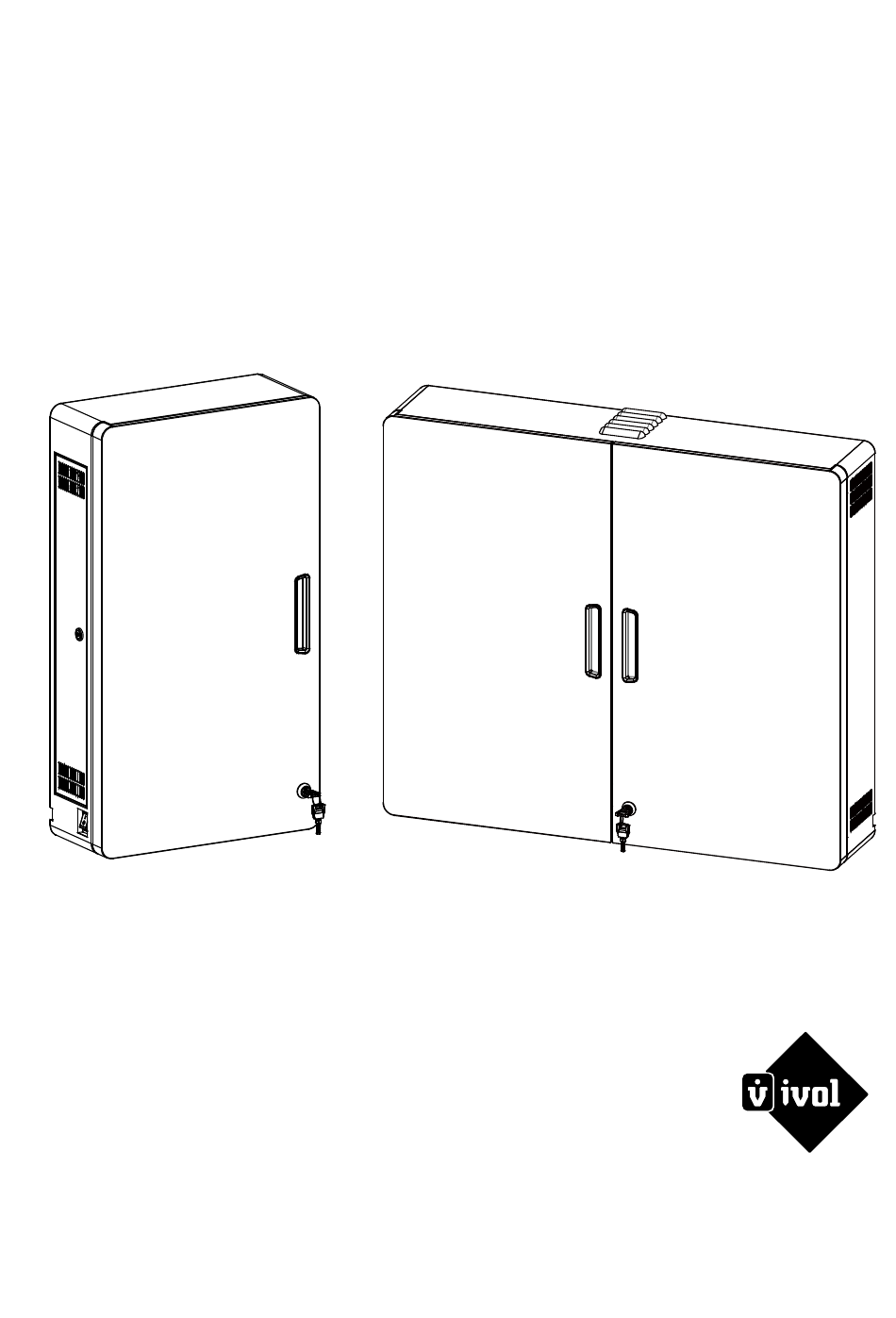

- Page 1 User’s Manual 8/16 Port Wall Charging Cabinet 16 Port 8 Port IVOL Habraken 2327 5507TK, Veldhoven The Netherlands Tel: +31 (0)40-2542823 info@ivol.nl...
- Page 2 Hazard Symbols Symbol Signal Word Level of Hazard Review A Note indicates important information that These symbols alert users of a safety NOTE helps you make better use of this product. condition that demands attention. All users should be able to recognize and A CAUTION indicates either potential damage understand the significance of the foll to hardware or loss of data and tells you how...
-
Page 3: Tools Needed
Components 1X (Only For For 8 Port 1X (Only For 16 Port) 8 Port) Switzerland For 16 Port For 8 Port For 16 Port Tools Needed WOOD STUD CONCRETE HOLLOW WALL Φ3/16”(5mm) Φ3/8”(10mm) Φ3/8”(10mm) Remove Internal Packaging TEAM LIFT For Your Safety! -
Page 4: Mounting Considerations
Mounting Considerations 62”-68 8 Port Individual tablet weight: Individual dimensions (including cover): 62”-68 ≤12" （ 305mm ≤ 3 lbs. (1.36kg) ≤8.6" （ 220mm ） ≤1" 16 Port （ 25.4mm) - Page 5 WOOD STUD CONCRETE HOLLOW WALL 5/8“-1.2“ ≤3/8“ (16-30mm) (≤10mm) ≥4“ 4“ (≥102mm) (102mm) 2“ (51mm) Wood Stud Hollow Wall For 8 Port . Place template on wall lining up the . Find stud and draw a mark, chosen hole 62”-68”(158-173cm) from floor Hole Op on 1 62-68”...
- Page 6 Wood Stud Hollow Wall For 8 Port . Level and secure template to wall Hole Op on 2 tape . Use suitable drill bit when drilling holes, refer to below picture . Draw marks through holes of template, Then take off template. Φ3/16”(5mm) Φ3/8”(10mm)
- Page 7 Wood Stud Hollow Wall For 8 Port Note: Use the Φ3/16”(5mm) drill bit when drilling directly into the wood stud. Use the Φ3/8”(10mm)drill bit when drilling into the hollow wall for the anchors. Use hollow wall anchors where ever a screw does not get inserted directly into the wood stud Wood Stud 1.2mm ≥60mm...
- Page 8 Wood Stud Hollow Wall For 16 Port . Find stud and draw a mark, . Put template on wall lining up 62”-68”(158-173cm) from floor. the chosen holes 62-68” (158-173mm) Hole Op on 1 . Level and secure template to wall tape Hole Op on 2...
- Page 9 Wood Stud Hollow Wall For 16 Port . Draw marks through holes of template, . Use suitable drill bit when drilling then take off template. holes, refer to below picture. Φ3/16”(5mm) Φ3/8”(10mm) .Insert anchors to wall then tighten screws. . Drill 7 holes at the top. Drill 5 holes at the bottom This two holes are reserved for tightening screws from inside cabinet.
- Page 10 Wood Stud Hollow Wall For 16 Port Note: Use the Φ3/16”(5mm) drill bit when drilling directly into the wood stud. Use the Φ3/8”(10mm)drill bit when drilling into the hollow wall for the anchors. Use hollow wall anchors where ever a screw does not get inserted directly into the wood stud spacer Wood Stud 1.2mm...
- Page 11 CONCRETE For 8 Port .Draw a mark on wall 62”-68”(158-173cm) from floor. .Level and secure template to wall. tape 62-68” (158-173mm) .Draw marks through template, . 1 drill 5 holes at top. then take off template. 2 drill 4 holes at bottom. ≥60mm Mounting holes must be at least 2-3/8”(60mm) Φ3/8”(10mm)
- Page 12 CONCRETE For 8 Port Insert anchors into holes. 1.2mm Anchors that are not fully set in solid concrete will not support the applied load resulting in an unstable, unsafe condition which could lead to personal injury and /or property damage. Consult a construction professional if you have any doubt about what this means in regard to your particular situation.
- Page 13 CONCRETE For 16 Port .Draw a mark on the wall .Level and secure template to wall. 62”-68”(158-173cm) from floor. tape 62-68” (158-173mm) .Draw marks through template, . 1 Drill 7 holes at top. then take off template. 2 Drill 5 holes at bottom. ≥60mm Mounting holes must be at least 2-3/8”(60mm) Φ3/8”(10mm)
- Page 14 CONCRETE For 16 Port Insert anchors into holes. 1.2mm Anchors that are not fully set in solid concrete will not support the applied load resulting in an unstable, unsafe condition which could lead to personal injury and /or property damage. Consult a construction professional if you have any doubt about what this means in regard to your particular situation.
- Page 15 Plug power cable into power inlet...
- Page 17 Hang wall cabinet onto screws. Warning: 2 people are required to lift this product. Secure cabinet to wall by tightening Unlock door by turning key, screw through reserved hole. Push door to the left to open.
- Page 18 Warning: 2 people are required to lift this product. Unlock doors by turning the key, push the doors in arrow pointed directions to open.
-
Page 19: Connecting Usb Cables
Sesure cabinet to wall by tightening 2 screws through the reserved 2 holes. Connecting USB cables Insert USB cables into USB ports, Use the key to open the side-door route cables through access holes. - Page 20 8 ports cabinet POWER SWITCH Turn on power switch Plug cables into tablets 16 ports cabinet Use key to open the door in the center.
- Page 21 Insert USB cables into USB ports, then route cables through access holes. POWER SWITCH Connect USB cables with tablets, then turn on power switch...
-
Page 22: Specifications
Tablet charging Plug power cable into wall socket to start charging. Specifications Dimensions Power system ” ” ” ” ” ” Weight Rated weight capacity Environmental Max. tablet size Cooling/ventilation Compatibility Shipping Weight Shipping dimensions ” ” ” ” ” ”... -
Page 23: Cleaning And Maintenance
Cleaning and Maintenance Equipment Electric Safety Warning: Electrical cables can be hazardous. Misuse can result in fire or death by electrical shock. Keep this product away from water. Caution: Use Safety Warning: Only adults should use this product.
