Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com

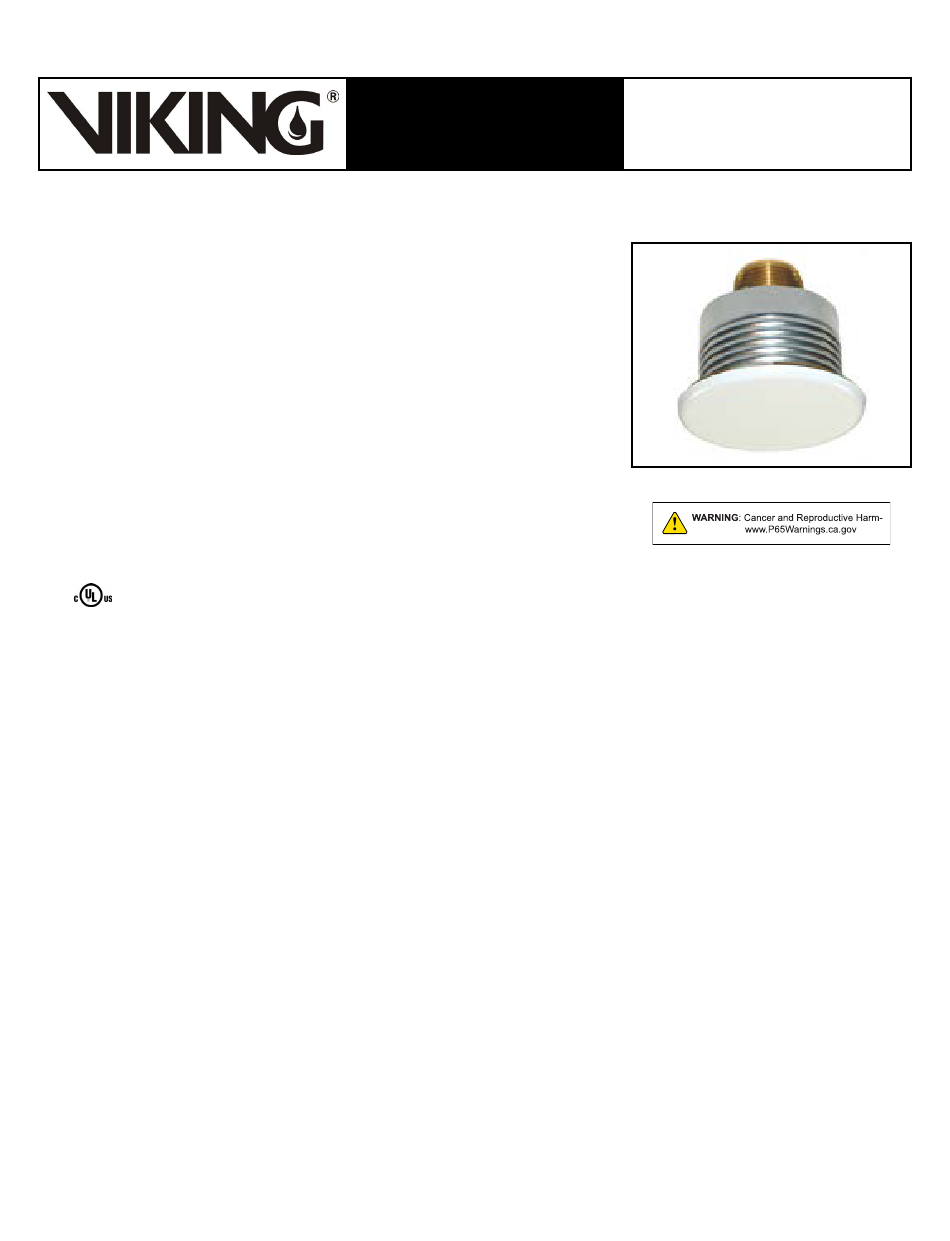

1. DESCRIPTION
Viking Mirage
Quick Response Extended Coverage Light Hazard ELO Concealed
®
Pendent Sprinkler VK636 is a thermosensitive solder link spray sprinkler designed
for installation on concealed pipe systems where the appearance of a smooth
ceiling is desired. The 11.2K sprinkler meets Light Hazard density requirements at
lower pressures than 5.6K or 8.0K sprinklers. The fusible operating element and
special deflector characteristics meet the challenges of quick response extended
coverage standards.
The sprinkler is pre-assembled with a threaded adapter for installation with a low-
profile cover assembly that provides up to ½" (13 mm) of vertical adjustment. The
two-piece design allows installation and testing of the sprinkler prior to installation
of the cover plate. The "push-on" and "thread-on" designs of the concealed cover
plate assemblies allow easy installation of the cover plate after the system has
been tested and the ceiling finish has been applied. The cover assembly can be
removed and reinstalled, allowing temporary removal of ceiling panels without
taking the sprinkler system out of service or removing the sprinkler.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
Refer to the Approval Chart and Design Criteria for Listing requirements that must be followed.
3. TECHNICAL DATA
Specifications:
Available since 2010.
Minimum Operating Pressure: 7 psi (0.5 bar).
Maximum Working Pressure: 175 psi (12 bar). Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 3/4" NPT
Nominal K-Factor: 11.2 U.S. (161.3 metric*)
* Metric K-factor measurement is shown in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Material Standards:
Sprinkler Body: Brass UNS-C84400
Deflector: Brass UNS-C23000 or Bronze UNS-C51000
Deflector Pins: Stainless Steel
Fusible Element Assembly: Nickel Alloy and Eutectic Solder
Lever and Lever Bar: Stainless Steel
Seat: Bronze UNS-C31400/UNS-C31600
Deflector Carrier: Brass UNS-C84400 or QM Brass
Screw: Brass UNS-C36000
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Cover Adapter: Cold Rolled Steel UNS-G10080, Finish: Clear Chromate over Zinc Plating
Cover Assembly Materials:
Cover: Brass UNS-C26800
Base: Cold Rolled Steel UNS-G10060/G10080, Finish: Copper Flash
Springs: Nickel Alloy
Solder: Non-eutectic
Ordering Information: Refer to Tables 1 and 2 (Also refer to the current Viking price list.)
4. INSTALLATION
Refer to appropriate NFPA Installation Standards.
Form No. F_121009 Rev 02
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
September 2023
MIRAGE
QR EXTENDED
®
COVERAGE LIGHT HAZARD
ELO CONCEALED PENDENT
SPRINKLER VK636 (K11.2)
For Light Hazard Occupancies Only
Replaces Form No. F_121009 Rev 01
(Updated 135F cover plate temp. to 139F.)
Page 1 of 5
