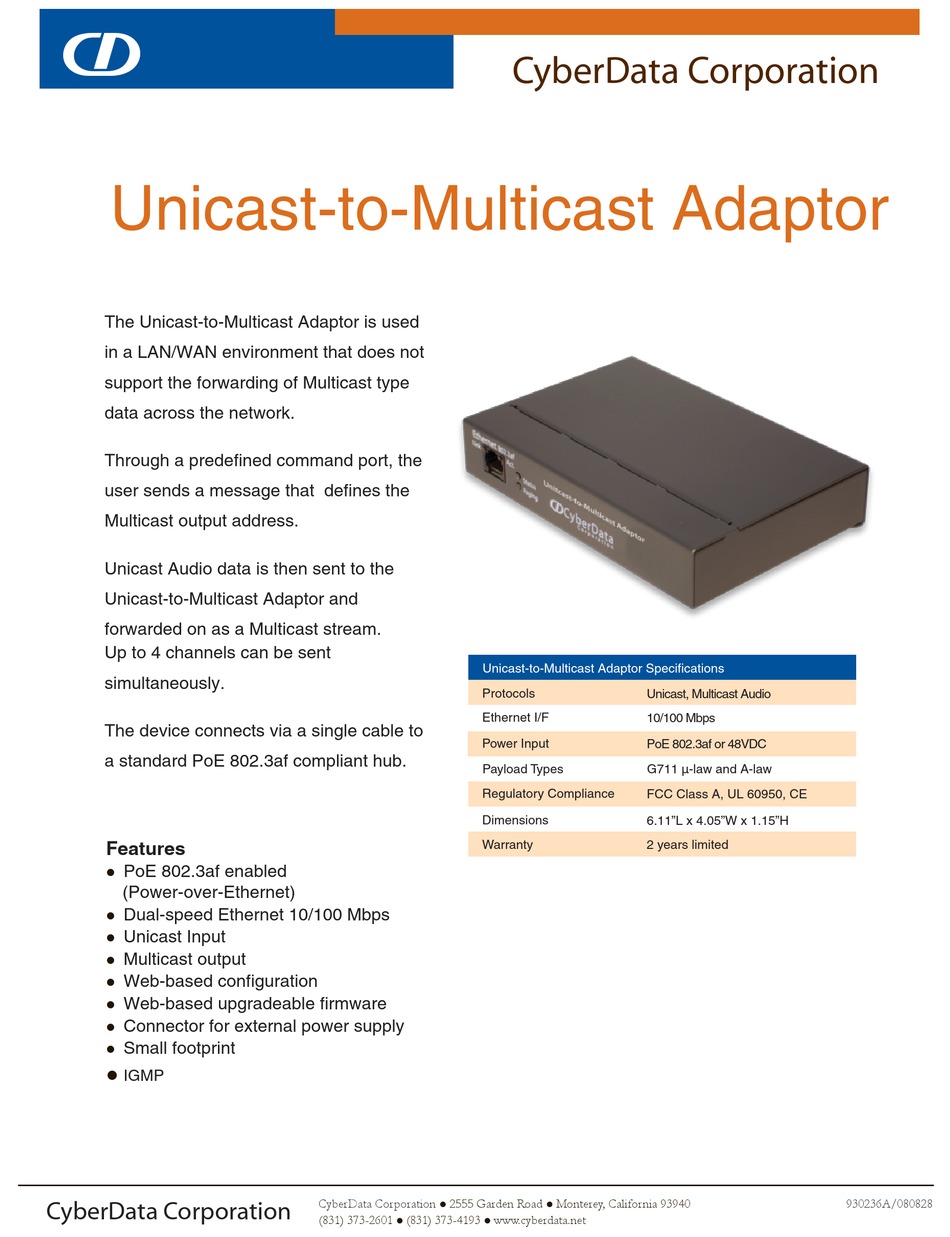

CyberData Unicast-to-Multicast Adaptor Specification Sheet

Unicast-to-Multicast Adaptor
The Unicast-to-Multicast Adaptor is used
in a LAN/WAN environment that does not
support the forwarding of Multicast type
data across the network.
Through a predefined command port, the
user sends a message that defines the
Multicast output address.
Unicast Audio data is then sent to the
Unicast-to-Multicast Adaptor and
forwarded on as a Multicast stream.
Up to 4 channels can be sent
simultaneously.
The device connects via a single cable to
a standard PoE 802.3af compliant hub.
Features
PoE 802.3af enabled

(Power-over-Ethernet)
Dual-speed Ethernet 10/100 Mbps

Unicast Input

Multicast output

Web-based configuration

Web-based upgradeable firmware

Connector for external power supply

Small footprint

IGMP

CyberData Corporation
Unicast-to-Multicast Adaptor Specifications
Protocols
Ethernet I/F
Power Input
Payload Types
Regulatory Compliance
Dimensions
Warranty
CyberData Corporation 2555 Garden Road

(831) 373-2601 (831) 373-4193 www.cyberdata.net
 
CyberData Corporation
Unicast, Multicast Audio
10/100 Mbps
PoE 802.3af or 48VDC
G711 µ-law and A-law
FCC Class A, UL 60950, CE
6.11"L x 4.05"W x 1.15"H
2 years limited
Monterey, California 93940

930236A/080828
