- Page 1 Conventional fire alarm sounder for outdoor use SPP-111 Firmware version 1.00 spp-111_en 04/24 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 IMPORTANT The device should be installed by qualified personnel. Prior to installation, please read carefully this manual in order to avoid mistakes that can lead to malfunction or even damage to the equipment. Disconnect power before making any electrical connections. Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty.

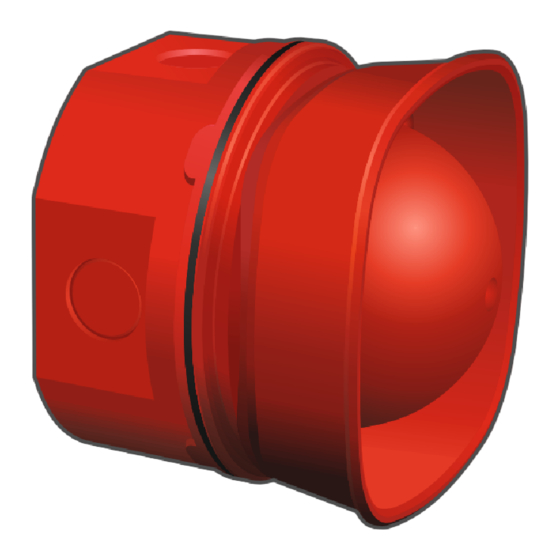

- Page 3 The SPP-111 outdoor sounder is used for acoustic alarm signaling. It is designed to work with the SATEL fire alarm control panels (conventional: CSP-104, CSP-108, CSP-204, CSP-208; addressable: ACSP-402). 1. Features • Acoustic signaling by means of piezoelectric transducer. • 32 selectable tones.
- Page 4 SPP-111 SATEL...
- Page 5 SATEL SPP-111 9. Connect the zone circuit wires to the sounder (Fig. 6). If the sounder is connected to the zone circuit at the end of line, screw a 10 kΩ resistor to its terminals. You can connect the cable shields to the E / terminals (using a shielded cable is not required).
- Page 6 SPP-111 SATEL 2.1 Configuring the sounder settings Use the DIP switches on the electronics board (Fig. 9) to configure the sounder settings. 2.1.1 Selecting the tone To select the tone, use the switches 1-5, marked as S1-S5 on the electronics board.
- Page 7 SATEL SPP-111 DIP switch Acoustic signaling 12345 Frequency Hz Description 00001 0.28 Hz (1.8 s) 10001 0.05 Hz (13 s / 6.5 s) 01001 Continuous 11001 554 & 440 0.5 Hz (1 s) 1 Hz (500 ms – 500 ms) 00101 4 Hz (150 ms –...
- Page 8 SPP-111 SATEL Angle-dependent [°] minimum sound level [dBA] Tone / supply voltage 15° 45° 75° 105° 135° 165° 13 / 28 VDC 73.9 86.7 91.1 90.9 85.3 77.2 14 / 18 VDC 73.1 86.2 90.5 90.2 84.8 76.5 14 / 28 VDC 73.4...
- Page 9 The fire alarm system elements require regular maintenance. The periodic checks of the SPP-111 sounder should be carried out at least every 6 months. In spaces where working conditions are difficult (e.g. dust, aggressive environment that may cause corrosion, etc.), the periodic checks should be carried out more often.
- Page 10 SPP-111 SATEL The SPP-111 fire alarm sounder conforms to the essential requirements of the EU Regulations and Directives: CPR 305/2011 Regulation of the European Parliament and of the Council of 9 March 2011 laying down harmonized conditions for the marketing of construction products and repealing the Council Directive 89/106/EEC on construction products;...
