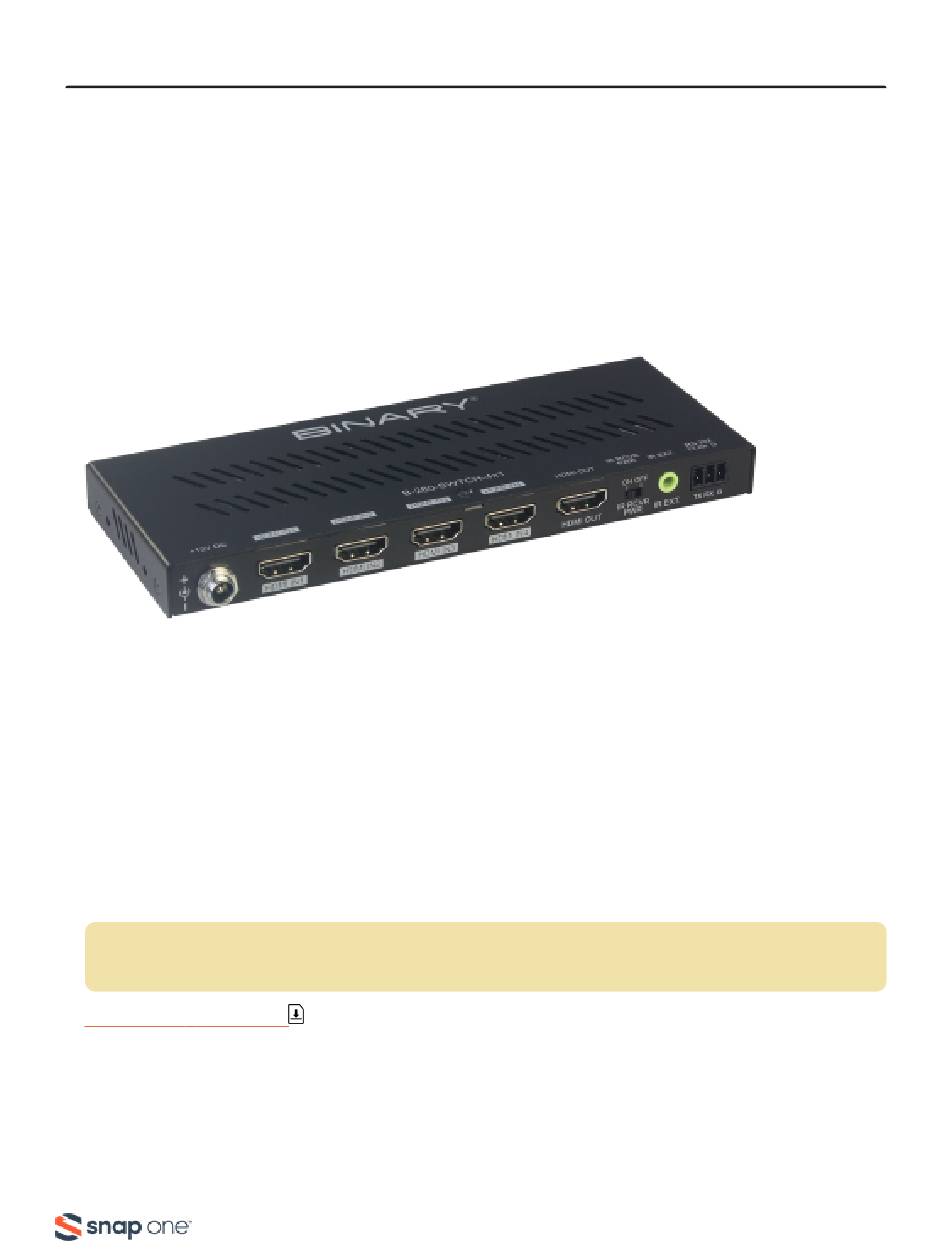

B-260-SWTCH-4x1
18Gbps HDMI 4x1 Switcher
Install Guide
Welcome to Binary™
This product is engineered to provide years of exceptional reliability. We appreciate
your business, and we stand committed to providing our customers with the highest
degree of quality and service in the industry. This 18Gbps HDMI 4x1 Switcheris
compatible with HDMI 2.0/ HDCP 2.2 and supports video resolutions up to 4K@60Hz 4:4:4
8bit.
Connect the HDMI switch to a surge protector to extend the life of the
Pro Tip:
-_
product.
Download a PDF copy
1
Advertisement
Table of Contents
Related Manuals for Snap One B-260-SWTCH-4x1
Summary of Contents for Snap One B-260-SWTCH-4x1
- Page 1 B-260-SWTCH-4x1 18Gbps HDMI 4x1 Switcher Install Guide Welcome to Binary™ This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry. This 18Gbps HDMI 4x1 Switcheris compatible with HDMI 2.0/ HDCP 2.2 and supports video resolutions up to 4K@60Hz 4:4:4...
- Page 2 Features HDMI 2.0 and HDCP 2.2 compliant Supports video resolutions up to 4K2K@50/60Hz 4:4:4 18Gbps video bandwidth Supports 3D and HDR format video Supported HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD ...
- Page 3 away from children. Battery can cause severe or fatal injuries in 2 hours or less if swallowed or placed inside any part of the body. Seek immediate medical attention if it is suspected that a coin/button battery has been swallowed or placed inside any part of the body.
-
Page 4: Operation And Functions
Operation and Functions Front Panel A. Power LED — Glows blue when the switch is powered on B. Input LEDs — Glows blue when the input number is selected C. Output LED — Glows blue when the HDMI out port is connected to a display D. - Page 5 F. Thread-locking power connector — Connect to the included 12V DC, 2A power supply.
-
Page 6: Installation
Installation 1. Connect an HDMI cable from the source to the HDMI inputs of the switch. 2. Connect an HDMI cable from the display to the switch's HDMI out port. 3. Connect any IR receivers or control systems to the switch. 4. - Page 7 IR Control Power — Press to power the switch on or set it to standby mode Prev — Press to select the previous source Next — Press to select the next source Input 1/2/3/4 — Press the desired input number to select the connected source IR Receiver Cable Pinout...
-
Page 8: Communication Format
RS-232 Control The switcher can be controlled using RS-232 commands from a PC or control system. Use the included three-pin phoenix connector to connect the control device to the switcher. Communication Format Baud rate: 9600 bps Data bits: 8 bit ... - Page 9 Function Commmand Paramter Description Return IN4<CR> Switch to the next SWITCH NEXT<CR> input IN1<CR> Switch to the SWITCH PREV<CR> previous input IN1<CR> AUTOSWITCH Autoswitch is on ON<CR> ON<CR> Set autoswitch AUTOSWITCH AUTOSWITCH Autoswitch is off OFF<CR> OFF<CR> Query Get autoswitch autoswitch <CR>...
-
Page 10: Specifications
Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 Video Bandwidth 594MHz/18Gbps 480i ~1080p50/60Hz, Video Resolution 4Kx2K@24/30Hz, 4K2K@60Hz RGB, YCbCr 4:4:4 Color Space / 4:2:2, YUV 4:2:0 LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, HDMI Audio Formats DTS-96/24, DTS High Res, DTS-HD Master Audio, HDR Support... - Page 11 Technical 4× HDMI IN Input [Type A, 19-pin female] 1× HDMI OUT Output [Type A, 19-pin female] 1× RS-232 [3pin- 3.5mm phoenix connector] Control 1× IR EXT [3.5mm stereo mini- jack] Mechanical Housing Metal enclosure Color Black 147mm (5.79") × Dimensions (W ×...
- Page 12 Technical 0°C ~ 40°C / 32°F Operating Temperature ~ 104°F -20°C ~ 60°C / - Storage Temperature 4°F ~ 140°F 20~90% RH (non- Relative Humidity condensing)
- Page 13 2024, Snap One, LLC. All rights reserved. Snap One and its respective logos are registered trademarks or trademarks of Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, Araknis Networks, BakPak, Binary,...
