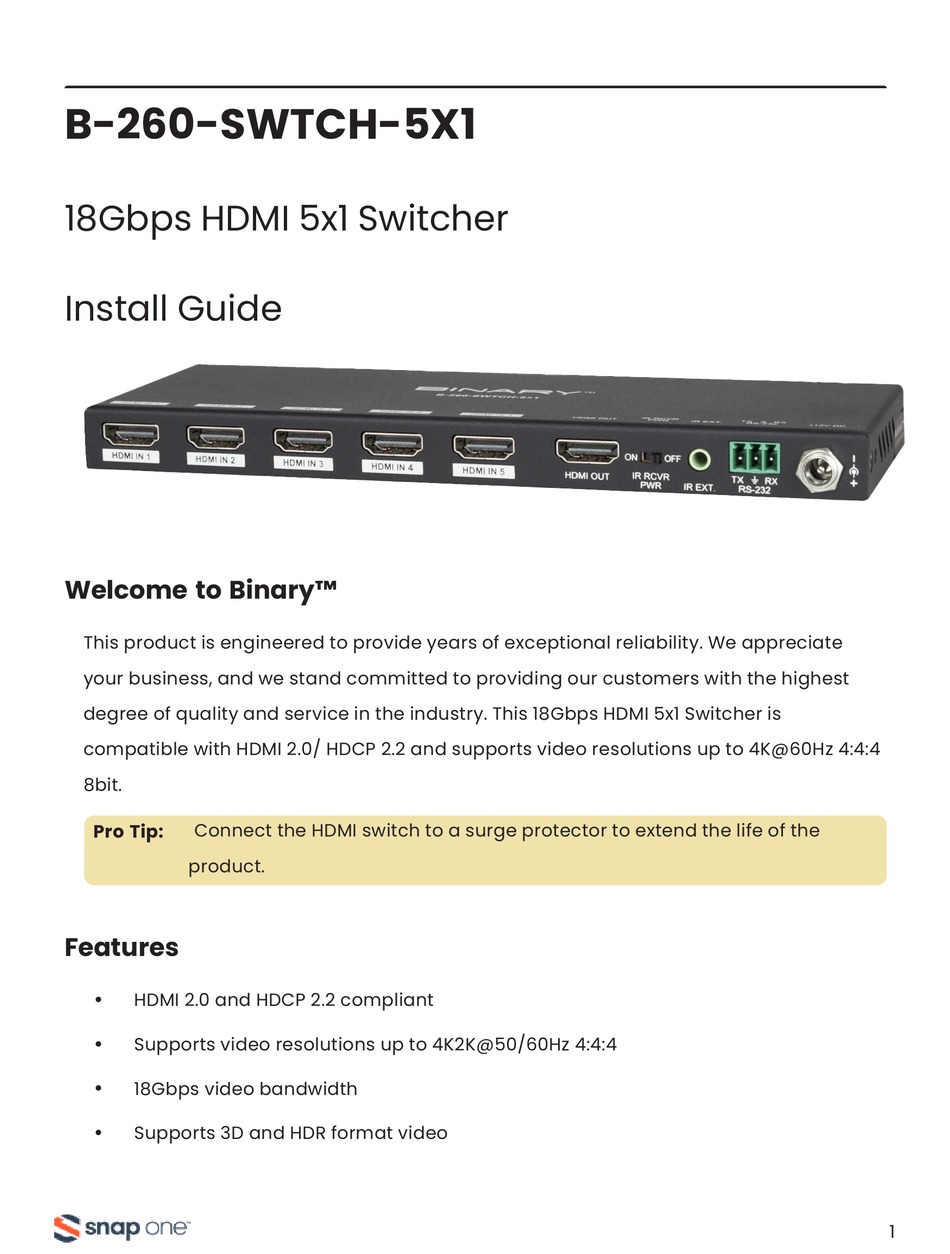

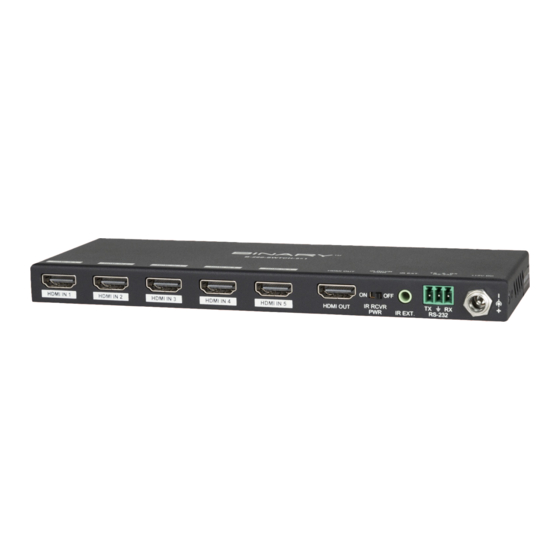

B-260-SWTCH-5X1
18Gbps HDMI 5x1 Switcher
Install Guide
Welcome to Binary™
This product is engineered to provide years of exceptional reliability. We appreciate
your business, and we stand committed to providing our customers with the highest
degree of quality and service in the industry. This 18Gbps HDMI 5x1 Switcher is
compatible with HDMI 2.0/ HDCP 2.2 and supports video resolutions up to 4K@60Hz 4:4:4
8bit.
Connect the HDMI switch to a surge protector to extend the life of the
Pro Tip:
-_
product.
Features

HDMI 2.0 and HDCP 2.2 compliant
l

Supports video resolutions up to 4K2K@50/60Hz 4:4:4
l

18Gbps video bandwidth
l

Supports 3D and HDR format video
l
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-260-SWTCH-5X1 and is the answer not in the manual?

Questions and answers

Related Manuals for Snap One B-260-SWTCH-5X1

Summary of Contents for Snap One B-260-SWTCH-5X1

  • Page 1 B-260-SWTCH-5X1 18Gbps HDMI 5x1 Switcher Install Guide Welcome to Binary™ This product is engineered to provide years of exceptional reliability. We appreciate your business, and we stand committed to providing our customers with the highest degree of quality and service in the industry. This 18Gbps HDMI 5x1 Switcher is compatible with HDMI 2.0/ HDCP 2.2 and supports video resolutions up to 4K@60Hz 4:4:4...
  • Page 2   Supported HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD   Has an auto/manual switching mode for the input source   Supports CEC control   Flexible control via front panel buttons, IR remote or RS-232 commands  ...

  • Page 4: Operation And Functions

    Operation and Functions Front Panel  A. Power LED — Glows blue when the switch is powered on  B. IR window — Receives IR signals from IR emitting devices  C. Input LEDs — Glows blue when the input number is selected  D.
  • Page 5  E. RS-232 serial port — RS-232 input to connect to the output of a control system  F. Thread-locking power connector — Connect to the included 12V DC, 2A power supply.

  • Page 6: Installation

    Installation  1. Connect an HDMI cable from the source to the HDMI inputs of the switch.  2. Connect an HDMI cable from the display to the switch's HDMI out port.  3. Connect any IR receivers or control systems to the switch.  4.
  • Page 7 IR Control   Power — Press to power the switch on or set it to standby   mode   Prev — Press to select the previous source   Next — Press to select the next source   Input 1/2/3/4/5 — Press the desired input number to select the connected source IR Receiver Cable Pinout...

  • Page 8: Communication Format

    RS-232 Control The switcher can be controlled using RS-232 commands from a PC or control system. Use the included three-pin phoenix connector to connect the control device to the switcher. Communication Format   Baud rate: 9600 bps   Data bits: 8 bit  ...
  • Page 9 Function Commmand Paramter Description Return IN4<CR> SWITCH IN5<CR> Switch to input 5 IN5<CR> Switch to the next SWITCH NEXT<CR> input IN1<CR> Switch to the SWITCH PREV<CR> previous input IN1<CR> AUTOSWITCH Autoswitch is on ON<CR> ON<CR> Set autoswitch AUTOSWITCH   AUTOSWITCH  ...

  • Page 10: Specifications

    Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 Video Bandwidth 594MHz/18Gbps 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, Video Resolution 4K2K@60Hz Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 LPCM, Dolby Digital/Plus/EX, Dolby True HDMI Audio Formats HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD HDR Support Human-body model: ±8kV (air-gap...
  • Page 11 Technical Input: AC100~240V 50/60Hz Power Supply Output: DC 12V/2A (US/EU standard, CE/FCC/UL certified) Power Consumption 3.24W (Max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage -20°C ~ 60°C / -4°F ~ 140°F Temperature Relative Humidity 20~90% RH (non-condensing)
  • Page 12     2023, Snap One, LLC. All rights reserved. Snap One and its respective logos are registered trademarks or trademarks of Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. 4Store, 4Sight, Control4, Control4 My Home, SnapAV, Araknis Networks, BakPak, Binary,...
