Broan NuTone C350BNR Assembly

FAN MOTOR ASSEMBLY
To register this product visit Broan-NuTone.com
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the
manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel. Lock or tag service panel to prevent
power from being switched on accidentally.
3. Installation work and electrical wiring (including switch location) must be done by a qualified person(s) in
accordance with all applicable codes and standards.
4. Provide sufficient air for proper combustion and exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent backdrafting. Follow the combustion equipment standards such as
those published by the National Fire Protection Association (NFPA), the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and local codes.
5. This product may have sharp edges. Be careful to avoid cuts and abrasions during installation and
cleaning. The wearing of safety glasses and gloves is recommended.
6. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
7. Ducted fans must always be vented to the outdoors.
8. Not for use in kitchens.
9. Acceptable for use over a bathtub or shower when installed in a GFCI protected branch circuit.
10. Do not use this fan with any solid-state speed control device.
11. This unit must be grounded.
12. This unit must be installed into 8" x 7¼" fan housings that are marked "690" Series. For use only with
NuTone fan models 695 or 696N. No other usage has been tested or authorized by Broan-NuTone LLC.
13. If the fan makes excessive noise or if there is unusual noise or smells of smoke, disconnect power supply
and contact customer service.
CAUTION
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. Install fan at least five feet (1.52 m) above floor.
3. To avoid motor bearing damage and noisy, unbalanced impellers, keep drywall spray, construction
dust, etc. off motor and impeller.
4. Read specification label on product for information and requirements.
CLEANING & MAINTENANCE
• For quiet and efficient operation, long life, and attractive appearance – lower or remove grille and
vacuum interior of fan with a dusting brush attachment.
• The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or
unusual noise, replace the motor with the exact service motor. The impeller should also be replaced.
• To remove blower assembly - See step 3.
OPERATION
Use an on/off switch to operate this ventilator.
WARRANTY
One Year Limited Warranty
WARRANTY OWNER: Broan-NuTone warrants to the original consumer purchaser of its products that such
products will be free from defects in materials or workmanship for a period of one (1) year from the date of
original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one year period, Broan-NuTone will, at its option, repair or replace, without charge, any product
or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND
TO FLUORESCENT LAMP STARTERS OR TUBES, FILTERS, DUCT, ROOF CAPS, WALL CAPS AND OTHER
ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any
products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair
(other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one year period as specified for the express warranty. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE
PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE
LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION
WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes
all prior warranties.
WARRANTY SERVICE: To qualify for warranty service, you must (a) notify Broan-NuTone at the address or
telephone number below, (b) give the model number and part identification and (c) describe the nature of
any defect in the product or part. At the time of requesting warranty service, you must present evidence of
the original purchase date.
Date of Installation
Builder or Installer
Model No. and Product Description
IF YOU NEED ASSISTANCE OR SERVICE - CONTACT:
Broan-NuTone LLC, 926 West State Street, Hartford, Wisconsin, USA 53027 Broan-NuTone.com 800-558-1711
Venmar Ventilation ULC, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 Broan-NuTone.ca 800-567-3855
MODEL C350BNR

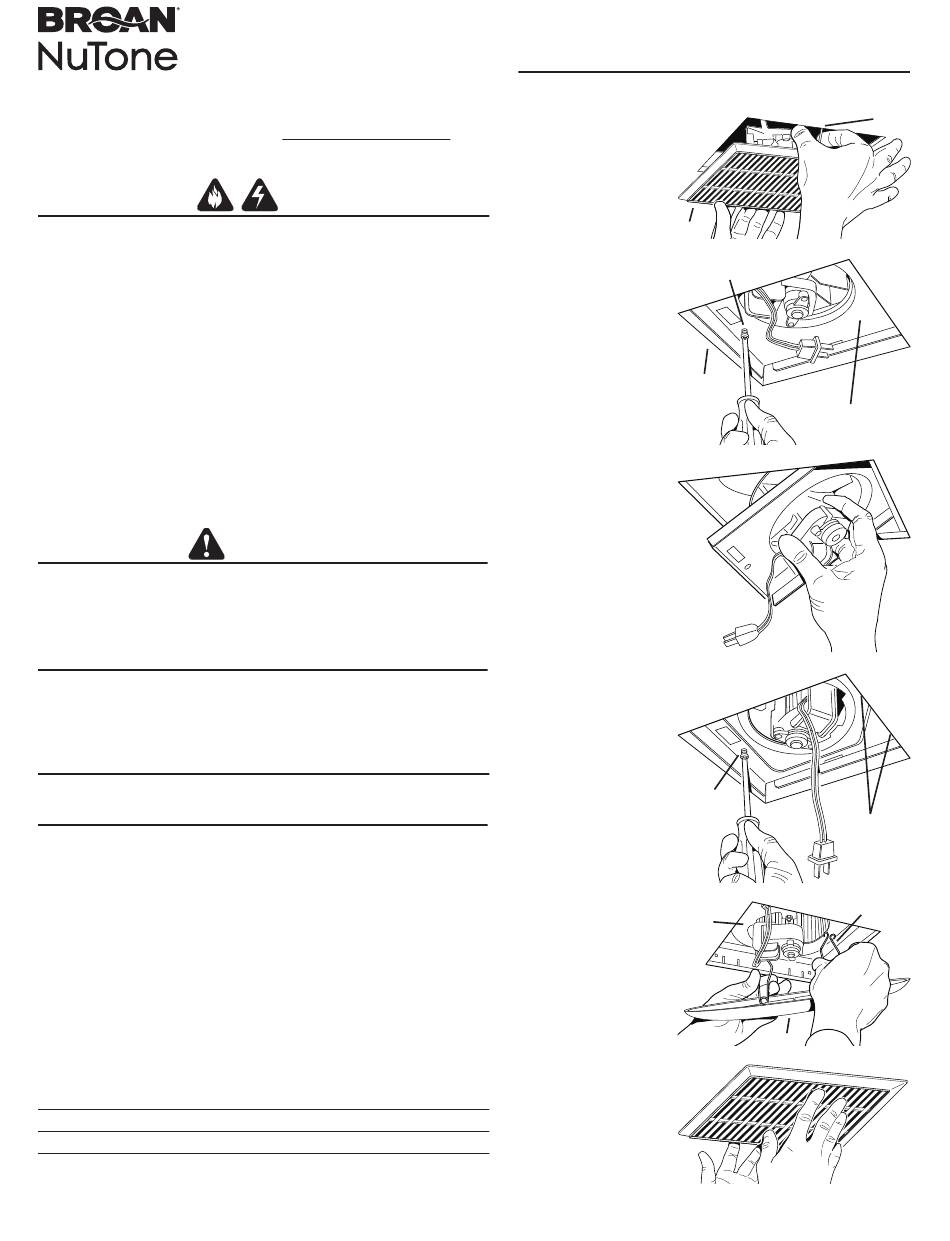

INSTALLATION
1. Disconnect the electrical power supply and lock out the
service panel for the existing fan.
2. Remove the grille from
the existing fan.
Pull grille down to
expose two springs.
Squeeze each spring
together and pull down
again to release springs
from motor plate slots.
GRILLE
3. Remove blower
assembly from
existing fan.
Unplug motor cord from
receptacle and remove
screw located next to
receptacle. If necessary,
insert a straight-blade
screwdriver between
motor plate and side of
housing near the screw
location and gently
SIDE OF
pry housing away from
HOUSING
motor plate.
Pivot blower assembly
down and out.
4. Check existing
housing.
Vacuum the interior of
the existing fan housing
with a dusting brush
attachment. Examine the
housing to make sure it
is securely fastened to
the building structure
and free of any holes
caused by corrosion.
The receptacle must be
intact. If any damage is
found, do not continue
installation of this
product. Contact a
qualified person(s) for
repair.
5. Install new blower
assembly into existing
fan housing.
Insert two motor plate
tabs into slots in housing
and pivot blower
assembly up until it is SCREW
touching the wiring box.
Secure in place with
existing screw.
Plug in motor.
6. Install grille.
MOTOR
PLATE
Squeeze one grille
spring together and
insert it into the
matching slot in motor
plate. Repeat with the
other grille spring.
Push grille until it is tight
against ceiling or wall.
SPRING
SCREW
MOTOR PLATE
2 TABS
&
SLOTS
GRILLE SPRING
GRILLE
