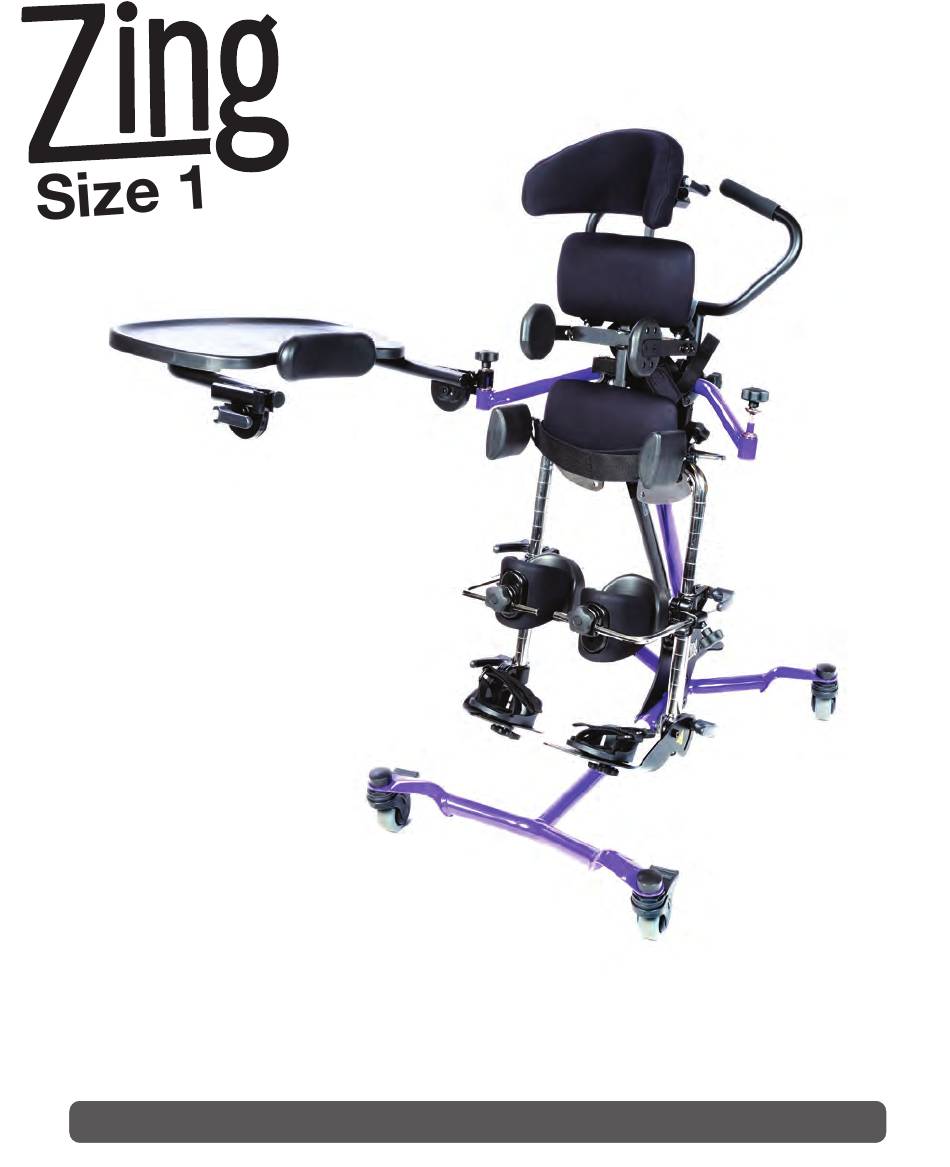

- Page 1 Assembly Manual PA5520 Zing MPS, PA5522 Zing Supine PA5520 Zing MPS Tilt Table, PA5522 Zing Supine Tilt Table PA5522 Zing Prone Please ensure the Assembly Manual stays with the unit at all times.
- Page 2 SYMBOL/LABEL LEGEND TEMPERATURE CAUTION/WARNING/ATTENTION TYPE BF APPLIED PART DATE OF MANUFACTURE SEE INSTRUCTIONS FOR USE PINCHPOINT ATMOSPHERIC PRESSURE HUMIDITY MANUFACTURER SERIAL NUMBER CONFORMITÈ EUROPËENNE PRESCRIPTION ONLY MEDICAL DEVICE POTENTIALLY HOT SURFACE Accessible surfaces which may exceed 105˚F/41˚C and could be a hazard to persons with skin damage or not having sensation.
- Page 3 Parts Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 IMPORTANT Zing Warranty Registration FREE GIFT Upon Completion (warranty &...
- Page 4 Assembly 1. Remove everything out of the box and place the mast onto the floor as shown. Remove all plastic wrap. 2A. If the gas spring lockout was ordered, it 2 2B will be shipped in the locked position. Pull the lock out and turn to unlock.
- Page 5 4. For the Supine and Prone units, place mast on end like shown in step 6, for the MPS and TT, depress the foot pedal and allow the mast post to come up to a vertical position. 5. Remove the bag of hardware from the wheelbase.
- Page 6 7A. Start all 4 bolts. Do not tighten at this time. 7B. Once all 4 bolts have been started, tighten them securely. Place unit onto its wheels and lock casters. 8. If the multi-adjustable knee pads or calf pads were ordered, loosen knobs on clamps and move up into position.
- Page 7 10. Tighten the lug on the side of the mast securely. 11. If the calf pad with knee strap was ordered, place the assembly onto the legs as shown. 12. Once the calf pad with knee strap is in position, tighten knobs securely. Page 4...
- Page 8 13. If the independent adjustable calf pads were ordered, loosen the ratchet handles on the clamps and position as shown. Insert Clamp the calf pads into the inside of the clamp. Tighten securely. 14. Insert multi-adjustable knee pads into the outside of the clamp. Tighten securely. 15.
- Page 9 16. If the multi-adjustable foot plates were ordered, place each foot plate onto the legs with the handles facing out. Tighten knobs securely. 17. If the hip supports were ordered, insert hip supports into the bracket behind the pelvic pad. Tighten securely with the knobs or set screw kit (600673).
- Page 10 MPS, Supine or Tilt Table 19A. If the black molded tray was ordered, insert the two tray arms into the tray bracket as shown. 19B. Flip the gray plunger back into the locked position and tighten knob securely. MPS, Supine or Tilt Table 20A.
- Page 11 Insert bolt and place nut onto bolt. Tighten securely. Repeat steps for the other handle. 25A. If the Zing Tilt Table (TT) was ordered, place the bracket for the planar head support onto the upper body support pad, making sure the spacers are in between the bracket and pad.
- Page 12 Parts Detail-MPS (multi-position stander) Page 9...
-
Page 13: Parts Detail
Parts Detail Page 10... - Page 14 Parts Detail-Tilt Table MPS (multi-position stander) Page 11...
- Page 15 Page 12...
- Page 16 Parts Detail-Supine Page 13...
- Page 17 Parts Detail-Tilt Table Supine Page 14...
- Page 18 Parts Detail-Prone Page 15...
- Page 19 Parts Detail-Prone Page 16...
- Page 20 Assembly Manual 262 West 1st St. UK REP Morton, MN 56270 USA Toll Free: 800.342.8968 or 507.697.6393 Fax Free: 877.342.8968 or 507.697.6900 email: info@easystand.com EC REP easystand.com Medical Product Service GmbH Borngasse 20 35619 Braunfels Deutschland UK REP UK REP MPS Medical Product Service UK Ltd Northgate House Northgate Street...
