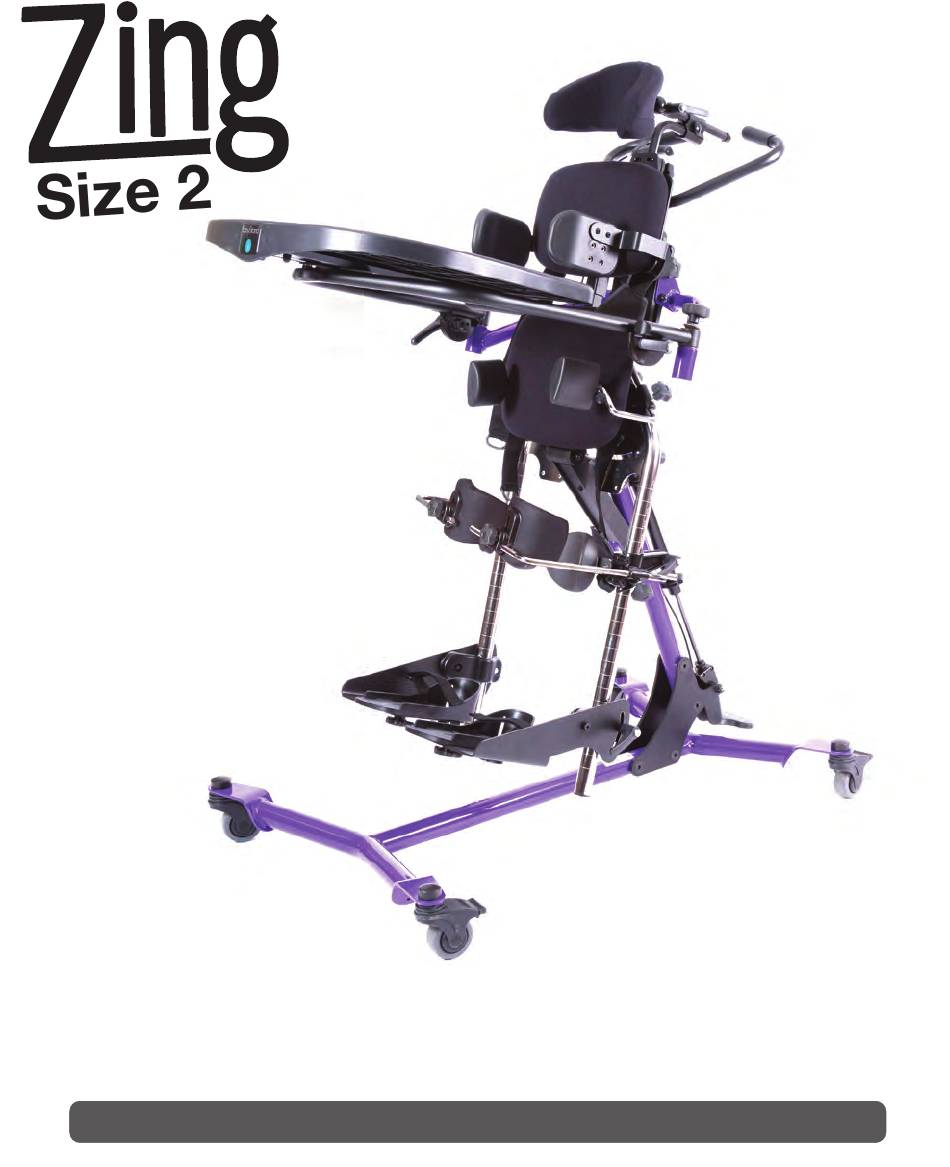

Assembly Manual

PB5500 Zing MPS Gas Spring Lift, PB5504 Zing MPS Pow'r Up Lift

PB5502 Zing Supine Gas Spring Lift, PB5506 Zing Supine Pow'r Up Lift

PB5562 Zing MPS Tilt Table Gas Spring Lift, PB5566 Zing MPS Tilt Table Pow'r Up Lift

PB5564 Zing Supine Tilt Table Gas Spring Lift, PB5568 Zing Supine Tilt Table Pow'r Up Lift

PB5606 Zing Prone Gas Spring Lift, PB5608 Zing Prone Pow'r Up Lift

Please ensure the Assembly Manual stays with the unit at all times.

Need help?

Do you have a question about the PB5500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Zing PB5500

Page 1 PB5502 Zing Supine Gas Spring Lift, PB5506 Zing Supine Pow’r Up Lift PB5562 Zing MPS Tilt Table Gas Spring Lift, PB5566 Zing MPS Tilt Table Pow’r Up Lift PB5564 Zing Supine Tilt Table Gas Spring Lift, PB5568 Zing Supine Tilt Table Pow’r Up Lift PB5606 Zing Prone Gas Spring Lift, PB5608 Zing Prone Pow’r Up Lift...
Page 2 SYMBOL/LABEL LEGEND TEMPERATURE CAUTION/WARNING/ATTENTION TYPE BF APPLIED PART DATE OF MANUFACTURE SEE INSTRUCTIONS FOR USE PINCHPOINT ATMOSPHERIC PRESSURE HUMIDITY MANUFACTURER SERIAL NUMBER CONFORMITÈ EUROPËENNE PRESCRIPTION ONLY MEDICAL DEVICE POTENTIALLY HOT SURFACE Accessible surfaces which may exceed 105˚F/41˚C and could be a hazard to persons with skin damage or not having sensation.
Page 3 Parts Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 IMPORTANT Zing Warranty Registration FREE GIFT Upon Completion (warranty &...
Page 4 Assembly 1. Remove everything from the box. Remove all plastic wrap and parts from the boxes. 2. Remove the bag of hardware from the wheelbase. It contains the 4 bolts for the mast assembly. 3. Position the mast as shown, place the wheelbase as shown onto the mast.
Page 5 4A. Start all 4 bolts. Do not tighten at this time. 4B. Once all 4 bolts have been started, tighten them securely. 5. Remove the foot pedal and bolts from the polly bag and place the foot pedal onto the bottom of the gas spring as shown.
Page 6 7. Place unit onto its wheels as shown, and lock casters. 8. If the Gas Spring Lockout was ordered, unlock the gas spring by pulling the plunger. (see page 33) If the Gas Spring Lockout was not ordered, remove the bolt from the lower part of the cylinder on the mast as shown, discard bolt.
Page 7 10. Flip up the brace as shown. Bracket Brace 11. Depress the foot pedal to allow the mast to expand about 2 inches. For the Pow’r Up Lift, use the controller to allow the unit to expand about 2 inches. 12.
Page 8 13. Insert bolt into the hole about halfway through the brace. 14A. Insert washer on the other side of the brace and line up holes. You may need to use a flat head screwdriver to assist with the opening. 14B. Insert the bolt all the way through the holes.
Page 9 16. For the leg assembly, remove the two bolts behind the support pad. Set aside. 17. Place leg assembly onto unit as shown and line up holes. Making sure the ratchet handle and knee clamp are facing towards the rear of the unit. Insert both bolts and tighten securely.
Page 10 If a Tilt Table (TT) model was ordered, skip to step 23. If a Prone model was ordered, skip to step 29. MPS and Supine 19. Loosen the knob on the upper body support. MPS and Supine 20. Place upper body support onto post as shown.
Page 11 MPS and Supine 22. Loosen knob on head support bracket, insert head support and tighten knob securely. Tilt Table 23. If a Tilt Table (TT) model was ordered follow steps 23-27, remove the 6 bolts from the back of the upper body support pad. Tilt Table 24.
Page 12 Tilt Table 25. Using a hex wrench, insert 2 lower bolts into the holes on the pad. Tighten snug. Note: Use the 2 holes on the bracket to access the lower holes in the pad. Tilt Table 26. Place head support/push handle bracket into support tube as shown.
Page 13 Tilt Table 28A. If the optional chest strap was ordered, place it around the pad as shown. 28B. Position strap in the grooves on the support bracket as shown. Prone 29. If the Prone model was ordered follow steps 29-35, remove the cap on the support tube and discard.
Page 14 Prone 31. Loosen knob and insert upper body support into the support tube and tighten knob securely. Tighten set screw. Prone 32. If the face aperture was ordered. Depress the spring button and place it onto the support tube. Prone 33.
Page 15 Prone 34. Place the push handle for the tray onto the support brackets as shown. Prone 35A. Line up holes on support brackets 8 35B and push handle. Insert bolts and tighten securely. 35B. Repeat steps 33-35 for other side of tray.
Page 16 MPS, Supine, TT 37. Loosen knobs on the tray brackets and flip open the gray latch all the way as shown below. MPS, Supine, TT 38. Lock the casters, insert the two tray arms into the tray bracket on the bottom of the tray as shown.
Page 17 MPS, Supine, TT 40. Flip the tray arm as shown. MPS, Supine, TT 41. Place the ratchet handle that was sent with the manual onto the bolt and tighten securely. Repeat steps for the other side. MPS, Supine, TT 42. There are 2 knobs in the parts bag. Screw each knob slightly into the tray bracket on the unit.
Page 18 Prone 43. If the Prone model was ordered. Loosen ratchet handles on the side of the tray. Flip tray support brackets up as shown. Tighten ratchet handles securely. Prone 44. Insert tray support brackets into the following tubes as shown. Depress spring button and place tray into desired position, tighten knobs securely.
Page 19 46. If hip supports were ordered, loosen knob on the hip support bracket on the leg. Insert hip support as shown. Tighten securely with the knobs or set screw kit (600673). Repeat steps for other hip support bracket. 47. If the multi-adjustable knee pads were ordered, loosen ratchet handles on the knee clamps.
Page 20 MPS, Supine, TT Prone 49. If the multi-adjustable foot plates were ordered, loosen ratchet handle on foot plate, place foot plate bracket onto the leg as shown, place in desired position and tighten ratchet handle securely. Repeat steps for other foot plate. Platform Foot Plate Loosen knobs and place onto legs as shown.
Page 21 MPS, Supine, TT 52. Guide cable up behind pad. Make sure to guide cable on the back side of the push handle. MPS, Supine, TT 53. Remove bolt from the controller handle, place controller handle onto the push handle as shown. Insert bolt through the hole and tighten to the controller handle.
Page 22 Prone 55. If the dual control was ordered, remove bolt from the controller handle, place controller handle onto the push handle as shown. Insert bolt through hole and tighten to the controller handle. Prone 56. Guide the cable under the tray and use provided zip tie to secure the cable.
Page 23 Parts Detail- MPS Page 20...
Page 24 Parts Detail- Supine Page 21...
Page 25 Parts Detail- TT MPS Page 22...
Page 26 Parts Detail- TT Supine Page 23...
Page 27 Parts Detail- Prone Page 24...
Page 28 Assembly Manual 262 West 1st St. UK REP Morton, MN 56270 USA Toll Free: 800.342.8968 or 507.697.6393 Fax Free: 877.342.8968 or 507.697.6900 email: info@easystand.com EC REP easystand.com Medical Product Service GmbH Borngasse 20 35619 Braunfels Deutschland UK REP UK REP MPS Medical Product Service UK Ltd Northgate House Northgate Street...
