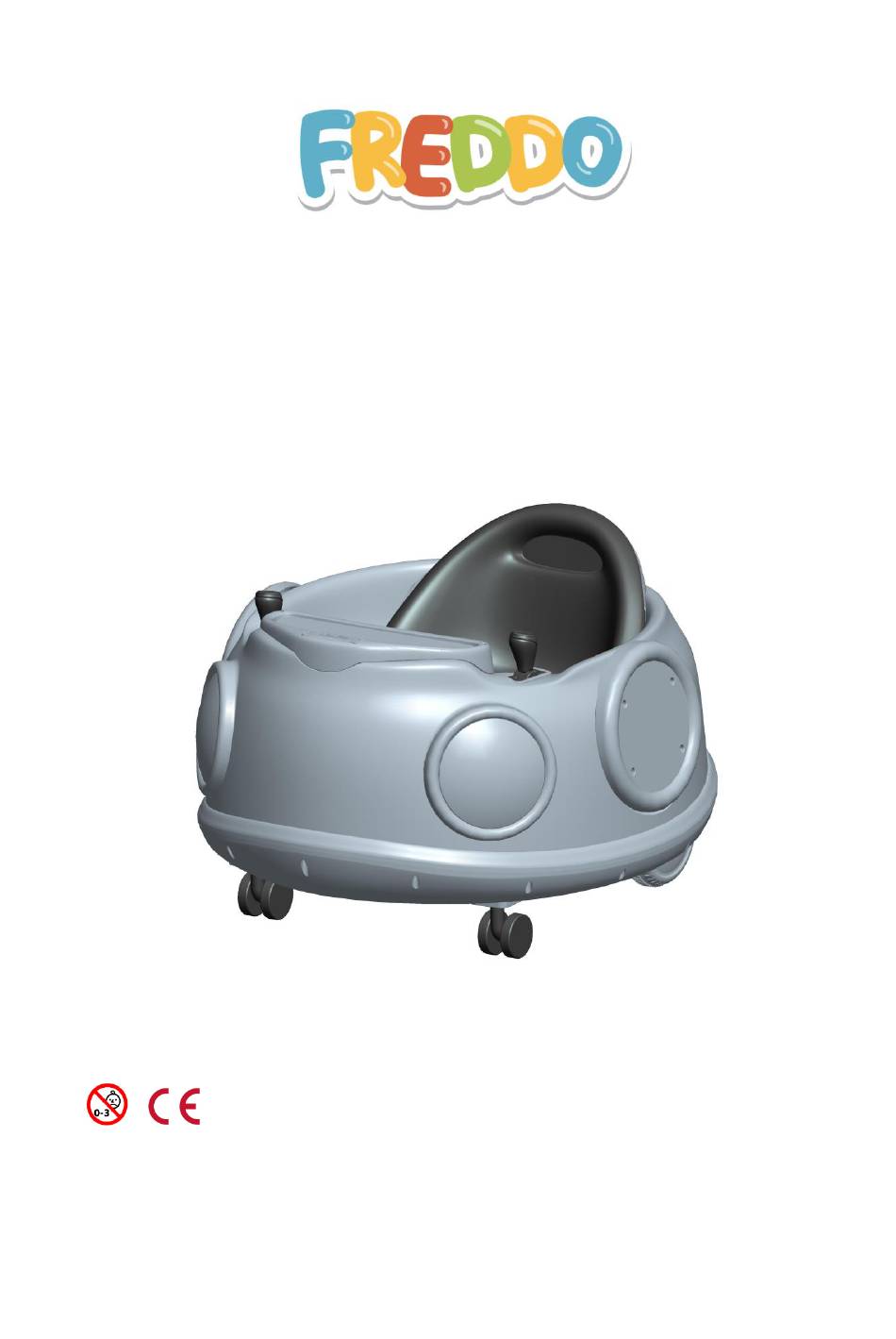

A030

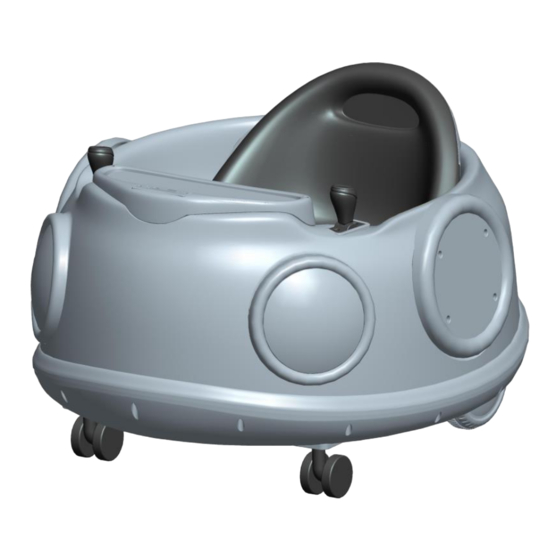

FREDDO BUMPER CAR
Picture is for reference only.
Please refer to real object.
ASTM-F963
◆ Please read the manual carefully before assembling;
◆ Preserve the manual properly for future reference;
◆ The manual is for assembling and using reference only. Details will be possibly
improved and updated, including structure, appearance, packing, functions, and etc.
Please refer to the real object as standard if there is something different from the manual.
Advertisement
Table of Contents
Related Manuals for FREDDO A030
Summary of Contents for FREDDO A030
- Page 1 A030 FREDDO BUMPER CAR Picture is for reference only. Please refer to real object. ASTM-F963 ◆ Please read the manual carefully before assembling; ◆ Preserve the manual properly for future reference; ◆ The manual is for assembling and using reference only. Details will be possibly improved and updated, including structure, appearance, packing, functions, and etc.
-
Page 2: Specifications
1. Before Assembling Warning! Choking Hazard: Small parts, Not for kids under 3 years. Dispose plastic bags carefully. It’s dangerous to kids. Adult assembly required.Use care when unpacking as components to be assembled may pose small parts/sharp edge hazard. Check if the charger is in good state, including the wire, socket, and all details. Stop use it if it looks broken in some way, till it’s fixed. - Page 3 4. Universal Wheels Assembling 前知 Assemble the universal wheels to right position; Fix universal wheels with 8 pcs M4 X12 tapping screws (from screw kit) tightly, 4 pcs per wheels. 5. Forward/Reverse Lever Rod Assembling Install the forward/reverse lever rod control rod into right position; Tighten forward/reverse lever rod 4 pcs with M4 X12 tapping screws, 2 pcs per rod.
- Page 4 7. Battery Wires Connect Connect the battery wire terminals by color to color. 8. Seat Assembling Put the seat onto right position and fix it by 2 pcs M4 X 12 tapping screws from screw kit.
- Page 5 9. Functions Sketch 1. Play & Meal Board: for kid playing and enjoy meal. 2. Multifunctional Board: entertainment control board. 3. Charging Socket: connect the charger for charging the car. 4. Power Switch: switch on/off the car. 5. Forward /Reverse Lever Rod: control the car to driving forward, reverse and going-round. 1.
- Page 6 10. Warnings & Safety Alert: Warning! Choking Hazard: Small parts, Not for kids under 3 years. Dispose plastic bags carefully. It’s dangerous to kids. Adult assembly required.Use care when unpacking as components to be assembled may pose small parts/sharp edge hazard. ...
-
Page 7: Charging Warnings
12. Warning on battery！ Don’t change the structure and electric cables. Repairing must be by professional staff. Don’t use it in other functions. Connect the battery in right order. Don’t connect battery in short circuit. No charging battery can’t be charged. Charging must be arranged by Adult, or by their guidance. -
Page 8: Fuse Maintenance
16. Fuse Maintenance: Inspect the charger carefully and check if everything is OK regularly. If there is somewhere with any problem, stop using it till repaired. The car is with self reset fuse. When it’s over loaded or used improperly, the fuse will power Fuse: off the car for 15-20 seconds，and then to reset it. -
Page 9: Troubleshooting
17. Trouble Shooting Inspections Solutions Troubles 1.Check if fuse disconnected. Yes, restart the car； No, check the next； 2.Check if pedal switch in poor contact. No, repair the contact. Yes, check the next； 3.Check if motor terminal welded. No, connect it. Motor not Yes, check the next；... - Page 10 DISPOSAL OF BATTERIES: CONTAINS SEALED LEAD ACID BATTERY. BATTERY MUST BE RECYCLED. Dispose old batteries at an approved battery dumping station; Contact your local environmental protection agency office for additional information. Adult assembly required. Use care when unpacking as components to be assembled may pose small parts/sharp edge hazard.
