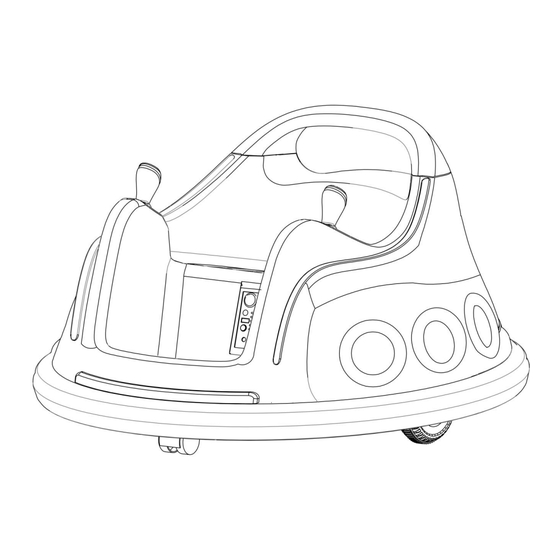

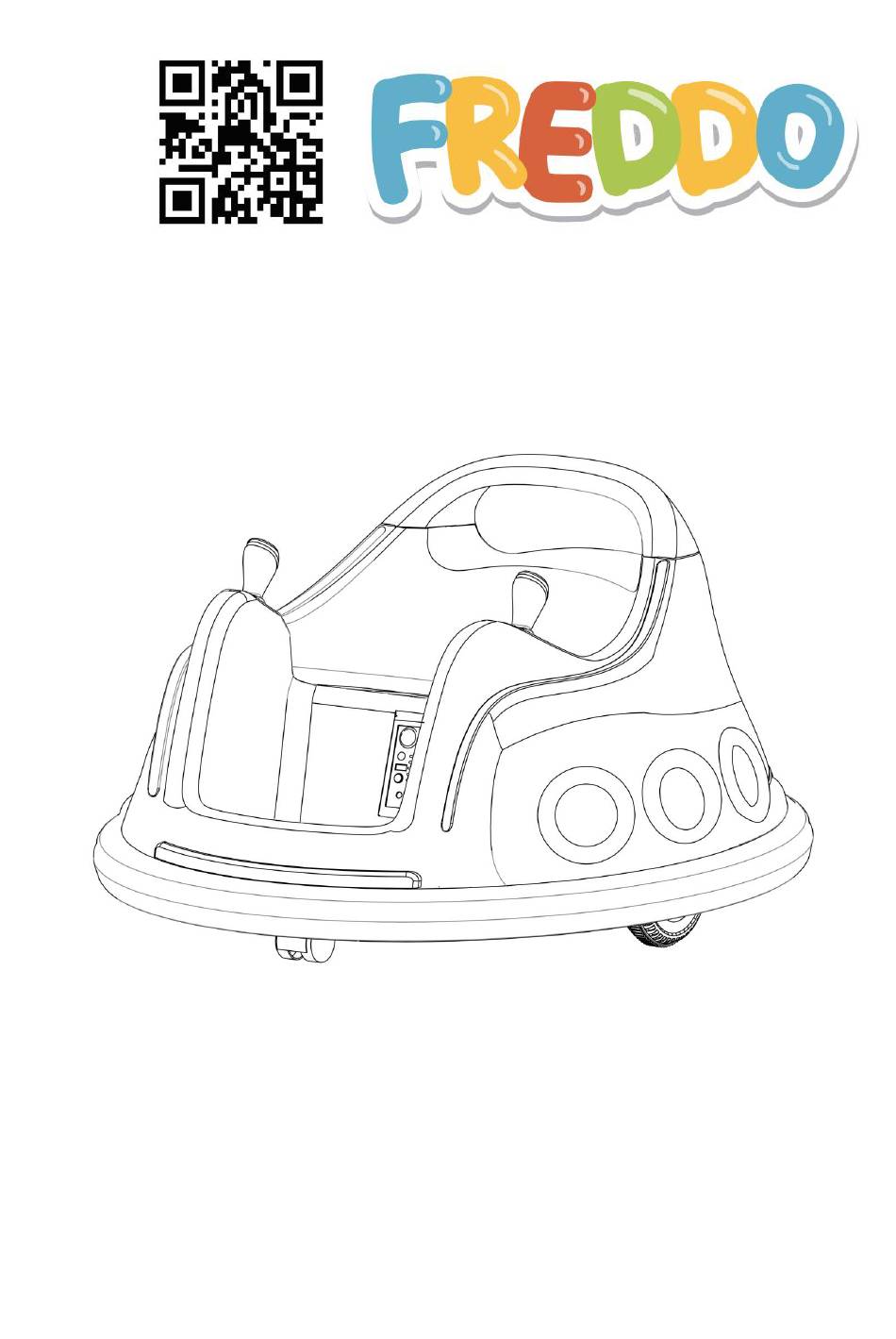

- Page 1 BUMPER CAR Styles and colors may vary Keep the package away from children and dispose of properly before...
-
Page 2: Specification
1. Specification： Motor 12V (15W*2) Battery 12V4.5AH Charger 12V500MA Speed 1.2-2 KMH/0.74-1.24MPH Suitable age : 37-96 months Load Capacity: Under 30KGS/66LBS Size of car: 73*73*44CM/28.7X28.7X17.3 INCH Power way: Charging type Charge time : 8-12 hours 2.Packing list： Number Name Quantity Remote Control Charger Manual... -
Page 3: Backrest Installation
3.Operation Instruction: A. Backrest installation 1. Clip backrest into the body B. Install push handle switch As shown in the figure: install the forward backward switch to the designated position of the body. 1. Clip the push handle into the specified position on the body. - Page 4 C. Power Connecting & Install seat 1. Find out the main power line and insert the plug-in of the power line into the corresponding socket of the receiver; 2. Install the cushion to the body 3. Fix the seat with screw by cross screwdriver...
-
Page 5: Function Introduction
C. Function introduction 1．Forward-backward button：control the car forward or backward，middle is stop 2．Power button: Turn the vehicle on and off 3．Power display: Clearly see the battery power, in order to charge. 4．Socket: charge. 5．Wireless Technology / music function: Click to switch mode; 6．U: Multimedia Input 7．Next song: Switch songs. - Page 6 C. Buffer strip installation As shown in the figure: wrap the buffer strip around the specified position on the body, and clip one end of the buffer fixing block into the body slot and the other end with M4 × 10 screw fixation. Step 1 Step 2 Step 3...
- Page 7 D. Use The Remote Control 12V NOTE: This product does not included the AAA(1.5v) Only allow adult to use remote control, can not let the children touch Subject to the material object Operation manual : For the first time to use (Or Replace the battery)Need to frequency bind ...
- Page 8 4. Safety Rules for Safe Riding Keep Children within safe riding areas: Never use in roadway, near motor vehicles, on lawn space , on or near steep inclines or steps swimming pools or other bodies of water; Use the toy only on flat surfaces. Such as inside your house, garden or playground ...
- Page 9 supply cord and the connectors. DO NOT charge the battery if any damage to parts has occurred. Do not allow the battery to drain completely. Recharge the battery after each use or once a month if not used regularly. ...
-
Page 10: Troubleshooting Guide
Do not tamper with the electric system. Doing so many create a short , causing the fuse to trip. 7.Troubleshooting Guide Problem Possible Cause Solution Vehicle dose not Battery low on Recharge battery power Battery connector or Check that battery connectors are firmly plugged into each other. If wires are loose wires are loose around the motor contact your distributor please Battery is dead... - Page 11 Completely read through this manual and the troubleshooting guide table before calling. If you still need help resolving the problem Contact your distributor please. 8.Maintaining ● It is parents’ responsibility to check main parts of the toy before using, Must regularly examine for potential hazard, such as the battery, charge, cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be until that damage had been properly removed.
-
Page 12: Fcc Statement
FCC Statement Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation.
