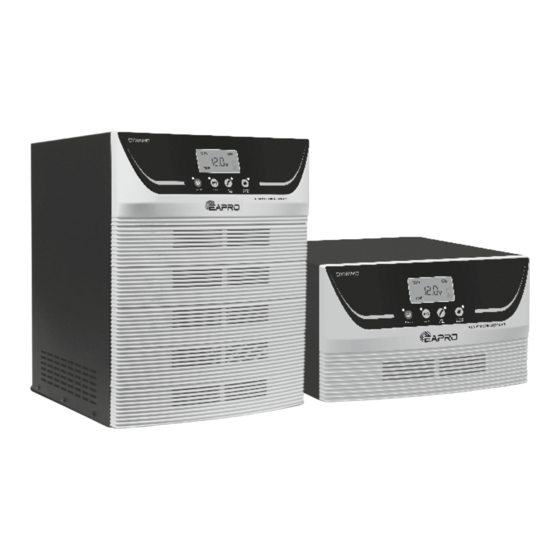

EAPRO DYNAMO User Manual

High performance true hybrid
Hide thumbs

Advertisement

Quick Links

Download this manual
SCAN TO DOWNLOAD
SCAN TO REGISTER
USER MANUAL
YOUR PRODUCT

Advertisement

loading
Need help?

Need help?

Do you have a question about the DYNAMO and is the answer not in the manual?

Questions and answers

Related Manuals for EAPRO DYNAMO

Summary of Contents for EAPRO DYNAMO

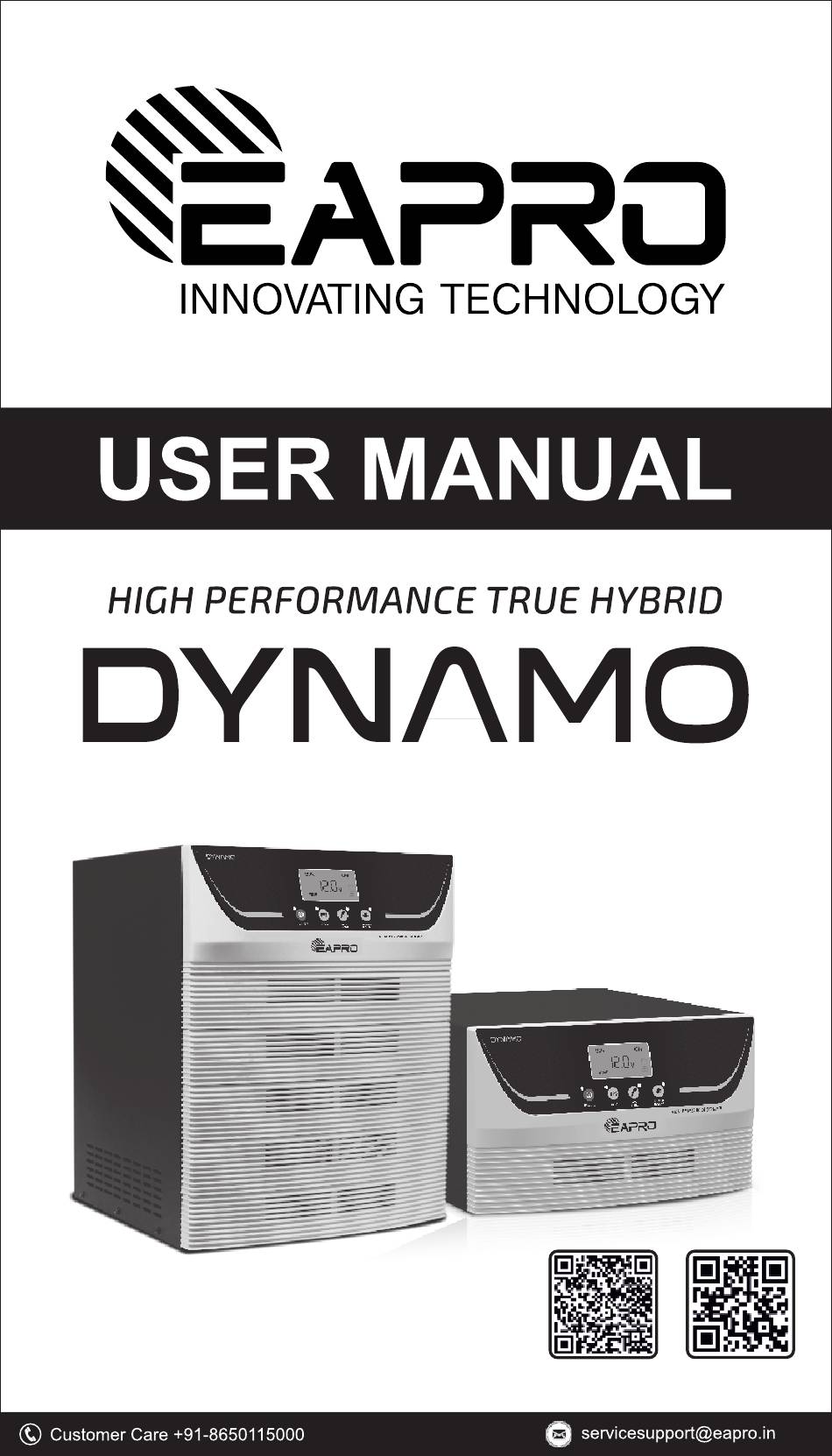

  • Page 1 SCAN TO DOWNLOAD SCAN TO REGISTER USER MANUAL YOUR PRODUCT...
  • Page 2 Dearest Customers, Warmest congratula ons on your well-deserved selec on of energy-efficient products that incorporate only the world's most updated technical specifica ons in each device of Pure Sine Wave technology when it relates to any INVERTER/Power Controlling Unit. And, we whole-heartedly welcome you to become involved in our family as a regular user of any electronic device.

  • Page 3: Safety Precautions

    ICONS This manual provides relevant informa on with icons to highlight the safety of the user to avoid PCU damage and physical injury. Name Danger Warning Protective Conductor Terminal Manual SAFETY PRECAUTIONS IMPORTANT: This owner's guide should be read and kept safe for later reference. Important safety and installa on instruc ons for our Solar PCU are men oned in this arkings on or provided with the Solar PCU and all appropriate sec ons of this guide before using the Solar PCU.

  • Page 4: Electrical Shock Hazard

    • If ba ery acid contacts skin or clothing, wash it immediately with soap and water. If acid enters the eyes, immediately flood the eyes with running cool water for at least 15 minutes and get medical a en on immediately. •...
  • Page 5 True Solar Hybrid PCU with Real Time Clock Prominent Features: • Smart Solar Selec on based on inbuilt Real Time Clock: - For maximum u lization of Solar Power - To get the op mum performance of the PCU for Maximum Power Saving. •...

  • Page 6: Salient Features

    HIGHLIGHTS • Pure Sine Wave Technology uses PWM topology with an inbuilt Real-Time Clock. • Smart Solar Selec on for maximum u lization of Solar Power. • Intelligent Ba ery Charging and Charge Sharing with Mains/Charging by Solar Power Only. •...
  • Page 7 Front Panel of the Solar Hybrid PCU 1. ON/OFF Switch 2. UPS/Normal 3. High/Normal 4. Power Saving Mode Switch Charging Switch Switch Description of Switches & LEDs on Front Panel LED Indication Func on LED 1 is Glowing System is in ON condi on LED 1 is not Glowing System is in OFF condi on LED 2 is Glowing...
  • Page 8 Description of LCD Display Display on LCD Indica on Ac on Mains voltage is ‘Mains ON’ No Ac on required available ‘Mains OFF’ Mains not available No Ac on required ‘UPS Mode UPS Mode is OK- No Ac on required ON’...

  • Page 9: Description Of Back Panel

    Back Panel of the PCU N E I/P O/P (1500VA/2200VA/3000VA-24V) (5350VA-48V) (5350VA-96V) Note: Packaging contents of Solar Hybrid PCU – DC Fuses. Description of Back Panel Nomenclature Func on/Remarks Input Terminal For AC Mains connection. Output Terminal For Output load connection. AC Mains MCB To switch ON the AC Mains (Utility Power).
  • Page 10 Safety Measures Important Precau ons: Our Sine Wave Solar PCU has two Ba ery terminals (Red and Black), AC MCB/Fuse, DC Fuse (Inside the cabinet upto 5350VA -48V), AC Input and AC Output socket/terminal block at the back panel of the Solar Hybrid PCU. The red wire has to be connected to the (+ve) terminal of the ba ery, and the black wire has to be connected to the (-ve) terminal of the battery.
  • Page 12 Getting Started Environment & Loca on The Solar Hybrid PCU should be installed as close as possible to the ba ery bank to keep the ba ery wires short in length. Never place the Solar Hybrid PCU in the same compartment because ba eries generate gases that are very corrosive to electronic equipment.
  • Page 13 Installa on Layout (24V Systems) Installa on Layout (For Higher Rated Systems) Battery MCB & TDR output is available on the system of 5350VA/96V & above. In 1500VA/24V - 5350VA/48V DC fuse is available in the power card (inside the cabinet).
  • Page 14 Installa on Procedure Where to Install The system should be installed in a loca on that meets the following requirements- a. Dry - Do not allow water to drip or splash on the UPS. b. Cool - The ambient temp. near the system should be in between 0°C and 45°C. The cooler environment is be er for the system.
  • Page 15 Air Condi oner Wiring • The Air condi oner requires 05 minutes delay each me a er the supply interrupts. To do so TDR is provided at the back panel of the UPS. (TDR Output is available in 5350VA-96V and above). Connect the load to the Solar PCU and switch on the PCU with the on/off...
  • Page 16 LCD Display Sequence: 1. Ba ery Voltage 2. Mains Voltage/ Output Voltage 3. Ba ery Voltage/Load Percentage 4. Solar Kwh 5. Solar Charging Current 6. Solar Current to Load 7. Time Protections: Logic of RTC Model: How to set saving level according to customer need: a.
  • Page 17 1. Saving Level 1 (SL-1) a. Priority for Charging: I. Solar only (Solar is Full) II. Solar + Grid (if solar is less) III. Grid (if solar not available) b. Priority for Load: I. Solar II. Solar + Ba ery III.
  • Page 18 Parameter Se ng Display Parameter Se ng Instruc ons The user/dealer can set a few cri cal parameters at the me of installation depending on the grid power and solar power availability and ba ery AH condi ons. Below steps are to be followed to set the cri cal parameters: &...
  • Page 19 Please do not change the default values ll you have the complete knowledge of the the solar Inverter. Mains Cut OFF Time Se ng (for night) Mains cut off me se ng (for night) (Available in SL -3 only) To set inverter in backup mode, following steps are to be follow: a.
  • Page 20 Power Saving Op ons A. No Mains Charging (NMC): This func on is enabled in Saving Level-3 (SL- power only (no charging from mains power) till the ba ery voltage reduces to 11.5V* (SBLC). Once the ba ery voltage reaches below 11.5V* (SBLC), the PCU will start charging from the mains with 05 Amp (regardless of Power Saving Mode enabled) and will charge the ba ery ll the voltage reaches 12.5V (SBLC* + 1V).
  • Page 21 Technical Specifica ons* Capacity 1500VA 2200VA 3000VA Nominal Battery Voltage 24VDC Battery Backup Mode Output Voltage @ No LOAD 225V ± 7V AC Output Wave Shape Pure Sine Wave Output Frequency 50 ± 1 Hz Ba ery Low Alarm (VDC) Per Battery (Default) 10.8 ±...
  • Page 22 Technical Specifica ons* Capacity 2.5KVA 3.5KVA 5350VA Nominal Battery Voltage 48VDC Battery Backup Mode Output Voltage @ No LOAD 225V ± 7V AC Output Wave Shape Pure Sine Wave Output Frequency 50 ± 1 Hz Ba ery Low Alarm (VDC) Per Battery (Default) 10.8 ±...
  • Page 23 Technical Specifica ons* Capacity 5350VA 7.5KVA 10KVA 10KVA 15KVA Nominal Battery Voltage 96VDC 120VDC 120VDC 180VDC 240VDC Battery Backup Mode Output Voltage @ No LOAD 225V ± 7V AC Output Wave Shape Pure Sine Wave Output Frequency 50 ± 1 Hz Ba ery Low Alarm (VDC) Per Battery 10.6 ±...

  • Page 24: Troubleshooting

    Ba ery Maintenance • Servicing of ba eries should be performed or supervised by personnel knowledgeable about ba eries and the required precau ons. • When replacing the ba eries, replace with the same type and number of ba eries. •...
  • Page 25 Installa on Check List (Essen al for Higher Ra ngs Only) Parameters Check Points Remarks Noise Dust Ventilation Distance between PCU & wall Meter Environment Rating of I/P Circuit Breaker Condition I/p Wire Thickness Sq. mm. Back-up System Capacity (DG Set Capacity &...
