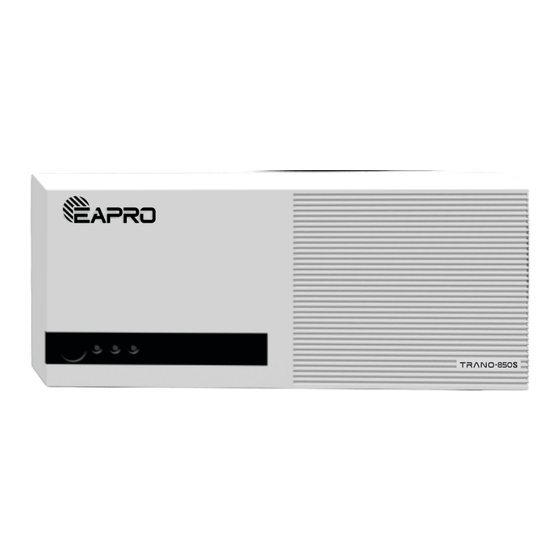

SALIENT FEATURES
• Active Battery Reverse Protection (ABRP)
• Auto reset at Mains time Short-circuit / Mains fuse Trip.
• Smart Battery Low Alarm.
• Informative LED Display.
• Pure Sine Wave Technology.
• Battery Type Selection (Tubular/SMF).
• Hybrid charging by Mains and Solar.
• Reverse Polarity Protection for Solar Panels.
USER MANUAL &
WARRANTY CARD
IN-BUILT
UP TO 12AMP
SOLAR CHARGER
IN-BUILT ABRP
SMART ENERGY
BACKUP
HYBRID
CHARGING
PURE SINE WAVE
TECHNOLOGY
Customer Care +91-8650115000
servicesupport@eapro.in
Advertisement
Table of Contents
Related Manuals for EAPRO TRANO Series
Summary of Contents for EAPRO TRANO Series
- Page 1 • Auto reset at Mains time Short-circuit / Mains fuse Trip. • Smart Battery Low Alarm. • Informative LED Display. • Pure Sine Wave Technology. Customer Care +91-8650115000 • Battery Type Selection (Tubular/SMF). servicesupport@eapro.in • Hybrid charging by Mains and Solar. • Reverse Polarity Protection for Solar Panels.
-
Page 2: Safety Precautions
Dear valued customer, Thank you for choosing the EAPRO TRANO Series. You've invested in a state- of-the-art, top-quality product known for its advanced features and reliable performance. This user manual comprehensively covers the functionalities of the TRANO Series Solar Inverter, offering insights into its diverse applications. -
Page 3: Explosion Hazard
FIRE AND BURN HAZARD • Do not install the inverter in a zero clearance compartment or do not cover the air intake vent opening in any other way. • To avoid overheating, do not use any external-battery charger with the Inverter. -
Page 4: Installation Instructions
Customer Care. 4. Connect the PV module's Red (+ve) and Black (-ve) to the PV solar connector of TRANO Series Inverter. Check solar current for the proper function of the solar charge controller. 5. If PV reverses protection during the daytime when enough solar is present, LED L7 will not glow after connecting the PV module to TRANO. - Page 5 Front View...
- Page 6 LED & SWITCH DESCRIPTION Front Panel Descripition Position Function Remarks Action No Action Inverter ON/OFF Switch Press S1 to Switch ON/OFF the Inverter Press S2 for 30 seconds to Select Battery Battery Type Selection Switch No Action No Action Type : Tubular or SMF Press S3 for 5 seconds to Select High/Normal Charging Selection Switch No Action...
-
Page 7: Rear View
REAR VIEW (1) O/P Socket (2) Solar I/P Connector (3) Mains Lead (4) Battery(-Ve) Black Wire (5) Battery(+Ve) Red Wire (6) Cooling Fan Application* Power for house load as well as Computers Emergency Power System, TV Set, Fan, Tube Light, CFL, etc. *Conditions Apply Note : If any Other Loads connect to the Inverter please check with Manufacture. -
Page 8: Troubleshooting
TROUBLE SHOOTING Battery Mode: The appropriate steps to be taken against any possible cause in battery mode are listed in the table below: Problem s and Possible Cause Solution Symptoms Overload Output load is greater Reduce the Load Protection than system capacity. immediately. -
Page 9: Technical Specification
TECHNICAL SPECIFICATION Model Name TRANO-850S TRANO-1000S TRANO-1100S Nominal Battery Voltage 12VDC Battery Mode Input DC NLC 1.3A±0.1ADC 1.5A±0.1ADC 1.8A±0.1ADC Output voltage 225±7VAC Output frequency 50Hz±0.5Hz Output waveform Pure Sinewave if load >100% 11.2±0.2VDC Battery Low Alarm If load <60% 10.9±0.2VDC Battery Low cut 10.7±0.2VDC Change over time in UPS mode... - Page 10 Battery Maintenance • Servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and the required precautions. • When replacing the batteries, replace with the same type and number of batteries. • General instructions regarding removal and installation of batteries. •...
