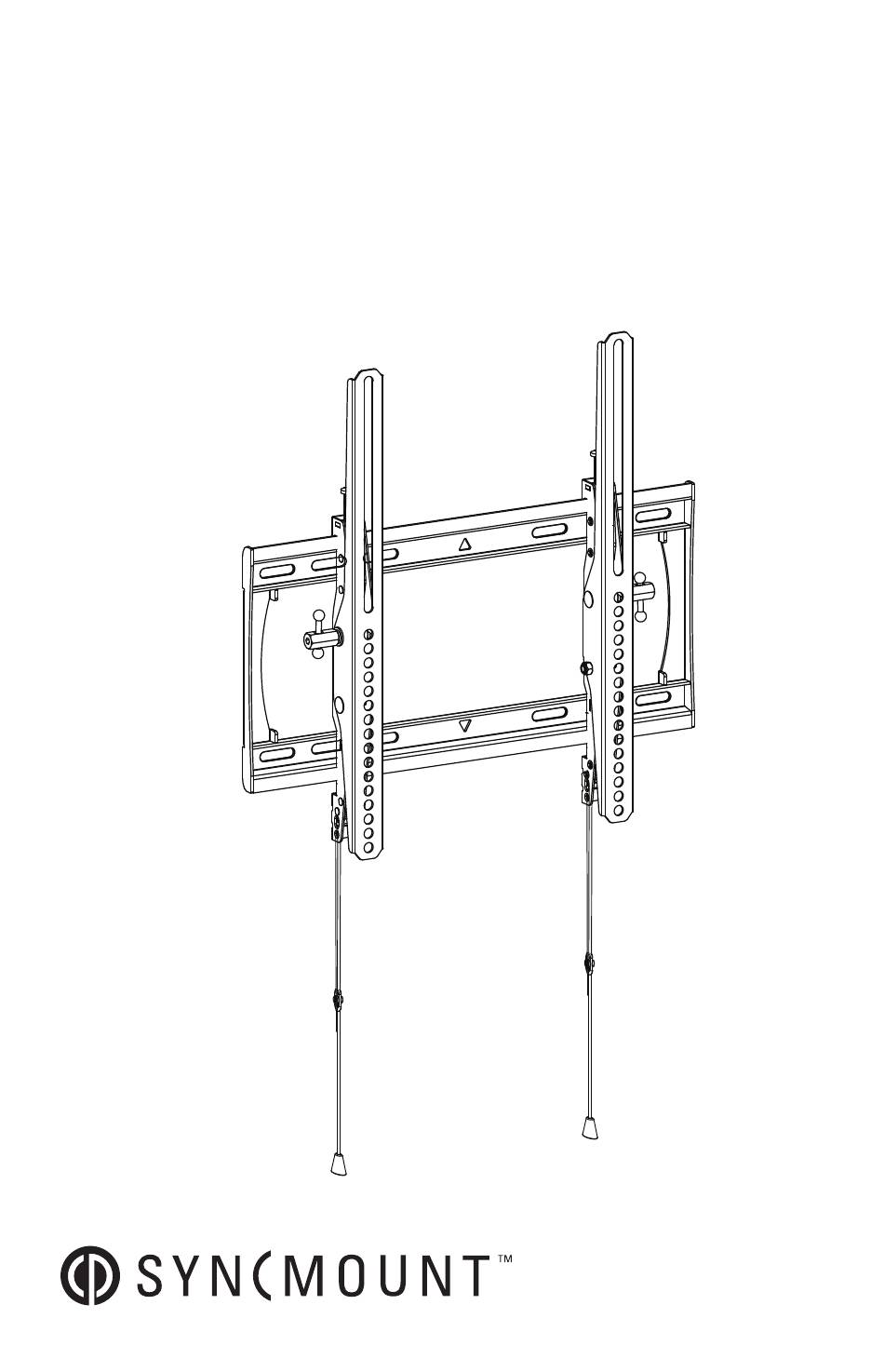

- Page 1 SM-T-3265 Tilting TV Wall Mount support mural inclinable pour écran plat INSTRUCTION MANUAL MANUEL D’INSTRUCTIONS www.syncproducts.com...
- Page 2 DISCLAIMER - WARNING INFORMATION AVIS DE NON-RESPONSABILITÉ - INFORMATIONS D’AVERTISSEMENT Disclaimer –. SYNCPRODUCTS has extended every effort to ensure to accuracy and completeness of this manual. However, SYNCPRODUCTS does not claim that the information covers all installation and or operational variables. The information contained in this document is subject to change without notice or obligation of any kind. Regarding the information contained herein, SYNCPRODUCTS makes no representation of warranty, expressed or implied, and assumes no responsibility for accuracy, sufficiency, or completeness of the information contained in this document.
- Page 3 HARDWARE PRODUCT NUMBERS M4 x 30 M6 x 30 M8 x 30 M4 x 12 M6 x 15 M8 x 15 M8 x 50 11 1 LAG BOLT WALL SQUARE LAG BOLT 10mm STEEL 8mm x 65mm ANCHOR WASHER SPACER STEEL WASHER SPACER WASHER...
- Page 4 STEP 1A - FLAT BACK FLAT PANEL (VERTICAL RAILS) Connect Vertical Rails to flat panel Connectez l'adaptateur au moniteur STEP 1B - CURVED BACK FLAT PANEL (VERTICAL RAILS) Connect Vertical Rails to flat panel Connectez l'adaptateur au moniteur Spacers can also be used to provide clearance for cables and connectors...
- Page 5 STEP 1- USE M8 STEEL WASHER IF THE PHILLIPS SCREWS FROM THE MONITOR KIT ARE TOO LONG Diagrams show two options for using additional washers if hardware screws are too long to properly tighten into back of TV. STEP 2- WOOD STUD INSTALLATION (CONCRETE INSTALLATION SKIP TO STEP 3) Find stud and mark edge and center locations Repérez l'emplacement d'une poutre, puis marquez l'emplacement des bords et du centre de cette poutre.
- Page 6 STEP 2C- MOUNT WALL PLATE TO WALL Mount wall plate Montez la plaque murale 16” STUD (Medium Tilt Mount) 16” or 24” STUD (Large Tilt Mount)
- Page 7 STEP 3 – SOLID CONCRETE INSTALLATION Use wall plate to mark mounting locations/ drill pilot holes Utilisez la plaque murale pour marquer l’emplacement de montage Level Solid Concrete Drill Bit Drill Pilot Hole DRILL BIT NOT INCLUDED STEP 3A & 3B - POSITION WALL PLATE, MARK, & DRILL PILOT HOLES Position wall plate to desired location, level, and Drill 4 pilot holes mark pilot locations with pencil.
- Page 8 STEP 3C- SOLID CONCRETE INSTALLATION. Mount wall plate Montez la plaque murale Insert wall Anchors gently into concrete wall with hammer if necessary Concrete Wall Concrete Wall Hammer...
- Page 9 STEP 4A- ATTACH PANELTO WALL PLATE Hang vertical rails with monitor attached Accrochez avec le moniteur installé. Pull spring lock cord down and gently push bottom of panel to wall and release spring lock. Panel is now locked on to wall plate. STEP 4B- ADJUST THE SCREWS ON THE VERTICAILS TO LEVEL THE FLAT PANEL rising up max 0.5”...
- Page 10 STEP 4C- ADDITIONAL SECURITY FEATURE (OPTIONAL) Option Option Vertical Rails Flat Panel Wall Plate Vertical Rails have 7mm hole located at the bottom for placement of pad lock for additional theft) security (pad lock not included)
- Page 11 STEP 4D- ADDITIONAL FEATURE (OPTIONAL) Manager the over length for the straps Attach pendant to wall plate with magnet. The length of the straps can be adjust if necessary knead and hold the control of the strap then adjust the length Push Push...
