Certa POWERPLUS CTPLNETRIMA User Manual

20v grass trimmer
Hide thumbs

Advertisement

Table of Contents

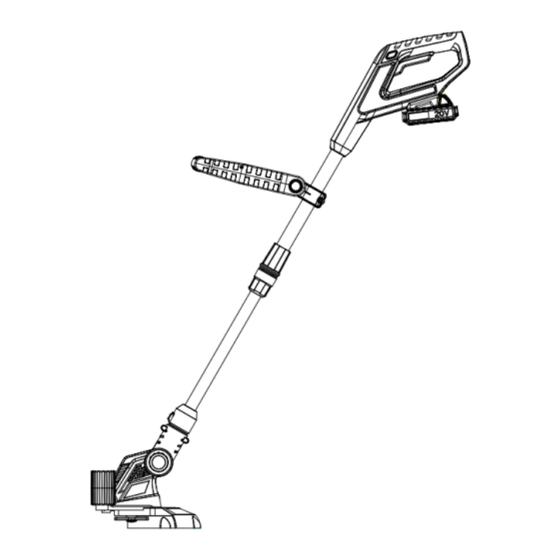

POWERPLUS 20V GRASS
TRIMMER
(SKIN ONLY)
CTPLNETRIMA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWERPLUS CTPLNETRIMA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Certa POWERPLUS CTPLNETRIMA

Summary of Contents for Certa POWERPLUS CTPLNETRIMA

  • Page 1 POWERPLUS 20V GRASS TRIMMER (SKIN ONLY) CTPLNETRIMA...
  • Page 2 Safety & Warnings Components List Overview Assembly Operation Cleaning & Care Specifications...

  • Page 3: Safety And Warnings

    SAFETY & WARNINGS Warning Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. • Read all instructions carefully and retain this user guide for future reference. •...
  • Page 4 Symbols Warning, safety alert. Read and follow all safety precautions. Protective goggles/visor, protective helmet & hearing protection. Do not expose to rain. Beware of thrown or flying objects to bystanders. Keep bystanders a safe distance away from the machine. Thrown objects can ricochet and result in personal injury or property damage.
  • Page 5 Electrical Safety • Power tool plugs must match the outlet. Never modify the plug in any way. Avoid using adapter plugs with grounded power tools. Using unmodified plugs and matching outlets will reduce the risk of electric shock. • Do not expose power tools to rain or wet conditions. Water entering a power tool increases the risk of electric shock.
  • Page 6 Power Tool Use and Care • Do not force the power tool. Use the correct power tool for your application. The right tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off. A power tool that cannot be controlled with the switch is dangerous and must be repaired.
  • Page 7 Training • Read the instructions carefully. Familiarise yourself with the controls and proper use of the appliance. • Never allow children to use the product. • Only people familiar with these instructions should use the appliance. Local regulations may restrict the age of the operator. •...
  • Page 8 Residual Risks • Despite adhering to safety provisions, certain risks may remain: Health defects from vibration emissions if the product is used for extended periods or not adequately managed and maintained. Injuries and property damage from broken accessories or hidden objects struck by the grass trimmer.
  • Page 9 • Dispose of used batteries promptly as directed by the manufacturer. • Improper use of the battery/tool may result in fire, explosion, or other hazards. • Supervise any battery/tool usage by children. Charging • Use this charger only with this product to avoid the risk of injury; batteries from other products may burst, causing personal injury or damage.
  • Page 10 OVERVIEW Unlock knob Lock sleeve and edging function button Switch handle Angle adjustment handle Main handle Trimmer head Battery pack Flower guard Auxiliary handle Cutting device (blade) Handle lock nut Angle adjustment button Handle support Edging function wheel Locking sleeve (length adjustment) Safety guard Telescopic pole Blade pendant...
  • Page 11 ASSEMBLY WARNING: Remove the battery pack before transporting the tool, performing cleaning or maintenance, fitting the plant guard, or making any adjustments to the tool, especially around the string head. Attaching or Replacing Blade Place the wider eyelet of the cutting blade over the metal stud and firmly pull until the blade is completely seeded on the stud.
  • Page 12 Fitting and Removing the Battery The battery should always be removed whenever you are not using the tool and especially when you are adjusting or transporting the tool to avoid accidental operation. • Insert the battery: Slide it into the grass trimmer until it latches into place. Check that the battery is securely locked into place (Figure 5).

  • Page 13: Operation

    OPERATION Charging Important: The battery pack is not fully charged at the factory. Before attempting to charge it, thoroughly read all the safety instructions. Ensure that the charger you use is compatible with the battery pack. Plug the charger plug into the charging port of the battery pack. Plug the charger into a standard electrical outlet.
  • Page 14 Temperature Guidelines for Charging: • Caution: Avoid charging batteries in temperatures below 4.5°C or above 40.5°C. • Optimal Conditions: Best performance and battery life are achieved when charged at an air temperature around 24°C. • Tool Temperature Limits: Charging will not occur if the tool's temperature is below 0°C or above 45°C.
  • Page 15 Starting/Stopping the Trimmer Before operating this tool, ensure that the guard is fitted to the head. Never use the machine without the guard. • To switch the trimmer on, first push forward the unlock knob (1) and then hold the switch handle (2).
  • Page 16 Adjusting the Trimmer Head Angle The angle of trimmer head can be set to different working positions. There are 3 pre-set lock positions. Press the angle adjustment button (15) with one hand and rotate the trimmer head (12) to the required position. Release the button and the head will lock into place.
  • Page 17 Trimming Mode There are 2 working modes: normal trimming (Figure 14) and edging (Figure 15). Figure 14 Figure 15 To use the trimmer in edging mode, as shown in Figure 16, slide the lock sleeve and edging function button (10) and rotate the lower part of the trimmer 90° until the button aligns with the angle adjustment handle (11).

  • Page 18: Cleaning And Care

    CLEANING & CARE • Before Maintenance or Cleaning: Always disconnect the battery pack from the trimmer to ensure safety. • Storage: When not in use, store the trimmer out of reach of children to prevent unauthorised access and potential accidents. •...

  • Page 19: Specifications

    SPECIFICATIONS Rated voltage 20V DC No load speed 8500rpm Cutting device Trim fast blade Cutting diameter 10”/250mm Weight (with battery pack) 2.0kg Guaranteed sound power level 92 dB(A) Battery pack Lithium Ion – 1500mA...
  • Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
