EG4 18 kPV DONGLE Recovery Manual

Hide thumbs Also See for 18 kPV DONGLE:

Download this manual

E G 4 ® 1 8 k P V D O N G L E

R E C O V E R Y G U I D E

Need help?

Do you have a question about the 18 kPV DONGLE and is the answer not in the manual?

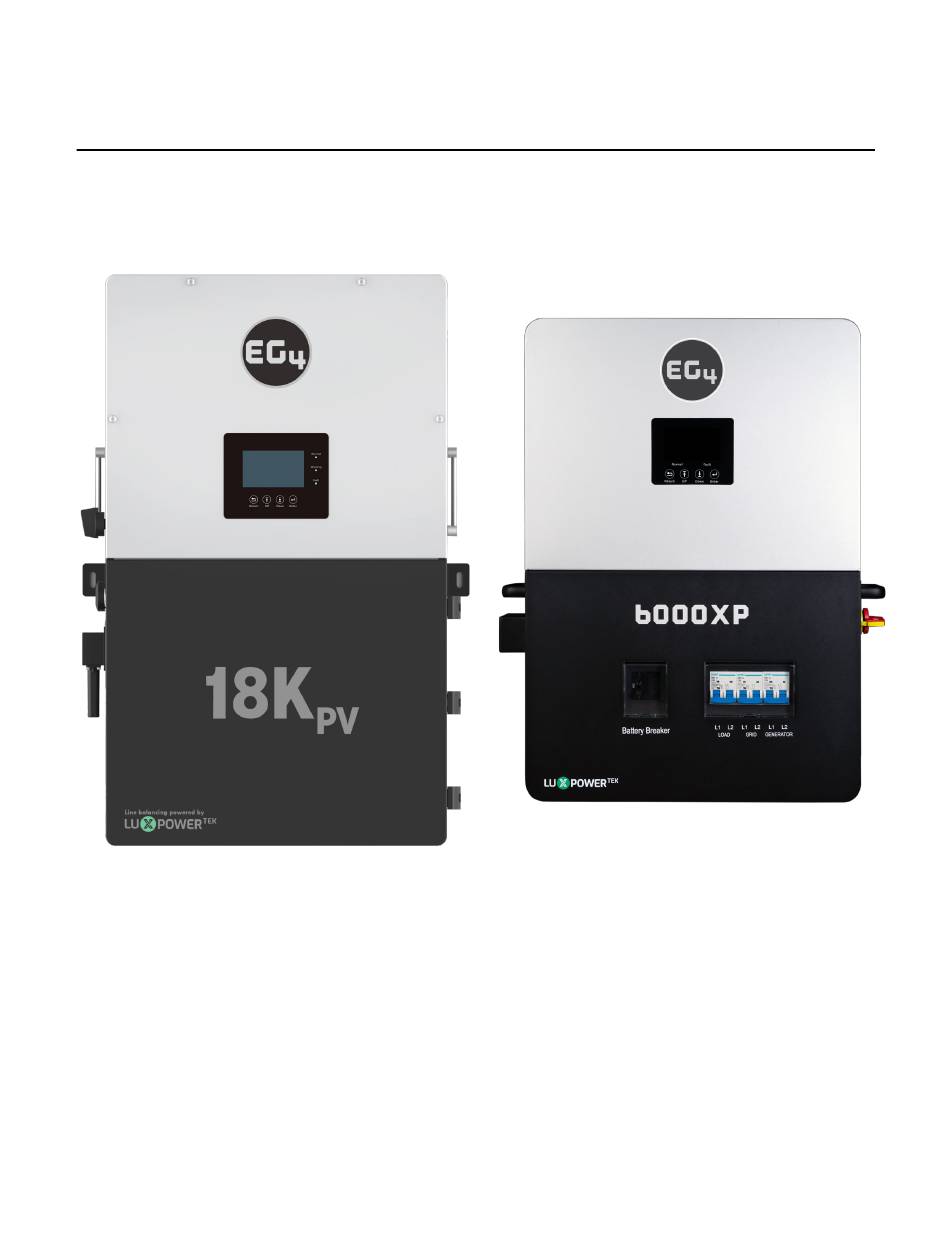

Page 2 “BA” after being reset to factory settings. Please read the guide in its entirety before performing the steps listed below. Step 1 Connect the dongle to the inverter’s Wi-Fi dongle port as shown below. The EG4 18kPV is shown in ®...
Page 3 Step 4 Enter 10.10.10.1 into the browser address bar. Both the username and the password are admin. After logging in, select the language on the right side. Step 5 Select the “Wifi Mode Select” option on the left-hand side of the screen. From here, select “AP and Station”...
Page 4 Step 7 Navigate to the “Network Setting” page. Under “Network Connection 1 Setting”, enter the following data and save. Protocol: TCP Client • • Remote Port: 4346 Server Address (IP or domain) 3.101.7.137 • Under “Network Connection 2 Setting”, enter the following data and save. See image below. Protocol: TCP Server •...
