TP-Link Festa FR365 Installation Manual

Installation Guide
AX3000 Gigabit VPN Router
Note: The image may differ from the actual product.
Hardware Overview

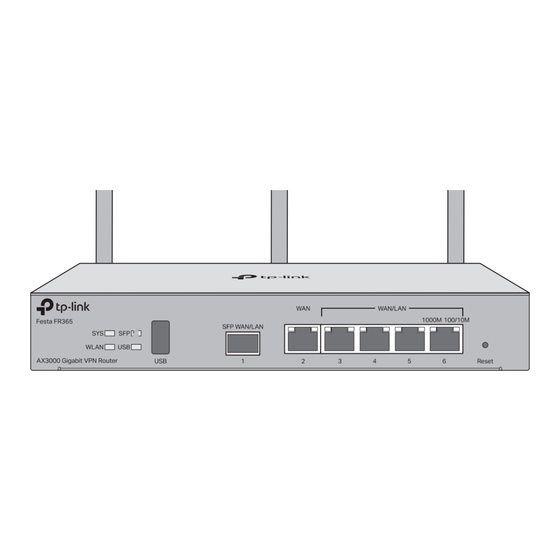

Front Panel
LED
Reset: Press and hold the button for 5 seconds, the SYS LED will flash
quickly, indicating the device is being reset to its factory default
settings.
Description
USB 3.0 for USB modem and USB storage device.
Gigabit SFP WAN/LAN port connecting to an SFP module.
By default, it is a WAN port.
You can configure it to a LAN port on the management page.
Gigabit RJ45 WAN port.
Gigabit RJ45 WAN/LAN ports.
By default, they are LAN ports connecting to local PCs or switches.
You can configure each port to a WAN port on the management page.
Secure the lock (not provided) into the security slot to prevent the
device from being stolen.
The router comes with a lightning protection mechanism.
Connect to the power outlet via the provided power adapter.
Hardware Connection
1. Attach the antennas.
2. Use the charger provided
in the package to power
on the router.
4. Wait until the SYS LED flashes slowly and the
WLAN LED turns solid, indicating the router is
ready for setup.
To ask questions, find answers, and communicate with TP-Link users or
engineers, please visit https://community.tp-link.com/business to join
TP-Link Community.
For technical support, the user guide and other information, please visit
https://www.tp-link.com/support/?type=smb, or simply scan the QR code.
© 2024 TP-Link 7106510997 REV1.0.0
Back Panel
Kensington
Security Slot
Grounding Terminal
Indication
Slow Flashing: System is running normally.
Quick Flashing: The router is being reset.
On/Off: System is starting up or running abnormally.
On: Wireless networking is enabled.
Off: Wireless networking is disabled.
On: Running at 1000 Mbps, but no activity.
Off: No device is linked to the corresponding port.
Flashing: Running at 1000 Mbps, and transmitting or receiving data.
For USB Modem:
Flashing: A modem is connected, and it is initializing.
On: The modem is loaded.
Off: No modem is inserted, or it is corrupted or incompatible.
For USB Storage:
On: A USB storage device is inserted and identified.
Off: No USB storage device is inserted, or it is corrupted or incompatible.
Green On: Running at 1000 Mbps, but no activity.
Green Flashing: Running at 1000 Mbps, and transmitting or receiving data.
Green Off: Not running at 1000 Mbps, or no device is connected to the
corresponding port.
Green
Yellow On: Running at 100/10 Mbps, but no activity.
Yellow Flashing: Running at 100/10 Mbps, and transmitting or receiving data.
Yellow
Yellow Off: Not running at 100/10 Mbps, or no device is connected to
the corresponding port.
3. Connect the router via Ethernet.
Modem
Connect to Port 2
Note: To connect to the internet via another RJ45 WAN port (ports 3-6),
configure your desired port to WAN, then connect the port to the internet via
an RJ45 cable. Refer to FAQ-Q1 for more details.
3. Connect the router via fiber network.
Connect to SFP WAN Slot
SFP Module
Power Socket
Or
Fiber-Optic Cable
