- Page 1 F900 Plus Wireless Electronic Fence User Manual Version: WT-F900PLUS-V2...
-
Page 2: Table Of Contents
Table of Contents I: Getting to Know the Product 1.Product Overview and Introduction 2.Component List 3.Button Descriptions 4.Contact Points Installation II: Explanation of the Functions and Operation 1.Power On/Off 2.Steps for Pairing the Transmitter and Receiver 3.Introduction and Usage of the Fence Mode 3.1 Working Principle of Training Mode 3.2 Fence Mode Interface Introduction 3.3 Fence Mode Operation... -
Page 3: I: Getting To Know The Product
I: Getting to Know the Product 1. Product Overview and Introduction The F900 Plus Wireless Electronic Fence incorporates high-precision radar ranging technology and boasts a versatile 3-in-1 system, comprising a fencing system, a training system, and a forbidden zone system. It caters to a range of training scenarios, including home etiquette, obstacle avoidance, and safe area training. - Page 4 Static stimulation test light Type-C charging cable Contact points for short hair 2 pairs and long hair F900 Plus Wireless Electronic Fence User Manual User Manual Version: WT-F900PLUS-V1 F900 Plus Wireless Electronic Fence TRAINING GUIDE Training Guide Version: WT-F900PLUS-V1 Remote Holder...
-
Page 5: Button Descriptions

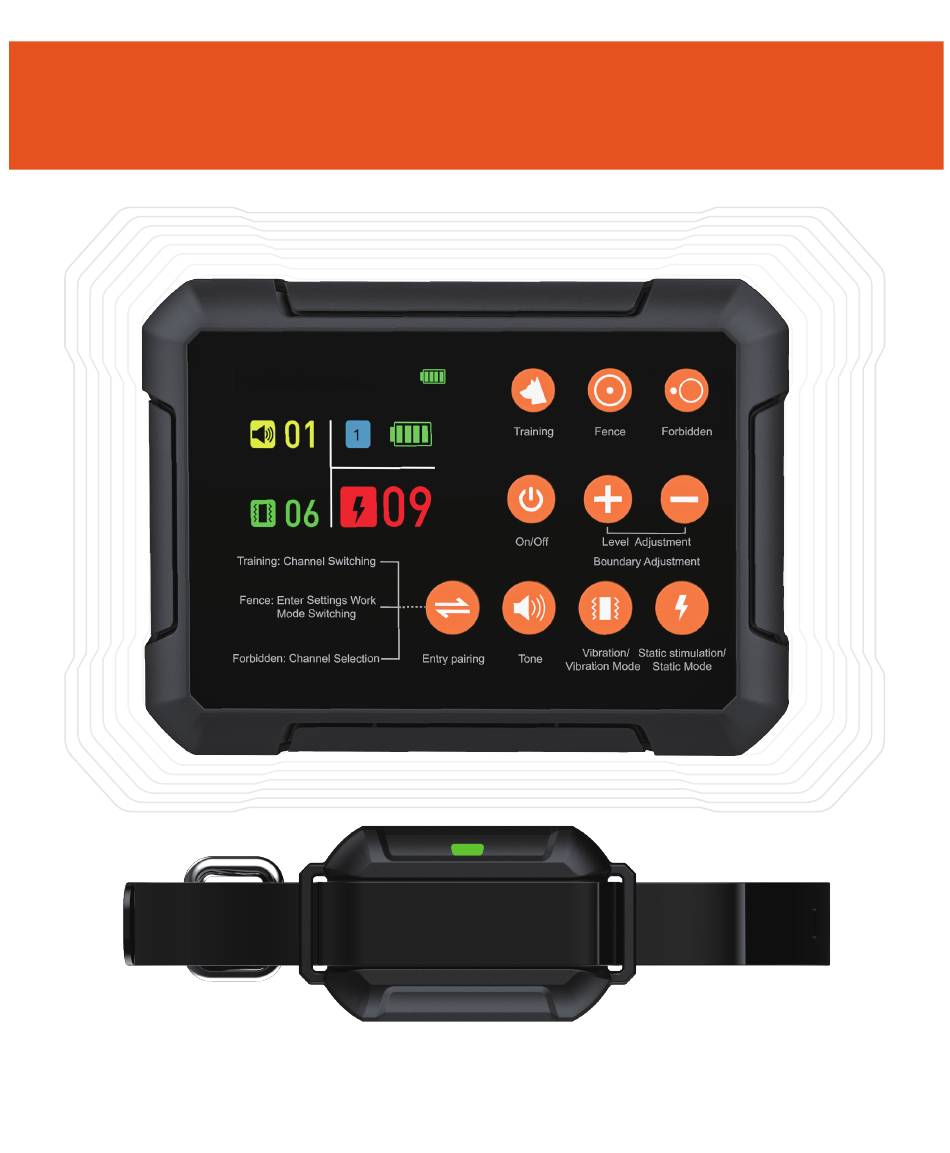

3.Button Descriptions Training Mode Button: Activates training mode. Power Button: Fence Mode Button: Initiates fence mode To turn device on and off. Forbidden Mode Button: Activates forbidden zone mode. +/- Button: Adjusts boundary distance Training Fence Forbidden and vibration (in fence and forbidden modes)/ or static intensity levels (in training mode) On/Off... -
Page 6: Contact Points Installation
Receiver LED Indicator Power On Green light flashes. Power Off Red light flashes twice and then turns off No Signal A flashing red light indicates no signal Pairing The green light flashes for 15 seconds 4. Contact Points Installation Install the Tighten the contact Take test light contact points... -
Page 7: Steps For Pairing The Transmitter And Receiver
Receiver: Press the power button once to turn on, and hold for 2 seconds to turn off. It emits a beep and displays a green light when turning on, and beeps twice with a flashing red light when turning off. DC 5V 2A Pull 2. - Page 8 Step 3: To complete pairing, press any of the tone, vibration, or static stimulation button on the transmitter within 15 seconds. Upon successful pairing, the transmitter's interface will switch back to the main screen, and the receiver will emit a beep with a slow flashing green light.
-
Page 9: Introduction And Usage Of The Fence Mode
3. Introduction and Usage of the Fence Mode 3.1 Working Principle of Fence Mode The operation of the Fence Mode is based on establishing an invisible circular boundary around the transmitter, with a radius ranging from 10 feet to 120 feet. When the dog, equipped with the receiver, approaches or crosses this boundary, the receiver emits alerts, prompting the dog to return to the designated safe area. - Page 10 Receiver will initiate a progressive warning. Max 120FT Returning inside the boundary instantly stops the warning. No Signal Alert: In areas with no signal coverage, the transmitter will indicate this. No warnings will be triggered on the receiver in no-signal areas, ensuring the safety of your pet. Simply ensure that the boundary line is set within an area covered by the signal.
-
Page 11: Fence Mode Interface Introduction
3.2 Fence Mode Interface Introduction Displays the distance between the receiver and transmitter, which changes as they move. Supports displaying the positions of up to three receivers. The pre-set distance DOG FENCE SYSTEM for the established fence. Boundary Displays working Working Mode: status and battery Working... -
Page 12: Fence Mode Operation
3.3 Fence Mode Operation ①To enter the fence mode, press the Fence button. ②Press the Pairing button to select test mode or working mode. ③Press the vibration/static buttons to choose the warning mode. ④Press the +/- buttons to adjust the boundary distance between the transmitter and the receiver by pressing (10-120Ft). -
Page 13: Setting The Fence Boundary
3.4 Setting the Fence Boundary 1.This product establishes a wireless circular fence boundary using the transmitter as the center point and sets a specific radius distance. 2.The boundary radius can be adjusted using the +/- buttons. The minimum setting is 10 feet, and the maximum setting is 120 feet, creating a circular boundary. - Page 14 Additionally, obstacles in various environments, including indoors, outdoors, mountains, and buildings, can lead to signal attenuation, which may affect the product's effectiveness. It's important to note that while these factors may affect signal accuracy to a minor extent, typically resulting in only around a 5% deviation, the product can still operate reliably.
-
Page 15: Introduction To The Test Mode
Table Wall Rainy days Signal interference ON PAIRING..SEARCH RESULTS FOR COLLAR Training Fence Forbidden PRESS THE T,V OR S BUTTON TO COMFIRM ON PAIRING..On/Off Level Adjustment SEARCH RESULTS FOR COLLAR Training: Channel Switching Boundary Adjustment Training... - Page 16 Transmitter Training Fence Forbidden On/Off Level Adjustment Training: Channel Switching Boundary Adjustment Fence: Enter Settings Work Mode Switching Vibration/ Static stimulation/ Forbidden: Channel Selection Entry pairing Tone Vibration Mode Static Mode 3 FT 3 FT The logic behind the test is to identify the maximum stable signal range in all desired directions where you plan to contain your dog.
- Page 17 100FT 150FT 120FT 120FT 120FT Note: If you have a small property with the intended radius well within 100 feet (for instance, 50 feet), there's no need to find the maximum signal range, as it's very likely to reach your desired boundary.
-
Page 18: Introduction And Usage Of The Forbidden Zone Mode
B.The observer notes when "No Signal" appears, indicating the signal free area, and records the distance before signal loss. C.The person with the receiver moves slowly in one direction. When the receiver beeps, indicating no or unstable signal, move back slightly until the beeping stops to find the stable signal position. D.Repeat the steps for other directions as needed. -
Page 19: Forbidden Zone Mode. Introduction
ON PAIRING..SEARCH RESULTS FOR COLLAR Training Fence Forbidden PRESS THE T,V OR S BUTTON TO COMFIRM On/Off Level Adjustment Training: Channel Switching Boundary Adjustment Fence: Enter Settings Work Mode Switching Vibration/ Static stimulation/ Forbidden: Channel Selection Entry pairing Tone Vibration Mode... -
Page 20: Forbidden Zone Mode Operation
4.3 Forbidden Zone Mode Operation Press the Forbidden area button to activate this mode. The home screen displays the barrier mode icon, vibration or static mode, and the dog(s) forbidden from entering. Choose which dogs are prohibited from entering the area by pressing the Channel Selection button: Dog 1, Dog 2, Dog 3, Dog 1+2, Dog 1+3, Dog 2+3, or ALL DOG. -
Page 21: Introduction And Usage Of The Training Mode
e) Garden or Flowerbeds: Protect your plants from digging or trampling. f) Child's Play Area: Create a safe zone for children without pet interference. g) Specialized Rooms: Secure sensitive areas like music studios or home theaters ON PAIRING..SEARCH RESULTS FOR COLLAR Training Fence... -
Page 22: Training Mode. Introduction
5.2 Training Mode. Introduction Tone 01: Indicates level 1 (non-adjustable) Displays the battery level of the transmitter. Shows the battery level of the receiver in channel 3 and its reception of training commands, with three channels available for switching. Static Stimulation: Indicates the static level, adjustable up to 16 levels Vibration : Indicates the vibration level, adjustable up to 8 levels The F900PLUS training mode has a transmission range of 330 yards. -
Page 23: Iii: Charging Instructions
III: Charging Instructions 1) While the transmitter is charging, the battery icon srolls. When it is fully charged, the screen turns off. 2) The indicator light flashes red during charging and turns green when fully charged. 3) The transmitter takes approximately 6-7 hours to fully charge. 4) The receiver takes about 3-4 hours to fully charged. - Page 24 How to test the static stimulation function？ Training Mode: Attach the static test light and press the static button to test its functionality. Fence and Forbidden Zone Modes: Attach the test light to the static post. If the light activates upon exiting the fence boundary or entering the forbidden area, the static feature works correctly.
-
Page 25: Iv: Wearing Methods And Precautions
IV: Wearing Methods and Precautions 1.Wearing methods Please ensure the dog is in a comfortable standing position and that ① the receiver is turned off before putting it on. Please position the receiver in the middle of the dog's neck with the power button facing upward and the ②... - Page 26 2.Wearing precautions Prolonged or tight collar wearing may cause skin irritation to your dog, which must be avoided. Ensure your dog does not wear the collar continuously for more than 12 hours a day. Reposition the collar on your pet's neck every 1 to 2 hours. Regularly check the collar's tightness to prevent excessive pressure.
-
Page 27: V: Frequently Asked Questions
V: Frequently Asked Questions Question Analyse/Suggestions Static stimulation is very safe, with intensity similar to a mild static stimulation, posing no 1.Is static harm to pets. stimulation safe If you or your pet are sensitive to static to use? stimulation, you can opt for the vibration mode, which does not include static warnings. - Page 28 Question Analyse/Suggestions Test mode is primarily for checking signal 5.What are the stability and does not set up a fence boundary. differences between During testing, the pet collar will only alert if the test mode and the signal is lost. Before regular use, switch working mode? to working mode and set the fence boundary.
- Page 29 Question Analyse/Suggestions 9.How accurate is The main unit displays the straight-line the distance distance, which may have a slight margin of displayed on the error. Use test mode to accurately determine main unit? fence boundaries. 10.What are the The main unit should be placed at the center recommended of the fence for optimal coverage.
- Page 30 Question Analyse/Suggestions 13.Can this This product is specifically designed for dogs product be used due to their intelligence and adaptability. It is with other animals not recommended for use with cats or other such as cats, cows, livestock, as their behaviors and reactions or sheep? may differ significantly from those of dogs.
- Page 31 Question Analyse/Suggestions Ensure the device is in working mode. Warnings for crossing boundaries are only 16.Why does the activated in this mode. system sometimes not give a warning Verify the boundary settings to ensure they when the signal is meet your requirements. fine, but the boundary is If the main unit is moved, the fence boundary...
- Page 32 Question Analyse/Suggestions 19.What happens When the main unit has no power, the collar to the collar when will not function. However, the collar can still transmitter runs out be used normally while the main unit is being of battery? charged. Using a 5V2A charger, it takes about 6-7 hours to fully charge the main unit and 3-4 20.What is the...
-
Page 33: Vi: About After-Sales
Question Analyse/Suggestions 23.Is it possible to Training, fence, and forbidden zone functions use multiple cannot be used simultaneously. Choose one features at the feature based on your specific needs. same time? The collar receiver is waterproof, but the 24.How waterproof main control unit is not. -
Page 34: Vii: Compliance
2.If the device becomes defective after 30 days from the date of purchase, but before the end of the 1-year warranty period, the customer will be required to ship the device back to the factory at their own expense. We will test and replace any faulty parts, then return the device to you free of charge. -
Page 35: Viii: Fcc Warning
Disposal of package: The package shall be disposed by type.Disposed as waste papers for cardboards and cartons Recycling for packaging cases. Disposal system: The disposal system shall be applicable to EU and other European countries and capable of collecting recyclable materials by category. VIII: FCC Warning This device complies with part 15 of the FCC Rules. - Page 36 If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna.
