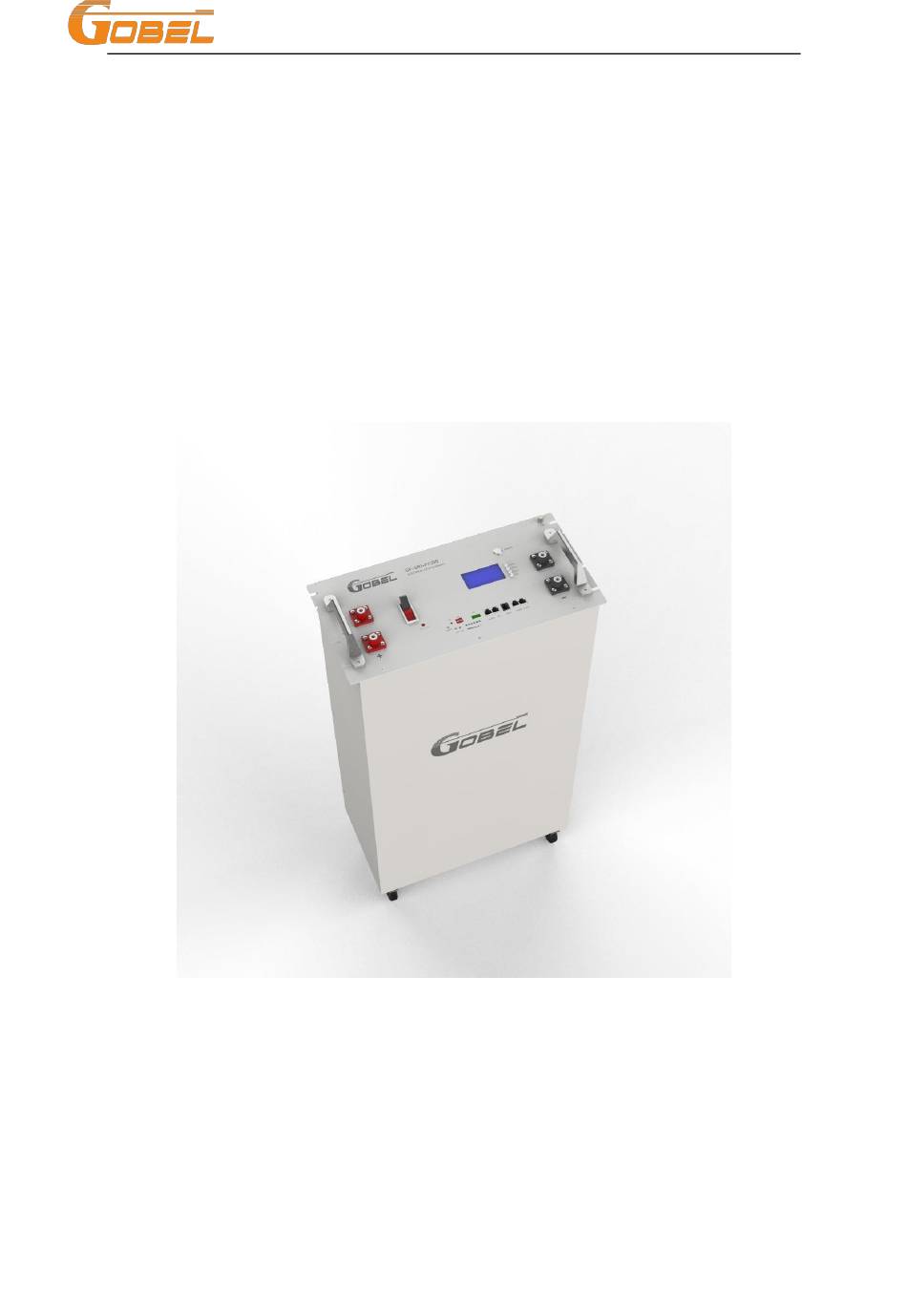

- Page 1 2024-05-28 V1 GP-SR1-PC200-DIY KIT ASSEMBLING MANUAL...
- Page 2 2024-05-28 V1 Contents Before Assembling.............................. 1 GP-SR1-PC200-DIY Part List........................... 3 Assemble Modules............................17 Steps to Assemble Modules Together...................... 22...
-
Page 3: Before Assembling
2024-05-28 V1 Before Assembling. Before Assembling 1 / 28... - Page 4 2024-05-28 V1 Torque Requirements: M6: 8N.m M8: 15N.m M10: 15-20N.m Tools Needed (Not Included): Phillips screwdriver (M3, M4, M5) Allen wrench (M6, M8) Hex socket wrench (M6, M8) Silicone thermal glue Anaerobic threadlocker (Optional) Before Assembling 2 / 28...
-
Page 5: Gp-Sr1-Pc200-Diy Part List
2024-05-28 V1 GP-SR1-PC200-DIY Part List. GP-SR1-PC200-DIY Part List 3 | 28... - Page 6 Part Model 280 Cell Busbar (Long) BUSBAR-280AH-L Part Name Part Model 280 Cell Busbar (Short) BUSBAR-280AH-S Part Name Part Model M3 Single Hole Pad BARSBAR-SQ Part Name Part Model SR1 Main Terminal Busbar BUSBAR-SR1-M GP-SR1-PC200-DIY Part List 4 | 28...
- Page 7 GP-SR1 Orange B+ Cable GP-SR1-CABLE-B+ Part Name Part Model GP-SR1 Orange P+ Cable GP-SR1-CABLE-P+ Part Name Part Model A7-P PC200 M6-M5 Black B- Cable PC200-CABLE-M6-M5-B- Part Name Part Model A8-P PC200 M6-M5 Black P- Cable PC200-CABLE-M6-M5-P- GP-SR1-PC200-DIY Part List 5 | 28...
- Page 8 2024-05-28 V1 Part Name Part Model 250A Circuit Breaker YS-BREAKER-1P250A Part Name Part Model M8 200A Main Terminal TERMINAL-M8-200A GP-SR1-PC200-DIY Part List 6 | 28...
- Page 9 2024-05-28 V1 Part Name Part Model GP-SR1 Heating Pad GP-SR1-HEAT-PAD Part Name Part Model GP-SR1 Battery Case GP-SR1-CASE-V2 GP-SR1-PC200-DIY Part List 7 | 28...
- Page 10 2024-05-28 V1 Part Name Part Model GP-SR1 Cell Compression Plate GP-SR1-CELL- COMPRESS-PALTE-V2 Part Name Part Model GP-SR1 Press Bar GP-SR1-PRESS-BAR-V2 Part Name Part Model C4-P GP-SR1-PC200 BMS Mounting Plate GP-SR1-PC200-FIX-PLATE-V2 GP-SR1-PC200-DIY Part List 8 | 28...
- Page 11 2024-05-28 V1 Part Name Part Model 250A Circuit Breaker Holder YS-BREAKER-1P250A-HOLDER Part Name Part Model C6-P GP-SR1-PC200 Front Panel GP-SR1-PC200-FRONT-PANNEL-V2 GP-SR1-PC200-DIY Part List 9 | 28...
- Page 12 2024-05-28 V1 Part Name Part Model GP-SR1 Battery Cover GP-SR1-COVER-V2 Part Name Part Model Wall Mounting Bracket GP-SR1-WALL-HOLDER Part Name Part Model Silicone Cap LMJ-SC-M8.5-19 GP-SR1-PC200-DIY Part List 10 | 28...
- Page 13 2024-05-28 V1 Part Name Part Model D2-232 RS232 Cable RS232-15 Part Name Part Model M8 200A Main Terminal Cover TERMINAL-M8-200A-COVER Part Name Part Model Wheel CMCL-2IN-40KG GP-SR1-PC200-DIY Part List 11 | 28...
- Page 14 2024-05-28 V1 Part Name Part Model Compress Foam FOAM-280 Part Name Part Model Handle GP-SR1-HANDLE Part Name Part Model Epoxy Sheet for Case GP-SR1-CASE-EPOXY GP-SR1-PC200-DIY Part List 12 | 28...
- Page 15 2024-05-28 V1 Part Name Part Model Epoxy Sheet for Top GP-SR1-TOP-EPOXY Part Name Part Model 4A Bluetooth Active Balancer GP-AB-4A GP-SR1-PC200-DIY Part List 13 | 28...
- Page 16 2024-05-28 V1 Part Name Part Model Balancer Voltage Detection Cable BALANCER-LEADS-4A Part Name Part Model PC200 BMS Main Board GP-PC200-BMS-MAIN-BOARD Part Name Part Model PC200 BMS Communication Board GP-PC200-BMS-COM-BOARD GP-SR1-PC200-DIY Part List 14 | 28...
- Page 17 2024-05-28 V1 Part Name Part Model BMS Voltage Detection Cable PC200-BMS-LEADS Part Name Part Model M16 Low Voltage Switch BUTTON-SL-M16 Part Name Part Model PC200 BMS Screen GP-PC200-BMS-SCREEN GP-SR1-PC200-DIY Part List 15 | 28...
- Page 18 2024-05-28 V1 Screws GP-SR1-PC200-DIY Part List 16 | 28...
-
Page 19: Assemble Modules
2024-05-28 V1 Assemble Modules. Assemble Modules 17 | 28... - Page 20 2024-05-28 V1 Module 1 Parts Used Screw Used Case Module A11, C1, D4, D9 Put C1 on the foam as shown in the following picture. Install D4. Put Epoxy sheets (D9) around the case. Put A11 on top of D9. Assemble Modules 18 | 28...
- Page 21 2024-05-28 V1 Module 2 Parts Used Screw Used Cell Module A1, A2, A3, C2, C3, D7, D9 B4, B10, B13 Note: Cell terminal with black base is Positive. Assemble Modules 19 | 28...
- Page 22 2024-05-28 V1 Module 3 Parts Used Screw Used BMS Module C4-P, E1, PC1 Assemble Modules 20 | 28...
- Page 23 2024-05-28 V1 Module 4 Parts Used Screw Used C6-P, A4, A5, A6, A9, A10 Front Pannel Module B1, B4, B5, B10, B11, B13 C5, PC2, PC4, PC6 Assemble Modules 21 | 28...
-
Page 24: Steps To Assemble Modules Together
2024-05-28 V1 Steps to Assemble Modules Together. Steps to Assemble Modules Together 22 | 28... - Page 25 2024-05-28 V1 Step 1 Parts Used Screw Used Insert BMS Module B2, B4 Steps to Assemble Modules Together 23 | 28...
- Page 26 2024-05-28 V1 Step 2 Parts Used Screw Used Connect Cables on Cells E2, PC3 Use silicone thermal glue to secure the NTC in place. Steps to Assemble Modules Together 24 | 28...
- Page 27 2024-05-28 V1 Step 3 Parts (Module) Used Screw Used Connect A7-P and A8-P to BMS A7-P, A8-P Steps to Assemble Modules Together 25 | 28...
- Page 28 2024-05-28 V1 Step 4 Parts (Module) Used Screw Used Connect Cables to Front Pannel B10, B13 Put Front Pannel Module close to the battery case as shown in following picture Connect A8-P to A4. Connect cables in BMS and Balancer. Steps to Assemble Modules Together 26 | 28...
- Page 29 2024-05-28 V1 Step 5 Parts (Module) Used Screw Used Igniting Connect A7-P to the cell. Connect A5 to the cell. Connect red B+ cable on BMS. Turn on the battery, screen should be on and all readings should be right. If screen not on or readings wrong, check connections.
- Page 30 2024-05-28 V1 Step 6 Parts (Module) Used Screw Used Final Step C7, D8, D10 B2, B3, B8 Push Front Pannel Module in place. Tidy up cables. Install Handles (D8). Put D10 on top of cells. Install the cover (C7). Steps to Assemble Modules Together 28 | 28...
