Gobel GP-SR1-PC200 Owner's Manual

Power lifepo4 battery
Hide thumbs Also See for GP-SR1-PC200:
Table of Contents

Advertisement

Quick Links

GP-SR1-PC200
Owner's Manual
Gobel Power LiFePO4 Battery

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP-SR1-PC200 and is the answer not in the manual?

Questions and answers

Related Manuals for Gobel GP-SR1-PC200

Summary of Contents for Gobel GP-SR1-PC200

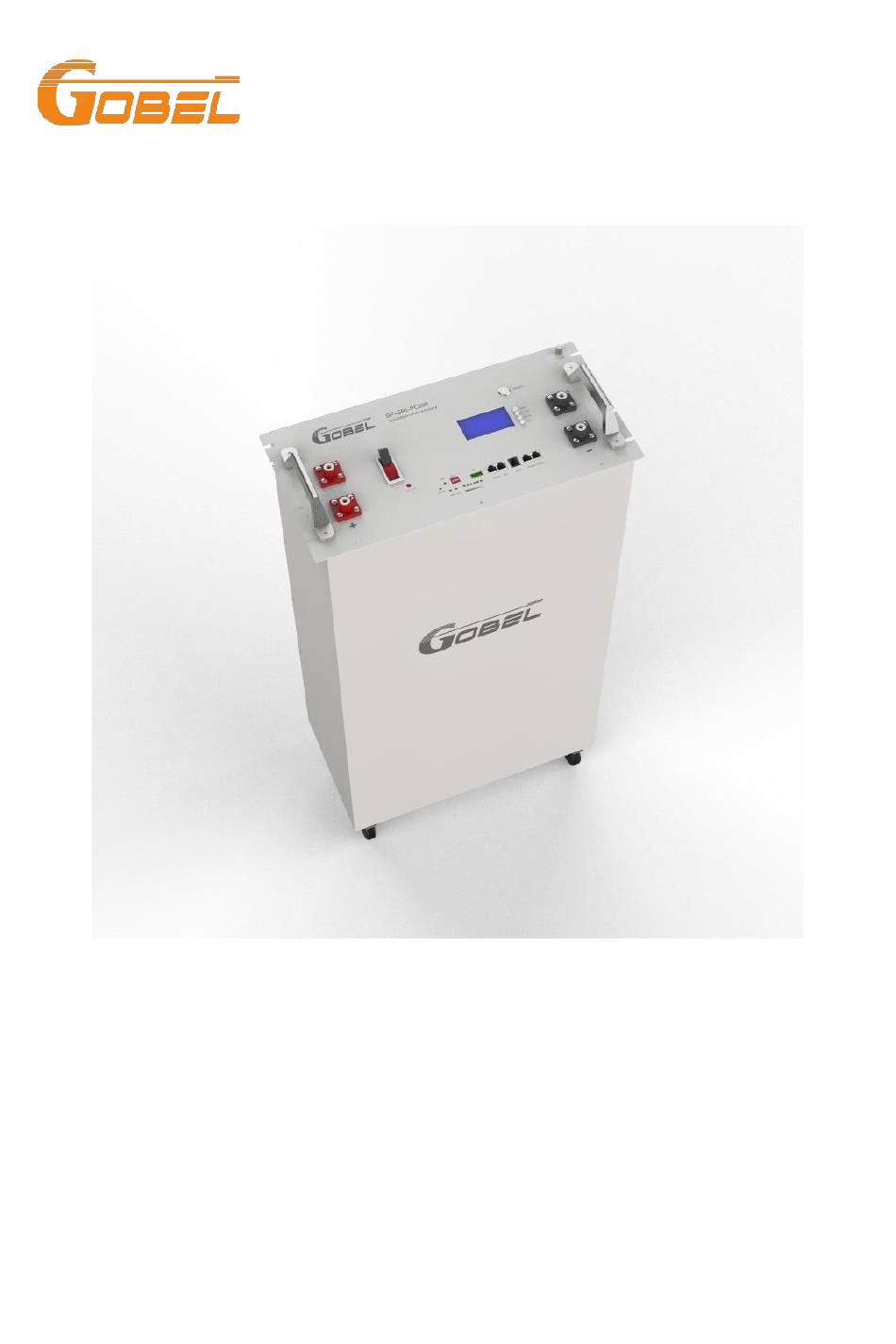

  • Page 1 GP-SR1-PC200 Owner’s Manual Gobel Power LiFePO4 Battery...

  • Page 2: Table Of Contents

    Table of Contents Information on this Document..............3 1.1. Validity ....................3 1.2. Target Group ..................3 1.3. Content and Structure of this Document ......... 3 1.4. Levels of Warning Messages ............. 3 1.5. Symbols in the Document ..............4 1.6.
  • Page 3 15. Contact Information ................32 16. Appendix ....................33 16.1. Configure BMS of Battery Module ..........33 16.2. ADS Table of DIP Switch ..............37 16.3. Designation of RS232, RS485 and CAN Ports......38 16.4. LED Indicator ..................40 GP-SR1-PC200 Owner’s Manual...

  • Page 4: Information On This Document

    1. Information on this Document 1.1. Validity This document is valid for the LiFePO4 battery module GP-SR1-PC200. 1.2. Target Group The instructions in this document may only be performed by qualified persons who must have the following skills: • Knowledge of how batteries work and are operated •...

  • Page 5: Symbols In The Document

    Indicates a situation which, if not avoided, can result in property damage. 1.5. Symbols in the Document Sections describing activities to be QUALIFIED PERSON performed by qualified persons only. 1.6. Designation in the Document Battery System GP-SR1-PC200 Battery Management System State of Charge GP-SR1-PC200 Owner’s Manual...

  • Page 6: Safety

    Alterations to the battery system, e.g., changes or modifications are not allowed unless the written permission of Gobel Power is achieved. Unauthorized alterations will void the guarantee and warranty claims. Gobel Power shall not be held liable for any damage caused by such changes.
  • Page 7 • Do not attempt to open, disassemble, repair, tamper with, or modify the battery modules. The battery modules are not user-serviceable. • Do not use cleaning solvents to clean the battery modules. GP-SR1-PC200 Owner’s Manual...
  • Page 8 • Wear suitable personal protective equipment for all work on the battery system. 2.2.6. Notice of Property Damage NOTICE Damage to the battery system due to under voltages • If the battery system doesn't start at all, please contact Gobel Power after-sales service within 48 hours.

  • Page 9: Scope Of Delivery

    3. Scope of Delivery A1x1 B1x2 B2x2 B3x2 C1x4 C2x2 GP-SR1-PC200 Owner’s Manual...
  • Page 10 D1x1 D2x1 Battery Module M6-60 Expanding Screw Wall Fixture M6 Screw and Nuts M8 Screw DC Power Cable (1m, M8) Inverter/Parallel Communication Cable BMS to Computer Communication Cable...

  • Page 11: Battery System Overview

    4. Battery System Overview 4.1. Battery System Description The GP-SR1-PC200 is used as a connected battery for the intermediate storage of excess PV energy in an inverter system. It has a built in BMS. The parameters and instruction of BMS could be read on the Appendix 16.2.

  • Page 12: Symbols On The System

    4.3. Symbols on the System Grounding Conductor This symbol indicates the position for connecting a grounding conductor. WEEE Designation Do not dispose of the system together with the household waste but in accordance with the disposal regulations for electronic waste applicable at the installation site. Keep dry.

  • Page 13: Installation

    5.1.2. Tools The tools in the following table could be needed during the installation. Tape Measure Wrench Drill Screwdrive 5.1.3. Safety Gear It is recommended to wear the following safety gear when dealing with the battery system. GP-SR1-PC200 Owner’s Manual...

  • Page 14: Installation

    Gloves Safety Shoes Safety Goggles 5.2. Installation QUALIFIED PERSON CAUTION Risk of injury due to weight of the battery module Injuries may result if the battery module is lifted incorrectly or dropped while being transported or installed. • Transport and lift the battery module carefully. Take the weight of the battery module into account.
  • Page 15 Screws (B1). Push up locks on the wheels to unlock. Move Battery Module (A1) to the place between two Wall Fixtures (B2). Use M6 Screws and Nuts (B3) to fix Battery Module (A1) on the Wall Fixtures (B2). GP-SR1-PC200 Owner’s Manual...
  • Page 16 Push down locks on the wheels to lock.

  • Page 17: Electrical Connection

    6. Electrical Connection 6.1. Overview of the Connection Area 6.2. Connection Diagram 6.2.1. One Battery Module GP-SR1-PC200 Owner’s Manual...
  • Page 18 Turn ADS to [ON,OFF,OFF,OFF]. 6.2.2. Multiple Module If total Charge Current and Discharge Current is below 200A: Turn ADS of each Battery Module to correspondent address according to Appendix 16.2.

  • Page 19: Data Cable Connection

    Data cable requirements: The cable length and quality affect the quality of the signal. Observe the following cable requirements. • Cable category: Cat5, Cat5e or higher • Plug type: Metal Shielded RJ45 of Cat5, Cat5e or higher GP-SR1-PC200 Owner’s Manual...
  • Page 20 • Shielding: Yes • UV-resistant for outdoor use • Straight- through wired cables Maximum cable length: 10 m. Procedure: Read the designation of the INVERTER port on Appendix 16.3 and the inverter manual, and decide whether to modify the data cable. The designation of INVERTER port on Battery Module could be read in Appendix 16.3.

  • Page 21: Dc Connection

    • Conductor cross-section: 35mm. Please choose the correct one according to application and also the requirements of the inverter manufacturer. • Maximum cable length: 10 m Procedure Turn Circuit Breaker Off. Remove the protective covers on the terminals of Battery Module. GP-SR1-PC200 Owner’s Manual...
  • Page 22 Use M8 Screw (C1) to connect Red Power Cable (C2) with any of two positive ( +, Red) terminals of Battery Module. Use M8 Screw (C1) to connect Black Power Cable (C2) with any of two negative ( -, Black) terminals of Battery Module. Mount protective covers on the terminals of Battery Module.

  • Page 23: Commissioning

    Press down the ON/OFF button of Battery Module. Plug RJ12 terminal of BMS to PC Communication Cable (D2) in RS232 port of Battery Module and connect USB terminal with computer. Open Gobel PC BMS Tools software and set communication protocol according to inverter.
  • Page 24 manufacturer’s instruction. If the battery information could be read correctly, it means the connection between the battery system and the inverter is all right, and the battery system is ready to work.

  • Page 25: Operation

    2) switch off the battery; 3) switch off the air switch between the battery and the inverter if there is any. The way to switch off the battery system is to press the ON/OFF Button on the Battery Module. GP-SR1-PC200 Owner’s Manual...

  • Page 26: Decommissioning

    9. Decommissioning QUALIFIED PERSON CAUTION Risk of injury due to weight of the battery module Injuries may result if the battery module is lifted incorrectly or dropped while being transported or installed. • Transport and lift the battery module carefully. Take the weight of the battery module into account.

  • Page 27: Extension

    4. Add the new module and connect it with other battery modules. 5. Switch on the breaker between the inverter and the battery system if there is any. 6. Switch on and configure the battery system. 7. Start the inverter. GP-SR1-PC200 Owner’s Manual...

  • Page 28: Troubleshooting

    11. Troubleshooting 11.1. LED Light Designation for Errors Please check Appendix 16.4 for detailed information. 11.2. The battery system is not able to be turned on or off Contact with Gobel Power after-sales service.

  • Page 29: Maintenance And Storage

    Relative Storage humidity of the environment Storage time storage temperature environment Not allowed Below -10℃ 5%~70% ≤ 12 months 25%≤SOC≤60% -10~25℃ 5%~70% ≤ 6 months 25%≤SOC≤60% 25~35℃ 5%~70% ≤ 3 months 25%≤SOC≤60% 35~50℃ Not allowed Above 50℃ GP-SR1-PC200 Owner’s Manual...

  • Page 30: Disposal Of The Battery System

    • Do not dispose of the battery system with your household waste. • Avoid exposing the batteries to high temperatures or direct sunlight. • Avoid exposing the batteries to high humidity or corrosive atmospheres. • For more information, please contact Gobel Power.

  • Page 31: Technical Parameters

    Round-Trip Efficiency ≥95% Scalability Max. 15 Modules in Parallel (215 kWh) Certification Applications ON Grid / ON Grid + Backup / OFF Grid Warranty [2] 10 Years Compatible Inverters Refer to Gobel Power PC-BMS Inverter Compatible List GP-SR1-PC200 Owner’s Manual...
  • Page 32 [1] DC Usable Energy, Test conditions: 100% DOD, 0.5 charge & discharge at + 25 °C. System Usable Energy may vary with different inverter brands. [2] Conditions apply. Refer to Gobel Power Limited Warranty.

  • Page 33: Contact Information

    15. Contact Information Gobel Power Global Service service@gobelpower.com WhatsApp: +86-13684942767 Address: No.829, XinHu Road 2140, BaoAn, Shenzhen, 518000, China https://www.gobelpower.com GP-SR1-PC200 Owner’s Manual...

  • Page 34: Appendix

    Configure BMS of Battery Module Additionally required mounting material: Data Cable (D2) Gobel PC BMS Tools Software Windows OS PC (In Control Pannel -> Regions, change Format to English (United States), otherwise, settings may not be saved successfully. DO NOT use Customize Format.)
  • Page 35 USB terminal of Data Cable in PC. PC will install driver automatically. Open “PbmsTools.exe” of Gobel PC BMS Tools Software. If connected successfully, a serial port will be detected. If no Serial port is detected, please check if Data Cable is connected well or Driver is installed successfully, or a valid Data Cable is used.
  • Page 36 If communication is established successfully, Battery Module data will be shown in the monitor. In System Config. tab -> Inverter Protocol section, click Read to get default settings.
  • Page 37 Choose proper Inverter Protocol from CAN or RS485 dropdown menu according to inverter. 10. Click Write to save settings. After save, click Read to check if settings are saved successfully. GP-SR1-PC200 Owner’s Manual...

  • Page 38: Ads Table Of Dip Switch

    16.2. ADS Table of DIP Switch DIP Switch allocates each Battery Module a unique id. It is needed for communication with inverter and communication between parallelly connected Battery Modules. Address Battery No Parallel Master B1 * For single battery module, if Address 0 cannot communicate with inverter, use Address 1 instead.

  • Page 39: Designation Of Rs232, Rs485 And Can Ports

    16.3. Designation of RS232, RS485 and CAN Ports 16.3.1. Designation of RS232 Port RS232: 6P6C RJ11 Terminal RJ11 Foot Definition 16.3.2. Designation of RS485 Port RS485: 8P8C RJ45 Terminal RJ45 Foot Definition GP-SR1-PC200 Owner’s Manual...
  • Page 40 16.3.3. Designation of CAN Port CAN: 8P8C RJ45 Terminal RJ45 Foot Definition 1,2,3,7,8 CANH CANL...

  • Page 41: Led Indicator

    Normal ● According to SOC ★ ★ Alarm ● Over Discharge Stop ● Protection Discharge Dis- Temperature, Charge Over Current, Short Circuit, Stop Reverse ● ● Discharge Connection, Faulty Protection Stop Faulty Faulty Charge & ● Discharge GP-SR1-PC200 Owner’s Manual...
  • Page 42 Charge SOC Light Discharge SOC Lights 0-16.6% ★ ● 16.6-33.2% ★ ● ● ● 33.2-49.8% ★ ● ● ● ● ● 49.8-66.4% ★ ● ● ● ● ● ● ● 66.4-83% ★ ● ● ● ● ● ● ● ● ●...
