Product overview

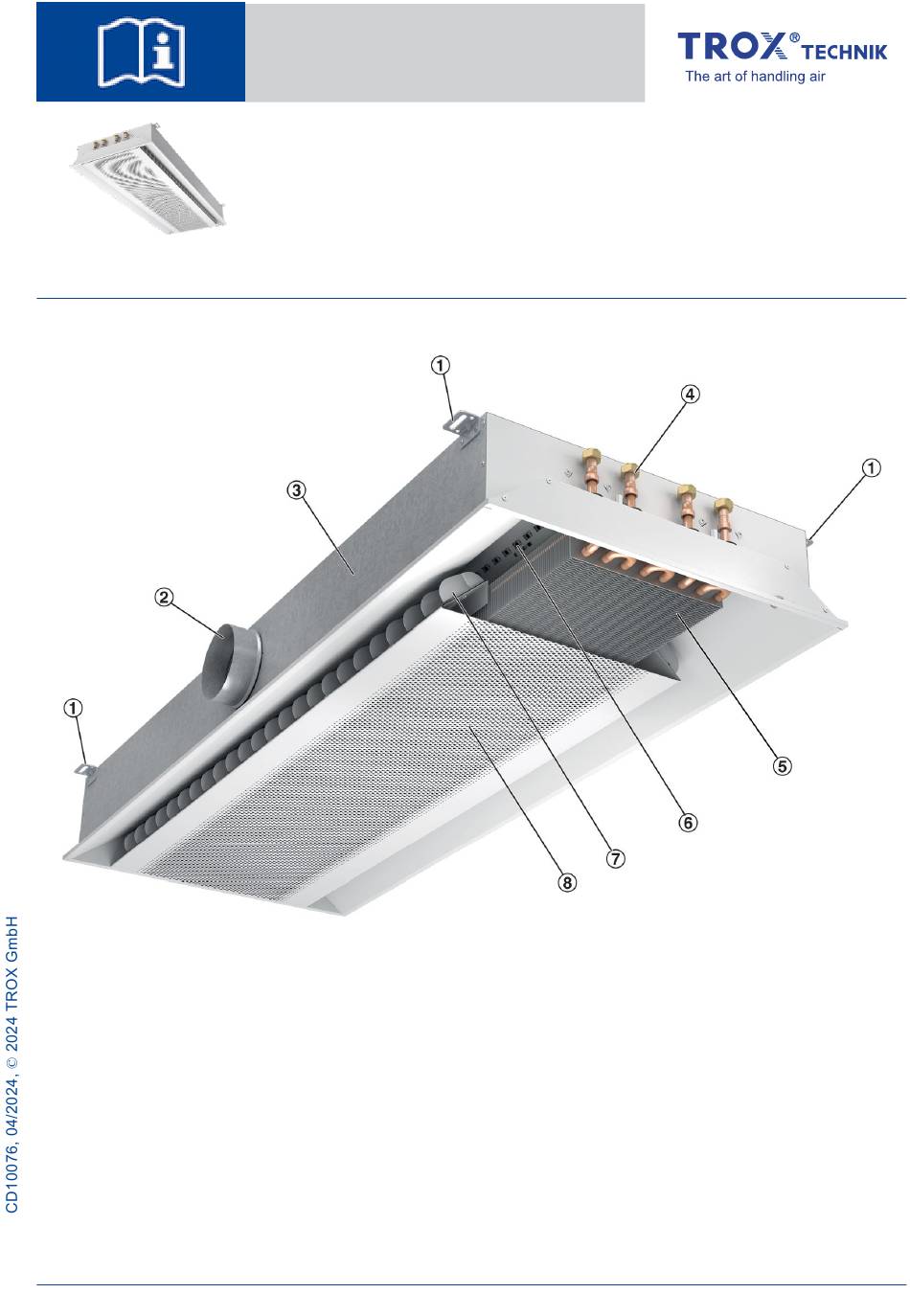

Fig. 1: Schematic illustration of DID642
Hanging brackets (4 pieces)
①
Primary air spigot
②
Casing
③
Water connections
④
Installation manual
Active chilled beams
Type DID642
Active chilled beams Type DID642
GB/en
Heat exchanger
⑤
Nozzles; illustration shows adjustable twin
⑥
nozzles (optional)
Air control blades (optional)
⑦
Induced air grille, hinged
⑧
TROX GmbH
Heinrich-Trox-Platz
D-47504 Neukirchen-Vluyn
Phone: +49 (0) 2845 202-0
Fax: +49 (0) 2845 202-265
E-mail: trox-de@troxgroup.com
Internet: http://www.trox-
technik.com
1
Advertisement
Table of Contents
Related Manuals for Trox DID642
Summary of Contents for Trox DID642
- Page 1 Fax: +49 (0) 2845 202-265 Active chilled beams E-mail: trox-de@troxgroup.com Internet: http://www.trox- technik.com Type DID642 Product overview Fig. 1: Schematic illustration of DID642 Hanging brackets (4 pieces) Heat exchanger ① ⑤ Primary air spigot Nozzles; illustration shows adjustable twin ②...
-
Page 2: General Information
Project-specific documents (if any) NOTICE! Potentially hazardous situation which, if not avoided, may result in property damage. ENVIRONMENT! Environmental pollution hazard. Tips and recommendations Useful tips and recommendations as well as information for efficient and fault-free operation. Active chilled beams Type DID642... - Page 3 Safety notes may refer to individual instructions. The general delivery terms apply to warranty In this case, safety notes will be included in claims. For purchase orders placed with TROX the instructions and hence facilitate following the GmbH, see "Section VI, Warranty Claims", of the instructions.
- Page 4 The work described in this manual has to be car- their assigned duties, understand any potential haz- ried out by individuals with the qualification, training, ards related to the work under consideration, and knowledge and experience described below: recognise and avoid any risks involved. Active chilled beams Type DID642...
-
Page 5: Technical Data
(55 °C, when using flexible connecting hoses) Minimum operating temperature 6 °C Dimensions and casing arrangement Fig. 2: Dimensional drawing of DID642 without additional casing; illustration shows DID642-4--...LR – 62 Ø12 mm pipe, plain tails ③ G½" external thread and flat seal ④... - Page 6 Technical data Fig. 3: Dimensional drawing of DID642 variants without additional casing – 62 = L – LN + 10 = L – LN + 52 Active chilled beams Type DID642...
- Page 7 Technical data Dimensions and casing arrangement with addi- tional casing Fig. 4: Dimensional drawing of DID642 with additional casing; illustration shows DID642-4--...RR-AV L – 62 Spigot arrangement with two primary air spi- ② gots (LN – 74) / 2 ③...
- Page 8 Technical data Fig. 5: Dimensional drawing of DID642 variants with additional casing L – 62 Primary air spigot ① Supply or extract air spigot (additional casing) ② (LN – 74) / 2 ((L – LN + 53) / 2) – 26...
- Page 9 Weight of contained water [kg] (diffuser face) [mm] (L × 22.0 kg/m) L [mm] 2700 2693 – 3000 59 – 66 3000 2993 – 3000 Dimensions [mm] B = Width of front frame Dimensions [mm] ØD 116.5 Active chilled beams Type DID642...
-
Page 10: Transport And Storage
Use only lifting and transport gear designed for the required load. Always secure the load against tip- ping and falling. Upon delivery, carefully remove the packaging and check the unit for transport damage and complete- ness. Active chilled beams Type DID642... -
Page 11: Installation
Plasterboard ceiling ② Fig. 7: Ceiling installation, T-bar ① DID642 ② Ceiling tile Fig. 8: Ceiling installation, clamping profile DID642 ① Ceiling tile ② Fig. 9: Ceiling installation, concealed T-bar DID642 ① Ceiling tile ② Active chilled beams Type DID642... - Page 12 Use all hanging brackets supplied. – Stand clear of suspended loads, unless properly secured. – Check secure fixing after installation. Insert into the ceiling Fig. 11: Dimensions Fig. 5 Fastening the device with threaded rods Installation drill holes Active chilled beams Type DID642...
- Page 13 Fasten device with vernier Connecting the ductwork DID642 active chilled beams are fitted with a pri- mary air (outdoor air) spigot. Optionally, a second supply air spigot or a connection for exhaust air extraction can be integrated.
- Page 14 Installation Adjusting the nozzles The DID642 is fitted with adjustable twin noz- zles that allow for adapting the airflow velocity to changed operating conditions at a later stage, if required. Fig. 15: Example DID642 with 4-pipe system 2-pipe system: 2 water connections ...
- Page 15 Tighten threaded connections with a wrench. NOTICE! Damage to the heat exchanger due to frost! Only fill the heat exchanger if there is no danger of freezing. Active chilled beams Type DID642...
-
Page 16: Initial Commissioning
The water quality must be monitored and docu- water quality in order to ensure the long-term mented at regular intervals to prevent corrosion. operation of the system. Active chilled beams Type DID642... -
Page 17: Maintenance And Cleaning
The heat exchanger has thin fins, which are very sharp; when you touch them, there is a danger of your cutting your fingers. To avoid injuries, proceed carefully and wear protective gloves when you work on the heat exchanger. Active chilled beams Type DID642... - Page 18 Fig. 17: Cleaning the heat exchanger Carefully clean the heat exchanger with an industrial vacuum cleaner. Be careful so as not to bend any blades. We recommend using a soft brush attachment for cleaning. Active chilled beams Type DID642...
