Assembly Instructions

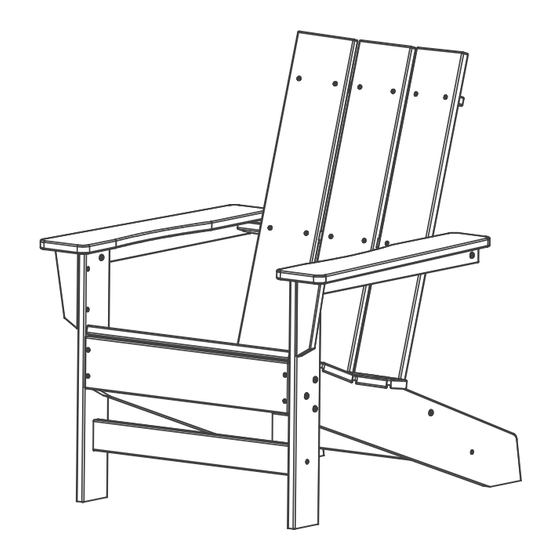

ARIA ADIRONDACK CHAIR
Thank you for your purchase of Tangentwood furniture. If you
have any questions or need assistance with assembly, please
contact our customer care team through our website or email
us at service@tangentwood.com.
Tangentwood Brands Include:
PAGE 1
REV:11.30.23
TW-AAC-7030
Advertisement
Table of Contents
Related Manuals for TANGENTWOOD DUROGreen ARIA
Summary of Contents for TANGENTWOOD DUROGreen ARIA
- Page 1 Assembly Instructions ARIA ADIRONDACK CHAIR Thank you for your purchase of Tangentwood furniture. If you have any questions or need assistance with assembly, please contact our customer care team through our website or email us at service@tangentwood.com. Tangentwood Brands Include: PAGE 1 REV:11.30.23...
- Page 2 Thank you for choosing Tangentwood! Our all-weather outdoor furniture is made from durable Tangentwood, the most luxurious HDPE lumber available. Our furniture comes with a commitment to excellence shown through our 20-year limited residential warranty. Rest easy knowing your all-weather chair will look this good for years to come.
- Page 3 Tangentwood furniture is made with recycled plastic and marine-grade stainless steel hardware. Simply clean with soap and water. Tangentwood furniture is tested to a 350-pound weight capacity. Proudly made in the USA. Ships ready to assemble with easy step-by-step instructions.
-
Page 4: Component List
COMPONENT LIST ITEM PICTURE DESCRIPTION QTY. Back Seat Assembly Left Front Leg Right Front Leg Left Arm Right Arm Back Brace Front Brace (Longer) PAGE 4... -
Page 5: Hardware List
HARDWARE LIST ITEM PICTURE DESCRIPTION QTY. Lag Screw 1/4" x 2-1/2" Small Machine Screw 1/4"-20 x 1-1/4" Phillips Screw #8 x 1-1/2" TOOL LIST ITEM PICTURE DESCRIPTION QTY. 5/32" T-Handle Allen Wrench #2 Phillips Screwdriver (Not Included) PAGE 5... -
Page 6: Assembly Preparation
Do not discard any packaging until the product has been fully assembled. In case of missing parts, please email our customer care team at info@tangentwood.com. WARNING: Small parts are a choking hazard. Adult supervision is required before, during and after assembly. - Page 7 LET’S GO! PAGE 7...
- Page 8 Step 1 Installing the Front Brace (H-3) Phillips Screw x 2 (T-2) Phillips Screwdriver Longer Front Leg Brace FRONT Install the longer Front Brace (H) into the pocket of the Right Front Leg (D). Fasten using the Phillips Screw (H-3) with a Phillips Screwdriver (T-2).
-
Page 9: Step 2 Installing The Back
Step 2 Installing the Back (H-1) Lag Screw x 2 (T-1) 5/32" T-Handle Allen Wrench FRONT Install the Back (A) by fitting it into the pockets of the back of the Seat Assembly (B). Fasten using a Lag Screw (H-1) on each side with the 5/32"... - Page 10 Step 3 Installing the Back Brace (H-3) Phillips Screw x 2 (T-2) Phillips Screwdriver FRONT Install the shorter Back Brace (G) into the pockets of the Seat Assembly (B). Fasten using a Phillips Screw (H-3) with a Phillips Screwdriver (T-2) on each side. Do not yet fully tighten. IMPORTANT: Use the shorter Back Brace (G), instead of the longer Front Brace (H).
- Page 11 Step 4 Installing the Front Legs (H-2) Small Machine Screw x 6 (T-1) 5/32" T-Handle Allen Wrench FRONT Install the front leg assembly you created in Step 1 on the front of the Seat Assembly (B). Insert three Small Machine Screws (H-2) into the holes on each side and tighten using the 5/32"...
- Page 12 Step 5 Installing the Arms (H-2) Small Machine Screw x 2 (T-1) 5/32" T-Handle Allen Wrench Rest the Left Arm (E) on the Left Front Leg (C) and the left side of the Back Brace (A). The arm should be on the outside of the leg. Fasten the arm down using a Small Machine Screw (H-2) on the leg side.
- Page 13 Step 6 Installing the Arms (H-1) Lag Screw x 2 (T-1) 5/32" T-Handle Allen Wrench Fasten the Left Arm (E) and the Right Arm (F) to the Back Brace (A) using a Lag Screw (H-1) on either side with the 5/32" T-Handle Allen Wrench (T-1).
- Page 14 Assembly is now complete and the product is ready for use. NOTE: Hardware may loosen over time. Periodically check that all connections remain tight and adjust as needed. TANGENTWOOD | 325 State Rte 31, Building B Montgomery, IL 60538 PAGE 14...
