EXPLORE HOME Watercolor U330A657 Instruction Sheet

U330A657
Thank you for purchasing this quality product. Be sure to check all packing material carefully
for small parts that may have come loose inside the carton during shipment.
Caution: (1) These parts are cumbersome and heavy. This product can best be assembled with the
assistance of one or more persons in order to prevent personal injury and to insure parts are not
damaged during the assembly process. If dirty, clean finished parts with mild dishwashing liquid and
water solution applied on a damp cloth. The cloth should not be excessively wet. Polish finish with a
soft cloth and an industry recognized furniture polish.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of
furniture for stain residue and rough surfaces and also check for staples or nails left after removing
the packaging material. The manufacturer will not be held responsible if preventative steps are not
taken prior to installation.
(3) Unpack and dispose of all packing material but be careful not to throw away any
assembly parts or hardware. Read the instruction sheet and parts list carefully. Remove all staples
and screws used for packaging carefully using pliers and (or) screwdrivers to prevent injury and
scratching or damaging flooring.
(4) During normal use everyday, screws, bolts, nuts and wooden plugs may loosen up.
They should be periodically inspected and re-tightened to prevent damage to the furniture and (or)
personal property or cause injury. Always check to be sure all hardware on this list and the above
mentioned components is attached to the furniture properly and kept tightened at all times.
PARTS LIST:
# Description
A
Table Top
C Back Leg
Assembly Procedure
Unpack, inspect, and read Assemble instruction carefully. Lay out the parts and hardware. Make sure
the quantity of each is correct.
Step 1: Turn the table top (A) upside down and put it on a soft and smooth surface to avoid damage
or being scratched. Then attach side legs (B) and back leg (C) to table top (A) with hex head bolt (1),
spring washer (3) and flat washer (4) using wrench (6). After that, attach Front Leg (D) to table top (A)
with Hex head bolt (2), spring washer (3) and Flat washer (4) using allen key (5).
Step 2: Turn the table over, flip up the flip top, and tighten front leg (D) on the inside of the drawer
with hex head bolt (2), spring washer (3), flat washer (4) using allen key (5).
Note: It is best for two or more persons are involved.
Assembly is now complete.
INSTRUCTION SHEET
Qty. #
B
1pc
1pc D
: (Please follow the sketches below)

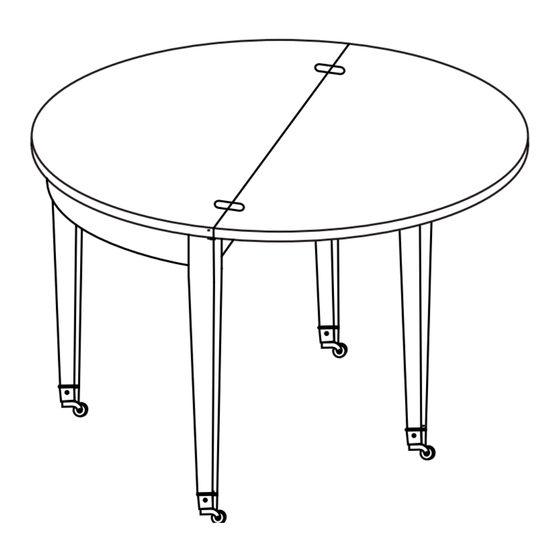

Watercolor Dining Table
Description
Side leg
Front Leg
Qty.
2pcs
1pc
