HEINE SLR | SLM
Camera Adapter flow
FIRST STEPS
Meaningful and detailed digital images of the highest quality contribute
to binding and comprehensible documentation. The combination of the
SLR | SLM Camera Adapter flow, a HEINE dermatoscope and a DSLR
or DSLM camera creates a flexible system for quickly switching between
dermatoscopic overview and detailed images during the diagnosis. For
an accurate overview and precise detailed view.
AT A GLANCE
The HEINE SLR | SLM Camera Adapter flow can be used with a DSLR
or DSLM camera with an existing fixed focal length lens that has an M52
or M49 connection thread. It is suitable for use with the HEINE DELTA 30
PRO and the HEINE DELTA 30. Any reference to the DELTA 30 PRO in
this document is a reference to both instruments.
Depending on the camera | lens combination or sensor format, there may
be slight cropping or vignetting (darkening) at the edge of the image due
to the design.
HEINE recommends lenses with a fixed focal length from the following
manufacturers:
Advertisement
Related Manuals for HEINE K-000.34.148
Summary of Contents for HEINE K-000.34.148
- Page 1 AT A GLANCE The HEINE SLR | SLM Camera Adapter flow can be used with a DSLR or DSLM camera with an existing fixed focal length lens that has an M52 or M49 connection thread. It is suitable for use with the HEINE DELTA 30 PRO and the HEINE DELTA 30.
- Page 2 M52 x 0,75 M52 x 0,75 M49 x 0,75 HEINE has tested these lenses and can confirm that they enable smooth interaction between the camera and the SLR | SLM Camera Adapter flow. If you would like to use other lenses, please ensure that the lens has a focal length of approximately 3 –...
-
Page 3: Let's Get Started

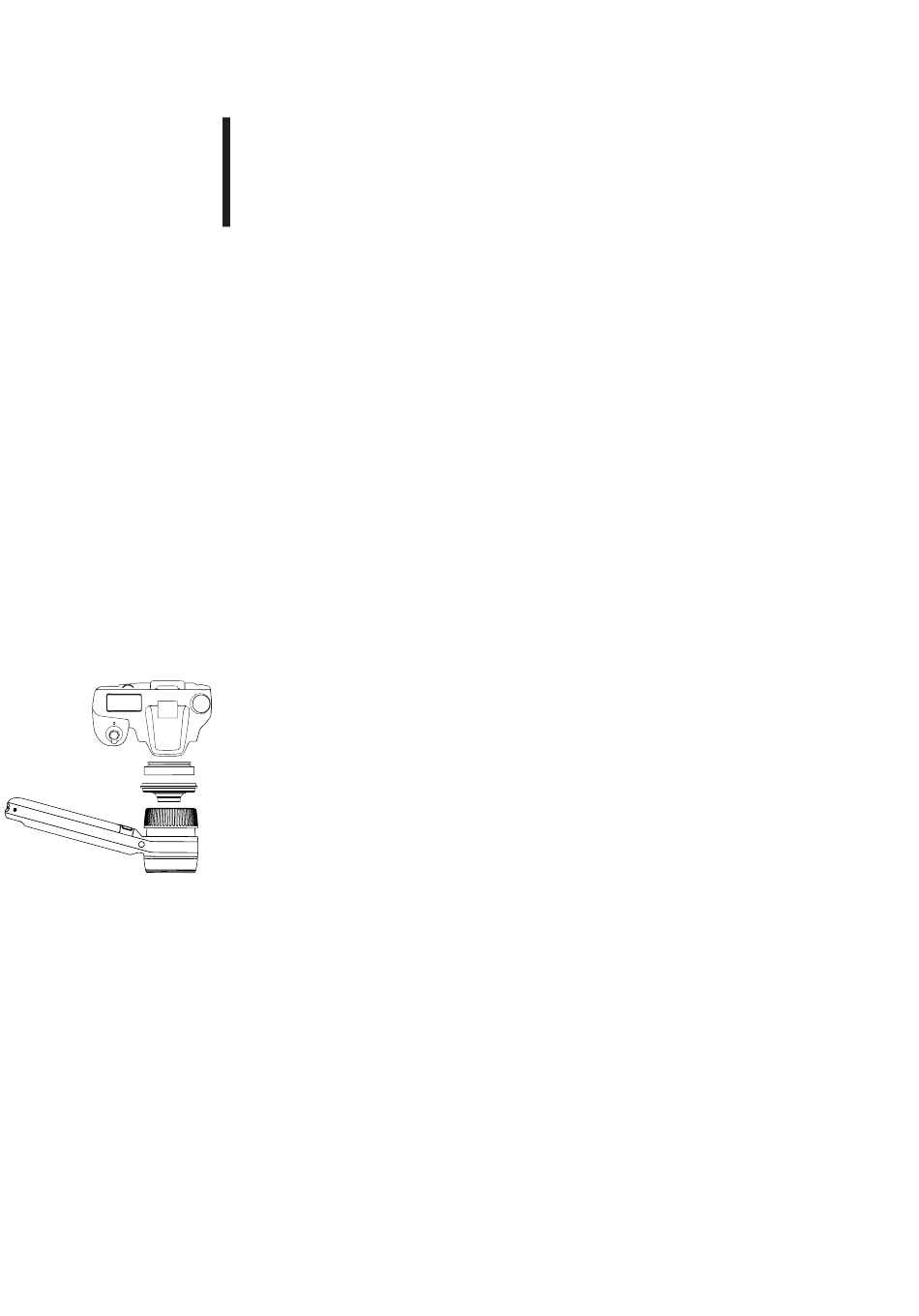

Assembly For complete assembly, you need a digital camera, a lens with fixed focal length, a HEINE DELTA 30 PRO or HEINE DELTA 30 and the HEINE SLR | SLM Camera Adapter flow. You may need an additional adapter if you would like to use an SLR lens on a DSLM camera. - Page 4 Please ensure that the dermatoscope is set to the highest light intensity level when taking pictures. HEINE recommends the ‘P’ setting for Canon, Nikon and Sony cameras. The ISO sensitivity and shutter speed are set manually on the camera in this mode.
- Page 5 You will achieve the best result if you use your camera’s manual or ‘custom’ white balance. The suitable presets for the HEINE DELTA 30 have a value between 5,000 K and 6,000 K for the colour temperature. (These are the ‘Direct sunlight’...
-
Page 6: Image Quality
Recommended image format HEINE recommends the APS-C or DX format (also known as ‘com- pact format’). This allows you to create an uncropped image in a sufficient size for your images. Our lens recommendations only refer to this format. -
Page 7: Warnings And Safety Information
Notes are important, but not related to hazardous situations. Description The HEINE SLR | SLM Camera Adapter flow with HEINE DELTA 30 and HEINE DELTA 30 PRO has been exclusively developed and opti- mized for a rapid and systematic documentation of pigmented lesions and does not replace a medical diagnosis. - Page 8 General Notes The warranty for the entire product is invalidated if non-genuine HEINE products or non-original parts are used and if repairs or modi- fications are made to the device by persons not authorized by HEINE. For more information, please visit www.heine.com.
