HEINE SLR | SLM
Camera Adapter
FIRST STEPS
Meaningful and detailed digital images of the highest quality contribute
to binding and comprehensible documentation. The combination of
the HEINE DELTA 30 or HEINE DELTA 30 PRO, the HEINE SLR | SLM
Camera Adapter and a DSLR or DSLM camera creates a comprehensive
system for documenting consistently high-quality images.
AT A GLANCE
The HEINE SLR | SLM Camera Adapter is available either with a bayonet
connection for digital single-lens reflex (DSLR) cameras and a T2 uni-
versal connection with the digital single-lens mirrorless (DSLM) cameras.
When purchasing the HEINE SLR | SLM Camera Adapter with a T2
universal connection, a T2 adapter with bayonet camera connection is
required to connect the digital camera to the HEINE SLR | SLM Camera
Adapter. Bayonet adapters are generally longer for mirrorless system
cameras and shorter for DSLR cameras.
Finding the right adapter:
Canon
Nikon
SONY
DSLM
DSLM
DSLR
DSLR
DSLM
DSLM
RF
M
Canon EFS
Canon RF
Canon EOS M
Nikon F
Nikon Z
SONY E
to T2
to T2
to T2
to T2
to T2
to T2
Advertisement
Table of Contents
Related Manuals for HEINE SLR
Summary of Contents for HEINE SLR
- Page 1 Meaningful and detailed digital images of the highest quality contribute to binding and comprehensible documentation. The combination of the HEINE DELTA 30 or HEINE DELTA 30 PRO, the HEINE SLR | SLM Camera Adapter and a DSLR or DSLM camera creates a comprehensive system for documenting consistently high-quality images.
-
Page 2: Let's Get Started

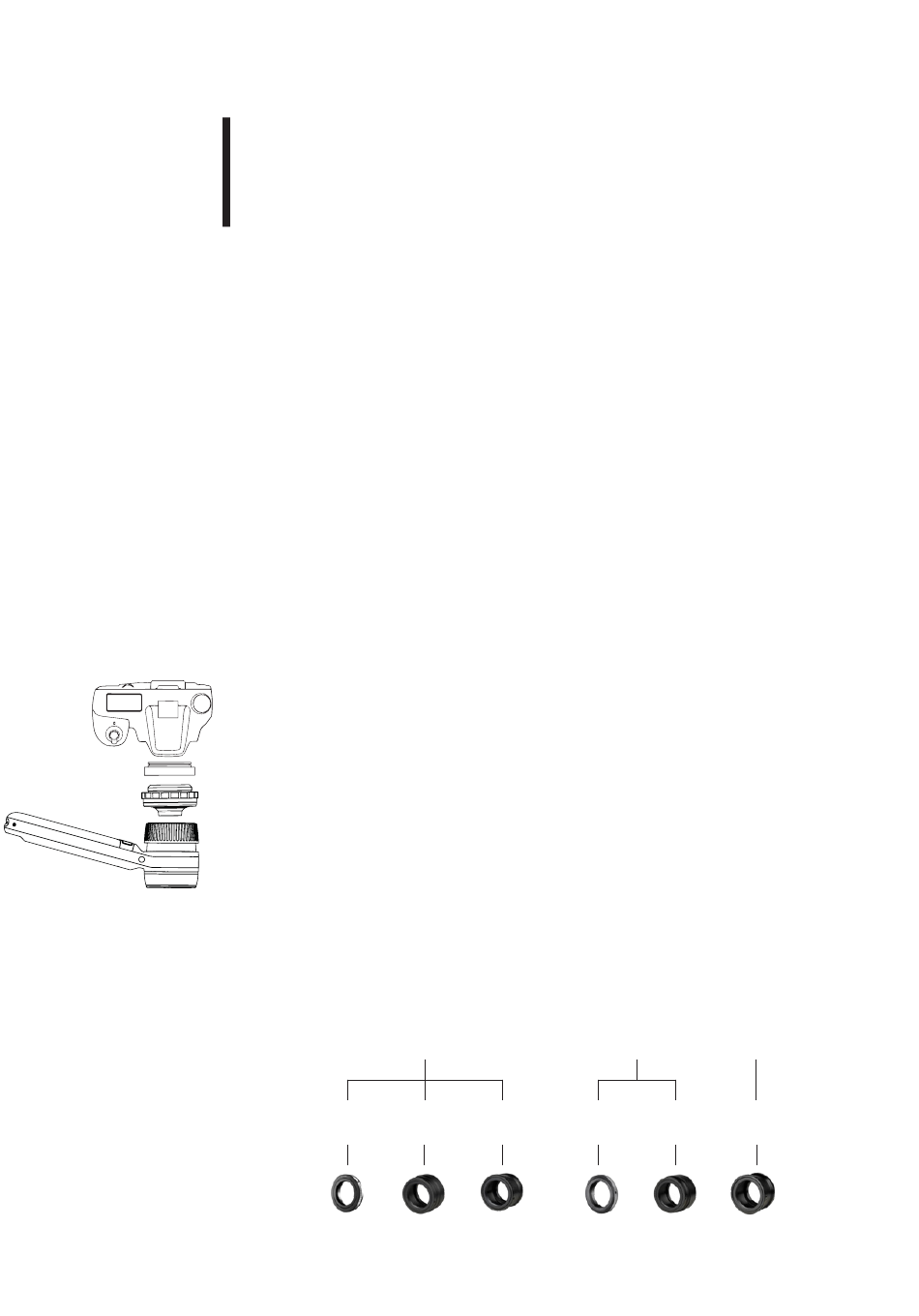

Assembly For the complete assembly, you need a digital camera, a HEINE DELTA 30 or HEINE DELTA 30 PRO, the HEINE SLR | SLM Camera Adapter with bayonet adapter or the HEINE SLR | SLM Camera Adapter with T2 uni- versal connection and a T2 bayonet adapter. - Page 3 T urn the eyepiece on the dermatoscope to the centre position. The edge of the eyepiece ring of the HEINE DELTA 30 PRO should be slightly above the centre line on the scale. B ring your camera up to the eyepiece of the dermatoscope using the camera adapter.
