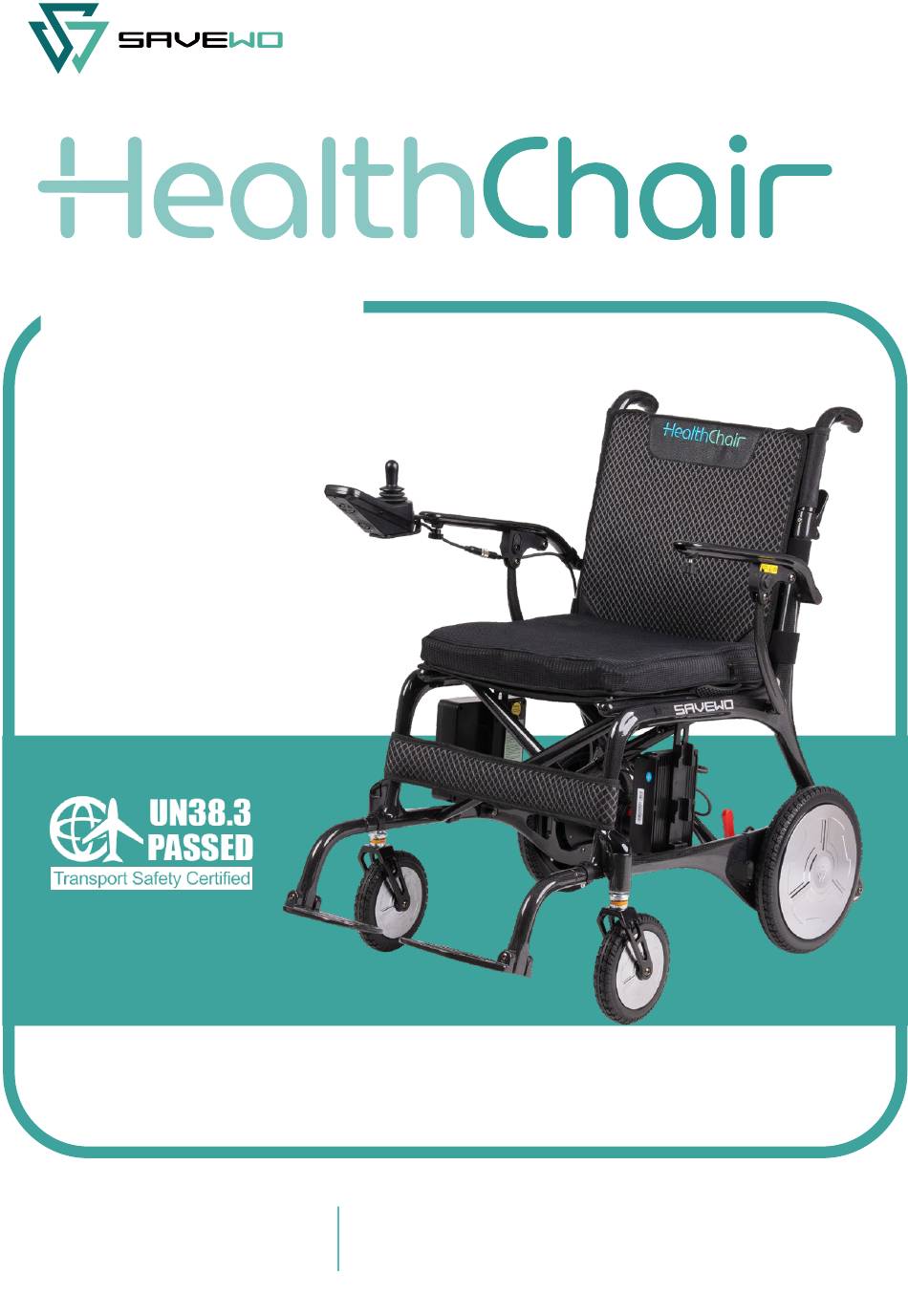

  • Page 1 www.healthchair.com X -C a rbon Carbon Fiber Electric Wheelchair All batteries are UN38.3 certified, allowing travel batteries to be carried on airplanes for unlimited global travel. Manual Version:20240419 Mo de l N o. SA VE WO - HC-XC1 Please read this manual carefully before use User Manual Keep it safe for future reference...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents P . 1 Preface P . 2 Product Introduction P . 2 1.Product Performance P . 2 2.Product Composition P . 2 3.Product Application Scope P . 2 Package Contents P . 3 Specifications P .
  • Page 3: Preface P

    PREFACE Thank you for choosing HealthChair! Please read this manual carefully before operation, improper use may cause injury to yourself and others or traffic accidents.◎This manual contains instructions for operating, assembling, and properly handling daily potential accidents of the electric wheelchair. When you see the following symbols in this manual, please read the details carefully.
  • Page 4: Package Contents P

    Model No. SAV EWO- HC- XC1 使用說明書 使用前請 仔細閱讀本說明 User Manual 請妥善保 存,以備參考 Main unit Manual 規 格 PRODUCT SPECIFICATIONS: Model: SAVEWO-HC-XC1 Load Capacity: ≤100 kg Max Speed: ≤6 km/h Motor Power: 220W*2 Max Range: ≤20 km Climbing Ability: ≤20%(12°)
  • Page 5 產 品 結 構 Handlebar Wheelchair Controller Breathable backrest Armrests seat Batteries Mode switch handle 6.5" Front wheels ~11" Rear wheels Adjustable footrests Shopping Motors and brakes Magnetic clutch Anti-tip wheels...
  • Page 6: Safety Use P

    SAFETY USE Main Electric Wheelchair Safety Features: Shock protection type - Internal power supply, Class II equipment. Degree of shock protection - Type B internal power supply. Liquid ingress protection - IPX4. Safety in flammable anesthetic gas - Non-AP/APG type. Operating mode - Continuous operation.
  • Page 7: Uphill/Downhill Precautions

    UPHILL/DOWNHILL PRECAUTIONS Avoid slopes, only use ramps ≤12° and Avoid crossing or traversing steep proceed with extra caution. slopes. Go up/down ramps moving forward only. Do not drive on stairs or jump large Use lowest speed when going downhill. steps. For small steps, cross at 90°. Avoid crossing wide trenches.
  • Page 8: Electric Wheelchair Assembly P . 7

    Place electric wheelchair on flat surface, ELECTRIC WHEELCHAIR ASSEMBLY read following instructions carefully, install in order. Install footrests WARNING Ensure no obstructions around wheelchair when unfolding. Ensure occupant when folding wheelchair. Install backrest Installing Controller Insert controller rod into fixing slot and tighten adjustment screw in a When connecting plugs, ensure arrows are aligned before inserting.
  • Page 9 Hold plastic button on side of armrest (as shown) and lift armrest upwards to open Open left and right armrests for getting on/off the wheelchair (ensure armrests locked before driving). Manual mode Power mode Switching Between Manual/Power Mode Slide clutch handle to switch between manual and power mode. 1) Manual mode - Slide motor handle towards icon to disengage motors.
  • Page 10: Controller Panel Functions P

    Controller Panel Functions 1 Speed display 5 Gear up button 2 Battery indicator 6 Gear down button 3 Gear position 7 Horn button 4 Power button 8 Joystick Power On/Off and Sleep Mode Press power button to turn wheelchair on. Controller lights up and power on sound.
  • Page 11: Charger And Battery

    If error persists after joystick is centered, there may be an issue with the joystick module or controller program. Do not use the wheelchair and consult the maintenance vendor immediately. CAUTION If joystick is inactive for 10 minutes, the controller will automatically power off into sleep mode.
  • Page 12 CAUTION Observe the following rules to avoid danger when charging: Use only the dedicated wheelchair charger. Non-dedicated chargers are dangerous. Do not privately modify or adapt the charger wiring, the company is not responsible for any resulting accidents. Ensure charging area is well-ventilated, do not charge in direct sunlight or damp environments.
  • Page 13 ROUTINE WHEELCHAIR MAINTENANCE AND SELF-CHECKS Cleaning Wheelchair / Tires / Battery Care Cleaning Wheelchair Disinfection Regularly dust wheelchair surfaces. Clean This product is not sterile. If contaminated with a wax spray polish or soft dry cloth. by operator or patient blood, secretions, excrement etc during production or use, Tires disinfect by wiping with 1000-2000mg/L...
  • Page 14: Troubleshooting

    TROUBLESHOOTING Before sending for repair, check the table below for issues you can fix yourself: Problem Cause Solution Lights don't turn on ◆Charge battery ◆Battery depleted when powering on ◆Reconnect wires ◆Wires disconnected ◆Connect charger, Lights don't turn on when lights will come on after ◆Battery depleted activating controller...
  • Page 15: Emc Statement

    EMC STATEMENT The electrical medical equipment requires special attention to electromagnetic compatibility and is put into use according to the electromagnetic compatibility information provided in the user's manual; The equipment conforms to the standards of IEC 61000-4-6, CISPR 11, Group 1, Class B in terms of immunity and emission, and conforms to IEC 61000-4-2 in terms of ESD.
  • Page 16: Warranty Policy

    (See Terms and Conditions for details.) For related details and terms, please visit Savewo website: https://www.savewo.com/warranty In case of any dispute, Savewo Distribution Limited reserves the right of final decision. TERMS AND CONDITIONS Savewo Distribution Limited (hereinafter "the Company") provides a 5-year limited warranty (from invoice date).
  • Page 17 WARRANTY COVERAGE Free warranty repairs/service as per invoice for material/manufacturing defects during warranty period. Exemptions: 1. No impact on function 2. Wear or changes over time (paint, plating, natural fading of resin etc.) Not covered if caused by: 1. Lack of specified periodic inspection/cleaning. 2.
  • Page 18 +852 9548 2544 Savewo savewohk To e ns ur e y ou ful l y un d e r sta n d a n d use t his product cor rect ly, pleas e re ad the ma nua l c a r e ful ly a n d kee p it s afe f or f ut ur e r ef er ence.
