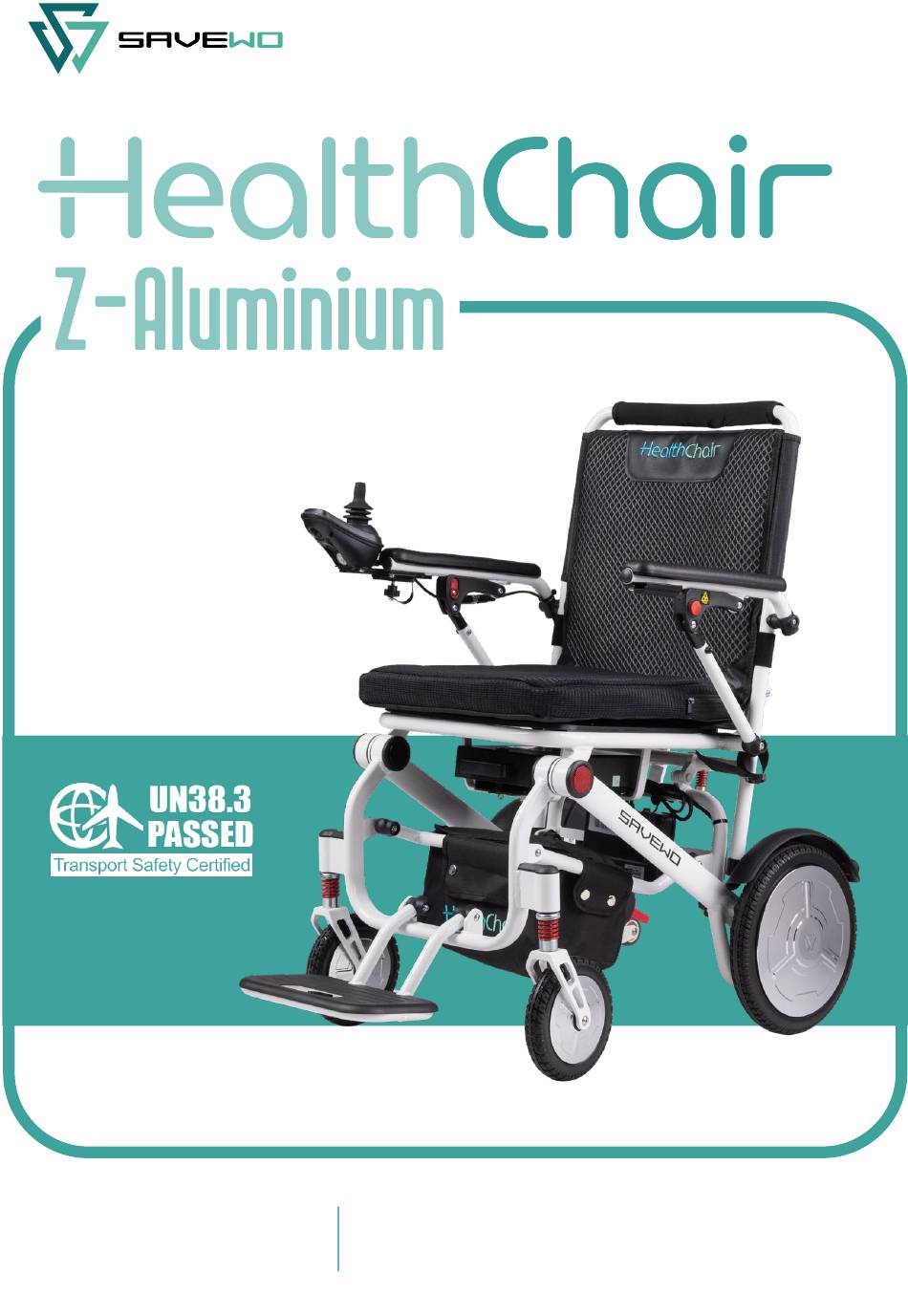

www.healthchair.com
Aluminum alloy Electric Wheelchair
All batteries are UN38.3
certified, allowing travel
batteries to be carried on
airplanes for unlimited
global travel.
Manual Version:20240419
Model No. SAVE W O- HC-ZA1
Please read this manual carefully before use
User Manual
Keep it safe for future reference
Advertisement
Table of Contents
Related Manuals for Savewo SAVEWO-HC-ZA1
Summary of Contents for Savewo SAVEWO-HC-ZA1
- Page 1 www.healthchair.com Aluminum alloy Electric Wheelchair All batteries are UN38.3 certified, allowing travel batteries to be carried on airplanes for unlimited global travel. Manual Version:20240419 Model No. SAVE W O- HC-ZA1 Please read this manual carefully before use User Manual Keep it safe for future reference...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents P . 1 Preface P . 2 Product Introduction P . 2 1.Product Performance P . 2 2.Product Composition P . 2 3.Product Application Scope P . 2 Package Contents P . 3 Specifications P . -
Page 3: Preface P
PREFACE Thank you for choosing HealthChair! Please read this manual carefully before operation, improper use may cause injury to yourself and others or traffic accidents.◎This manual contains instructions for operating, assembling, and properly handling daily potential accidents of the electric wheelchair. When you see the following symbols in this manual, please read the details carefully. -
Page 4: Package Contents P
M od el N o. SA VE W O- H C - Z A1 使用說明書 使 用前 請仔 細閱 讀本說明 User Manual 請妥善 保存，以 備 參考 Main unit Manual PRODUCT SPECIFICATIONS: Model: SAVEWO-HC-ZA1 Load Capacity: ≤100 kg Max Speed: ≤6 km/h Motor Power: 180W*2 ≤15 km / ≤30 km Max Range: Climbing Ability: ≤15%(7°) -
Page 5: Product Structure P
PRODUCT STRUCTURE Handlebar Wheelchair Controller Breathable backrest Air Fiber Armrests Cushion Batteries Storage bag 6.5" Front wheels ~11" 11" Rear wheels Adjustable footrests Shopping Mode switch Motors handle and brakes Magnetic clutch Anti-tip wheels... -
Page 6: Safety Use P
SAFETY USE Main Electric Wheelchair Safety Features: Shock protection type - Internal power supply, Class II equipment. Degree of shock protection - Type B internal power supply. Liquid ingress protection - IPX4. Safety in flammable anesthetic gas - Non-AP/APG type. Operating mode - Continuous operation. -
Page 7: Uphill/Downhill Precautions P
UPHILL/DOWNHILL PRECAUTIONS Avoid slopes, only use ramps ≤7° and pro- Avoid crossing or traversing steep slopes. ceed with extra caution. Do not drive on stairs or jump large steps. For Go up/down ramps moving forward only. small steps, cross at 90°. Use lowest speed when going downhill. -
Page 8: Electric Wheelchair Assembly P . 7
Place wheelchair on flat ground. Grip handlebar with one ELECTRIC WHEELCHAIR ASSEMBLY hand and lift seat pad with the other to unfold unit. Ensure clasp Ensure no obstructions around wheelchair when unfolding. WARNING is locked Ensure no occupant when folding wheelchair. Locked (as shown) Installing Controller Insert controller rod into fixing slot and tighten adjustment screw... -
Page 9: Folding Method P
Hold plastic button on side of armrest (as shown) and lift armrest up- Open left and right armrests wards to open for getting on/off the wheelchair (ensure armrests locked before driving). Adjusting Anti-Tip Wheels Pull latch anti-tip wheel to adjust length. -
Page 10: Controller Panel Functions P
Controller Panel Functions 1 Power button 5 Horn button 2 Battery indicator 6 Speed display 3 Gear up button 7 Joystick Speed 4 Gear down button Power On/Off and Sleep Mode Press power button to turn wheelchair on. Controller lights up and power on sound. To power off press power button again. -
Page 11: Charger And Battery
If error persists after joystick is centered, there may be an issue with the joy- stick module or controller program. Do not use the wheelchair and consult the CAUTION maintenance vendor immediately. If joystick is inactive for 10 minutes, the controller will automatically power off Sleep Mode into sleep mode. - Page 12 CAUTION Observe the following rules to avoid danger when charging: Use only the dedicated wheelchair charger. Non-dedicated chargers are dangerous. Do not privately modify or adapt the charger wiring, the company is not responsible for any resulting accidents. Ensure charging area is well-ventilated, do not charge in direct sunlight or damp environments.
- Page 13 ROUTINE WHEELCHAIR MAINTENANCE AND SELF-CHECKS Cleaning Wheelchair / Tires / Battery Care Cleaning Wheelchair Disinfection Regularly dust wheelchair surfaces. Clean This product is not sterile. If contaminated with a wax spray polish or soft dry cloth. by operator or patient blood, secretions, excrement etc during production or use, Tires disinfect by wiping with 1000-2000mg/L...
-
Page 14: Troubleshooting
TROUBLESHOOTING Before sending for repair, check the table below for issues you can fix yourself: Problem Cause Solution Lights don't turn on ◆Battery depleted ◆Charge battery when powering on ◆Wires disconnected ◆Reconnect wires ◆Connect charger, Lights don't turn on when lights will come on after ◆Battery depleted activating controller... -
Page 15: Emc Statement
8.EMC STATEMENT The electrical medical equipment requires special attention to electromagnetic compatibility and is put into use according to the electromagnetic compatibility information provided in the user's manual; The equipment conforms to the stan- dards of IEC 61000-4-6, CISPR 11, Group 1, Class B in terms of immunity and emission, and conforms to IEC 61000-4-2 in terms of ESD. -
Page 16: Warranty Policy
final decision. TERMS AND CONDITIONS Savewo Distribution Limited (hereinafter "the Company") provides a 5-year limited warranty (from invoice date). Repairs past this period will be charged. 1. The Company is not responsible for any failure, damage, downtime, or direct/indirect loss/damage to any person/property due to improper use. - Page 17 WARRANTY COVERAGE Free warranty repairs/service as per invoice for material/manufacturing defects during warranty period. Exemptions: 1. No impact on function 2. Wear or changes over time (paint, plating, natural fading of resin etc.) Not covered if caused by: 1. Lack of specified periodic inspection/cleaning. 2.
- Page 18 +852 9548 2544 Savewo savewohk To e ns ur e y ou ful l y un d e r sta n d a n d use t his product cor rect ly, pleas e re ad the ma nua l c a r e ful ly a n d kee p it s afe f or f ut ur e r ef er ence.
