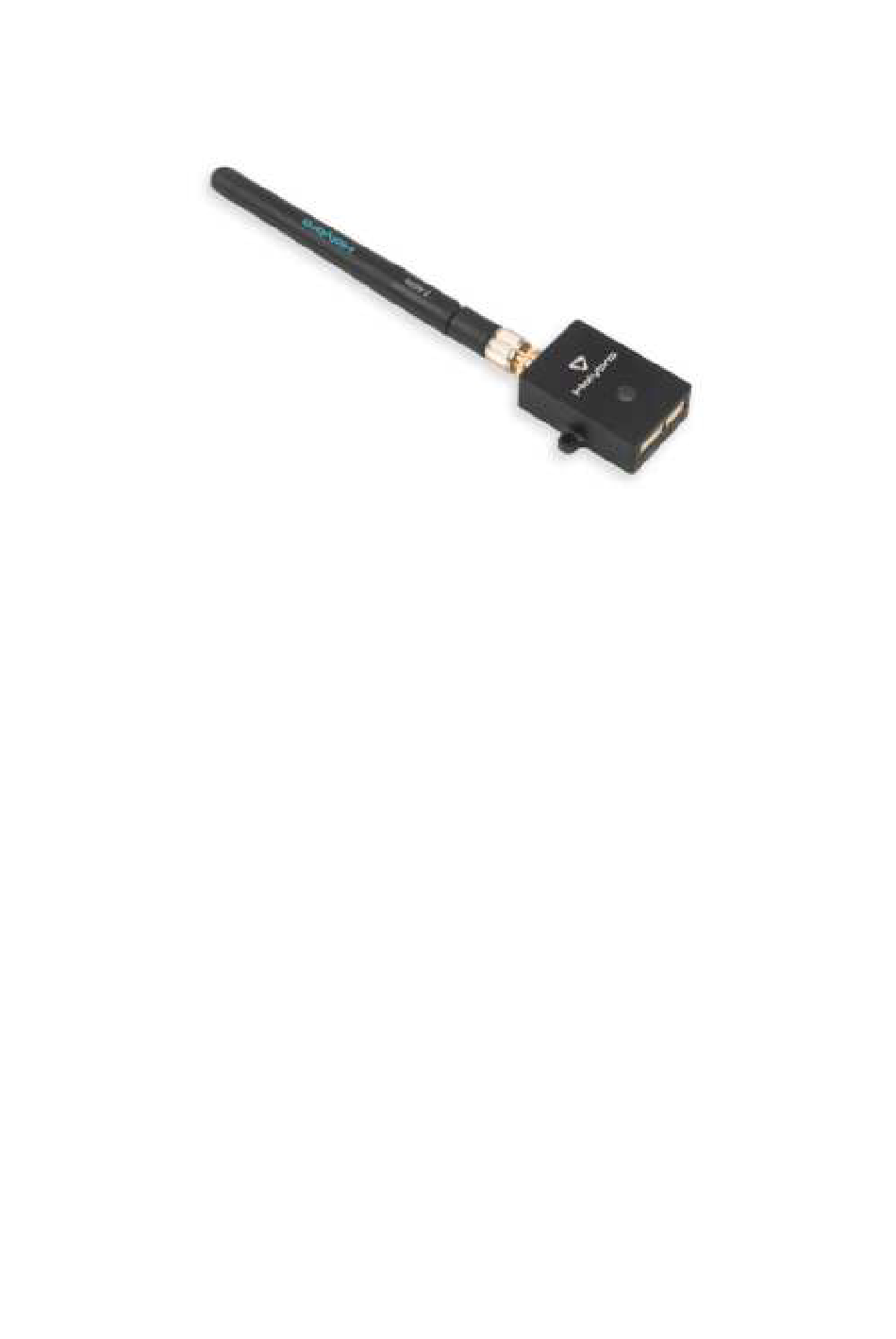

RemoteID user's manual v1.1
Specifications
Radio module:
Espressif ESP-C3 module
output power Bluetooth and WiFi 2.4GHz (ERP): + 20 dBm (100 mW)
Antenna:
2．33 dBi omni-directional antenna with SMA connector (included)
Firmware:
ArduRemoteID (https://github.com/ArduPilot/ArduRemoteID)
Supports upgrading firmware via the web interface ("OTA")
Long range: > 500m detection range (Estimated value, ground test of 180 meters)
Connectivity:
1x JST GH 4-pin CAN (DroneCAN) port
1x JST GH 6-pin TELEM (UART) port
Power:
+5V supplied from TELEM or CAN port
LED lights:
RGB status LED
Size: 38 x 26.5 x 11.5 mm (not include antenna )
Operating temperature: -40°C to +85°C
Weight: 27.5g
1, ESP32-C3 through serial port firing programming (when applicable to empty film)
Advertisement
Related Manuals for Holybro RemoteID C3
Summary of Contents for Holybro RemoteID C3
- Page 1 RemoteID user's manual v1.1 Specifications Radio module: Espressif ESP-C3 module output power Bluetooth and WiFi 2.4GHz (ERP): + 20 dBm (100 mW) Antenna: 2．33 dBi omni-directional antenna with SMA connector (included) Firmware: ArduRemoteID (https://github.com/ArduPilot/ArduRemoteID) Supports upgrading firmware via the web interface (“OTA”) Long range: >...
- Page 2 1) Use the USB-UART board to connect to the REMOTEID UART port with a 6PIN GH wire 2) Open the flash_download_tool_3.9.3.exe on the computer side 3) Hold down the download button to power on 4) After selecting firmware and string slogans, click START to start firing 1.OTA firmware upgrade method（ESP32-C3 can use this method）...
- Page 3 Default the REMOTEID will act as a WiFi Access Point. Connect to the RID_xxxxxxxxxxx WiFi network. The default password is ArduRemoteID After connecting to this WiFi network, point your browser to http://192.168.4.1 At the bottom of the page you can upload and flash the new firmware. Remarks: （1）Important: download the ArduRemoteID-ESP32C3_DEV.bin...
- Page 4 2.Using the REMOTEID The REMOTEID is controlled by the autopilot system. For normal operation, make sure the REMOTEID is powered on (status LED is red) and make sure the module can communicate with the autopilot system. Ardupilot Ardupilot has support for Remote ID in version 4.x and newer. See this link for more information: https://ardupilot.org/dev/docs/opendroneid.html#opendroneid Support for PX4 is pending.
- Page 5 2.4 Connect the flight control through the RemoteID CAN port In this section, the RemoteID is connected to the flight controller using the DroneCAN/CAN interface. Open MissionPlanner and make sure you run the latest stable version (1.3.77 or higher). Setup Set the following parameters in MissionPlanner (Config --> Full Parameter List) : DID_ENABLE 1 DID_OPTIONS 1 DID_MAVPORT -1...
- Page 6 2.5 Mobile phone search for REMOTEID hotspot SSID The default SSID is RID_xxxxxxxx where xxxxxxxx is the factory WiFi MAC address of the board. The default password is ArduRemoteID. 2.6 MissionPlanner setting Connect a GPS to the MisisonPlanner at the ground end to provide the Operation Location...
- Page 7 Go to MissionPlanner homepage select Drone ID to set (1)UAS ID* (2)UAD ID Type and (3)UA Type Go to Operation to set (1)Operator ID , (2)Oper ID Type , (3)Self ID DESC and (4)Self ID Type...
-
Page 8: Fcc Statement
2.8 After the above steps are set, wait for the status LED on the REMOTEID to turn green, then the REMOTEID starts sending information about the aircraft and the operator. You can see both positions on the phone APP. FCC STATEMENT : This device complies with Part 15 of the FCC Rules. - Page 9 Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
