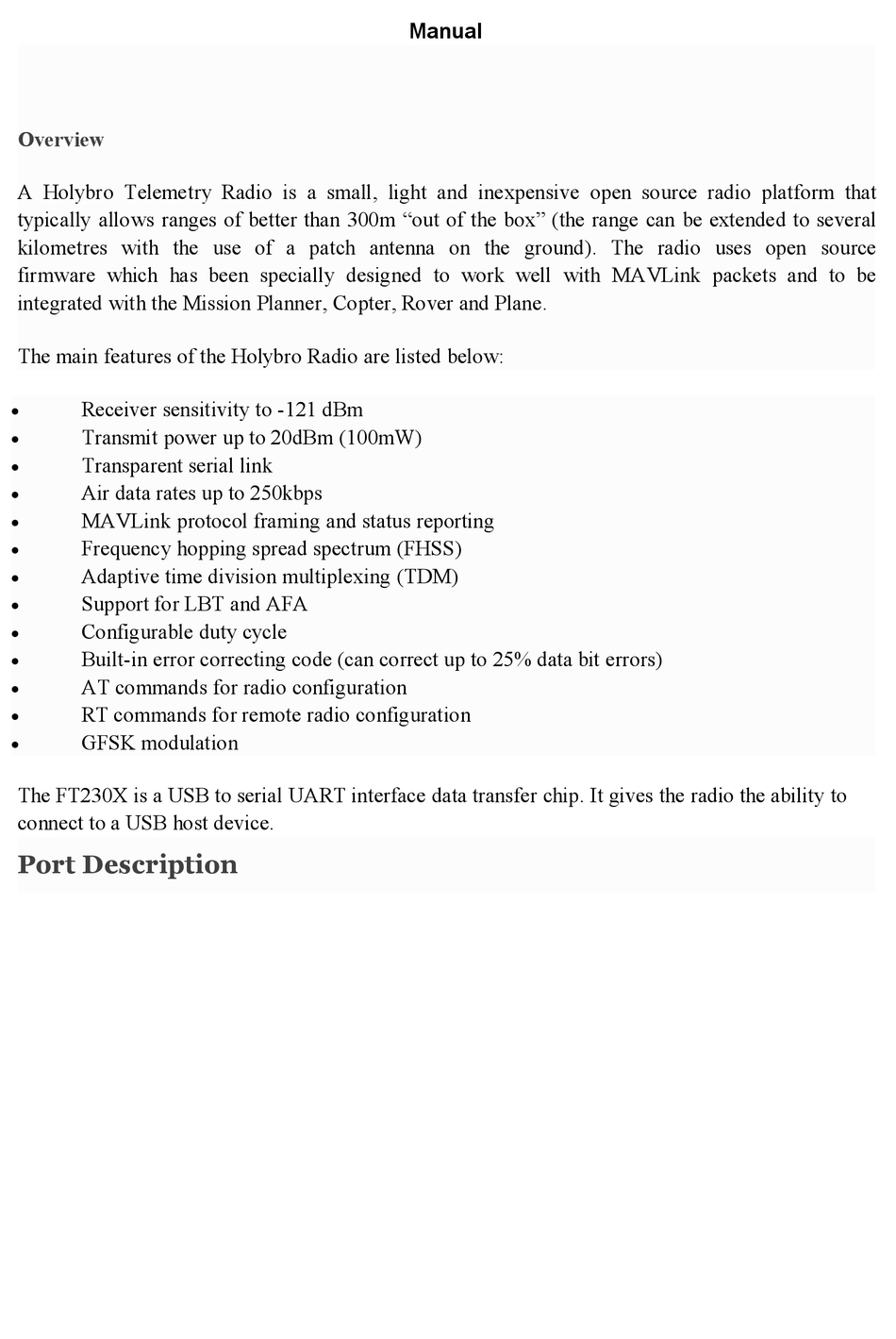

Overview
A Holybro Telemetry Radio is a small, light and inexpensive open source radio platform that
typically allows ranges of better than 300m "out of the box" (the range can be extended to several
kilometres with the use of a patch antenna on the ground). The radio uses open source
firmware which has been specially designed to work well with MAVLink packets and to be
integrated with the Mission Planner, Copter, Rover and Plane.
The main features of the Holybro Radio are listed below:
Receiver sensitivity to -121 dBm
Transmit power up to 20dBm (100mW)
Transparent serial link
Air data rates up to 250kbps
MAVLink protocol framing and status reporting
Frequency hopping spread spectrum (FHSS)
Adaptive time division multiplexing (TDM)
Support for LBT and AFA
Configurable duty cycle
Built-in error correcting code (can correct up to 25% data bit errors)
AT commands for radio configuration
RT commands for remote radio configuration
GFSK modulation
The FT230X is a USB to serial UART interface data transfer chip. It gives the radio the ability to
connect to a USB host device.
Port Description
Manual
Advertisement
Table of Contents
Related Manuals for Holybro HT03-V3
Summary of Contents for Holybro HT03-V3
- Page 1 Manual Overview A Holybro Telemetry Radio is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground). The radio uses open source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Copter, Rover and Plane.
- Page 2 Status LEDs The radios have 2 status LEDs, one red and one green. The meaning of the different LED states is: Green LED blinking - searching for another radio Green LED solid - link is established with another radio ...
- Page 3 as simple as connecting the micro USB cable (which should have been included with the radio) to your PC. The necessary drivers should be installed automatically and the radio will appear as a new “USB Serial Port” in the Windows Device Manager under Ports (COM & LPT). The Mission Planner’s COM Port selection drop-down should also contain the same new COM port.
-
Page 4: Fcc Statement
FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
