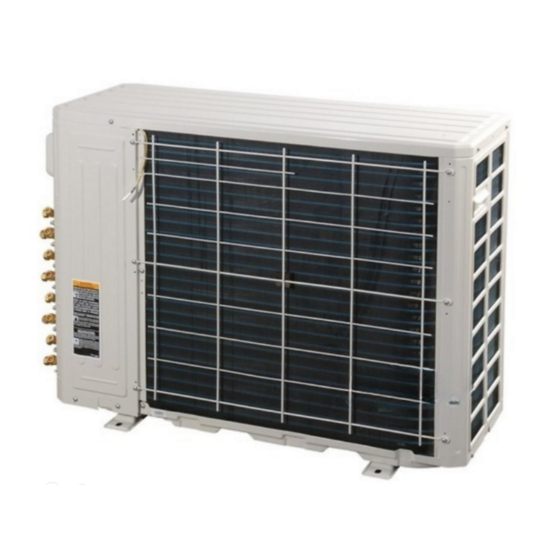

- Page 1 Split Air Conditioner Owner's Manual Residential Air Conditioners MODELS: BMKH18M-ND3O BMKH24M-ND3O BMKH30M-ND3O Thank you for choosing Residential Air Conditioners,please read this owner’s manual carefully before operation and retain it for future reference. 66129916613...
-
Page 2: Table Of Contents
In line with the company’s policy of continual product improvement, the aesthetic and dimensional characteristics, technical data and accessories of this appliance may be changed without notice. CONTENTS GENERA L INFORMATION Conformity And Range The Instructions Before Use Name of Parts Technical Data Outdoor Unit Working Temperature Range Electrical Connections... -
Page 3: The Instructions Before Use
GENERA L INFORMATION THE INSTRUCTIONS BEFORE USE WARNING Never cut off or damage power When having a burning smell The power supply must adopt cables and control wires. If the the special circuit that with air switch or smoke, please turn off the power power cable and signal control wire protection and assure it has enough supply and contact with the service... -
Page 4: Name Of Parts
GENERAL INFORMATION NAME OF PARTS BMKH18M-ND3O Warning Be sure to cut off the power supply before cleaning the air conditioner; otherwise electric shock might happen. Wetting of air conditioner may cause the risk of electric shock. Make sure not to wash your air conditioner in any case. -
Page 5: Technical Data
GENERA L INFORMATION TECHNICA L DATA MODE BMKH18M-ND3O Electrical data Electricity supply 208/230V/1~60Hz Fuse or air switch Minimum power cable section Refrigerant gas(R410A) 1350 Size and clearance GENERA L INFORMATION TECHNICAL DATA MODE BMKH30M-ND3O BMKH24M-ND3O Electrical data Electricity supply 208/230V/1~60Hz... -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS ELECTRICAL CONNECTIONS INS TALLER INS TALLER BMKH18M-ND3O 1. R emove the handle at the right side plate of the BMKH18M-ND3O outdoor unit (six screw). Remove the cable clamp, connect the connection cable and power cable with the terminal at the row of connection and fix the connection. - Page 7 ELECTRICAL CONNECTIONS INS TALLER BMKH24M-ND3O 1. Remove the handle at the right side plate of the outdoor unit (ten screw). Remove the cable clamp, connect the connection cable and power cable with the terminal at the row of connection and fix the connection. The fitting line distributing must be consistent with the indoor unit terminal of line bank.
- Page 8 ELECTRICAL CONNECTIONS INS TALLER BMKH30M-ND3O 1. Remove the handle at the right side plate of the connection cable outdoor unit (ten screw). Remove the cable clamp, connect the connection cable connection cable and power cable with the terminal at the row of connection and fix the connection.
-
Page 9: Installing The Outdoor Unit
INSTALLING THE OUTDOOR UNIT INSTALLER Location Use bolts to secure the unit to a flat, solid floor. Install the drain fitting and the drain hose(for When mounting the unit on a wall or the roof, make model with heat pump only) sure the support is firmly secured so that it cannot Condensation is produced and flows from the outdoor unit move in the event of intense vibrations or a strong... -
Page 10: Maintenance
Contact service center before installation to avoid the malfunction due to unprofessional installation. When picking up and moving the units, you must be guided by trained and qualified person. Ensure that the recommended space is left around the appliance . BMKH18M-ND3O 50cm or more... -
Page 11: Check After Installation
CHECK AFTER INSTALLATION INSTALLER Check Items Problems Owing to Improper Installation Is the installation reliable? The unit may drop, vibrate or make noises Has the gas leakage been checked? May cause unsatisfactory cooling (heating) effect Is the thermal insulation of the unit May cause condensation and water dropping sufficient? Is the drainage smooth?
