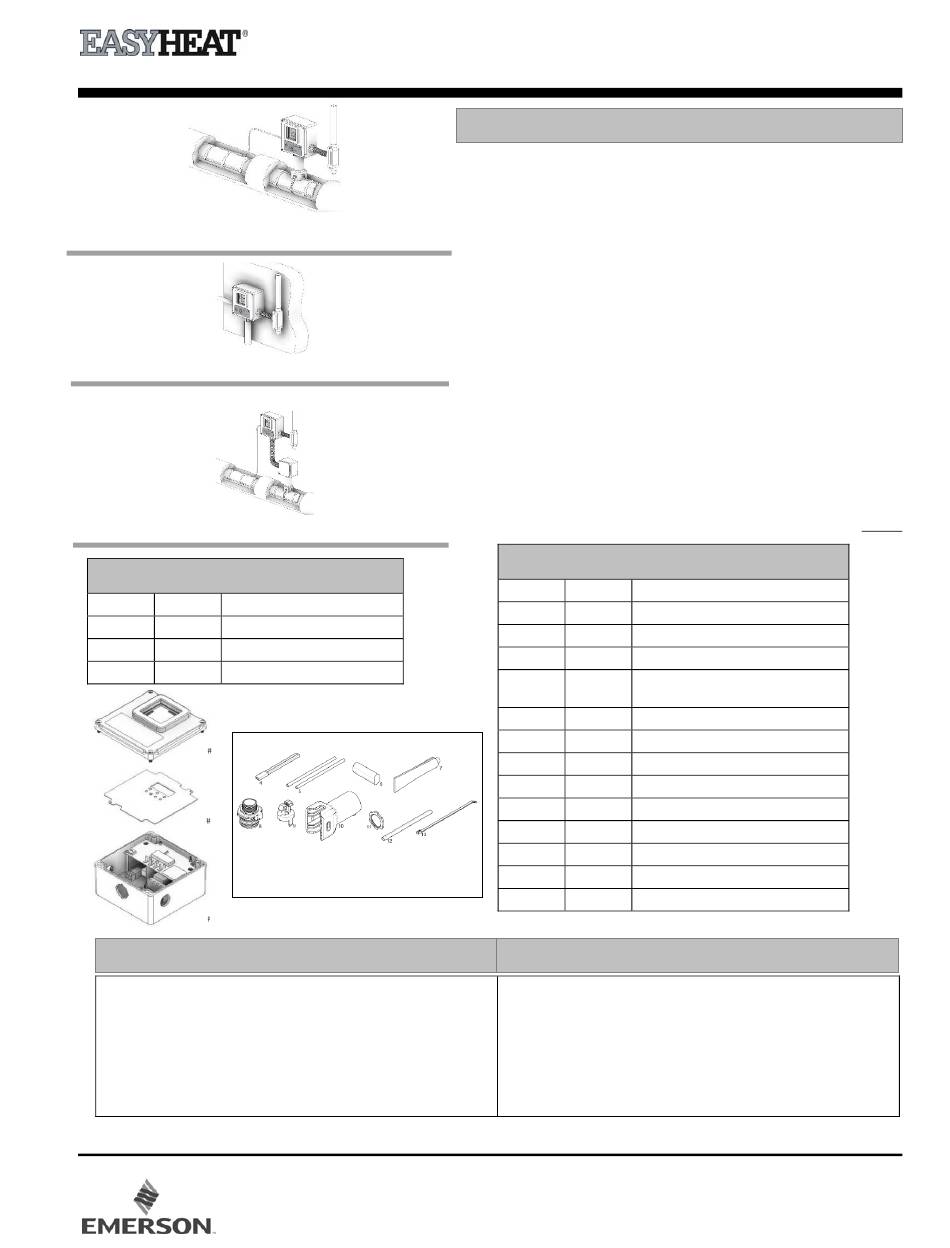

Emerson EASYHEAT EGPC Installation Instructions Manual

EGPC/AXPC100-EGPC General Purpose Temperature Controller
AXPC100-EGPC Pipe Mounted Option
EGPC Wall Mounted Option
EGPC Stand-Alone Option
EGPC CONTROLLER CONTENTS
QTY ITEM DESCRIPTION
1 1 LID
1 2 WIRE COVER
1 3 BOX WITH ELECTRONICS



OPTIONAL INSTALLATION MATERIAL
 Pipe Clamp – PC03, PC12 or PC20 (included)
 Fiberglass Tape – GT6 or GT60
 HC-SPA Small Pipe Adapter – For 1.0"
 EHRTD7 (RTD: PT100, 3 wire)
DESCRIPTION
The EGPC/AXPC100-EGPC is an electronic temperature
controller with 30-mA ground-fault protection. It is ideal for
all heat tracing applications requiring accurate temperature
monitoring. The controller can be programmed to maintain
temperatures up to 215°C (419°F) at voltages from 100 to
277 V and can switch current up to 30 Amperes for the
EGPC or 25 Amperes for the AXPC100-EGPC. The
EGPC/AXPC100-EGPC is complete with a temperature
sensor and is housed in a NEMA 4X rated enclosure. The
controller features an AC/DC dry alarm contact relay for
monitoring critical applications such as fire protection
piping.
These instructions are to be used together with the
installation and maintenance instructions for any heating
cable or power connection kits utilized with this controller.
ADDED FOR
AXPC100-EGPC
 TEL 800-621-1506
AXPC100-EGPC KIT CONTENTS
QTY ITEM DESCRIPTION
1 1 LID
1 2 WIRE COVER
1 3 BOX WITH ELECTRONICS
1 4 TERMINATION PWR LONG
SILICONE
2 5 GUIDE TUBE
1 6 SEAL END
1 7 TUBE OF SILICONE
1 8 1" NPT ADAPTER
1 9 CABLE RETAINER
1 10 STANDOFF
1 11 LOCK NUT
1 12 3/8" SHRINK TUBE
1 13 CABLE TIE
RECOMMENDED TOOLS
 Large Cross Blade (Philips) Screwdriver
 Small Cross Blade (Philips) Screwdriver
 Wire Cutters
 Adjustable Wrench (52mm [2.1"] size)
 Needle Nose Pliers
 Large Slotted Screwdriver
 www.EasyHeat.com 
INSTALLATION
INSTRUCTIONS
14251-002 Rev. 0
Sheet 1 of 10
