welcoming
MODEL NUMBER
1116VA-48-242-905
1116VA-48-242-901
1116VA-48-201-905
1116VA-48-201-901
1116VA-48-201-900

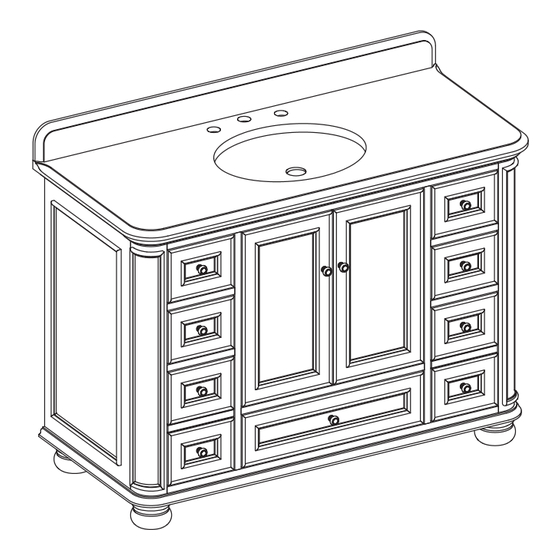

48-IN VANITY WITH TOP
ITEM # 1028305; 1028304; 1028294; 1028293; 1028292
MODEL # 1116VA-48-242-905; 1116VA-48-242-901; 1116VA-48-201-905;
1116VA-48-201-901; 1116VA-48-201-900
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
sophisticated
DESCRIPTION
SL WRSVL LT GRY 48-IN VTY TZO TOP
SL WRSVL LT GRY 48-IN VTY WHT TOP
SL WRITSVLE WH 48-IN VTY TZO TOP
SL WRITSVLE WH 48-IN VTY WHT TOP
SL WRITSVLE WH 48-IN VTY MBL TOP
1
•
inspiring
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allen + Roth 1116VA-48-242-905
Summary of Contents for Allen + Roth 1116VA-48-242-905

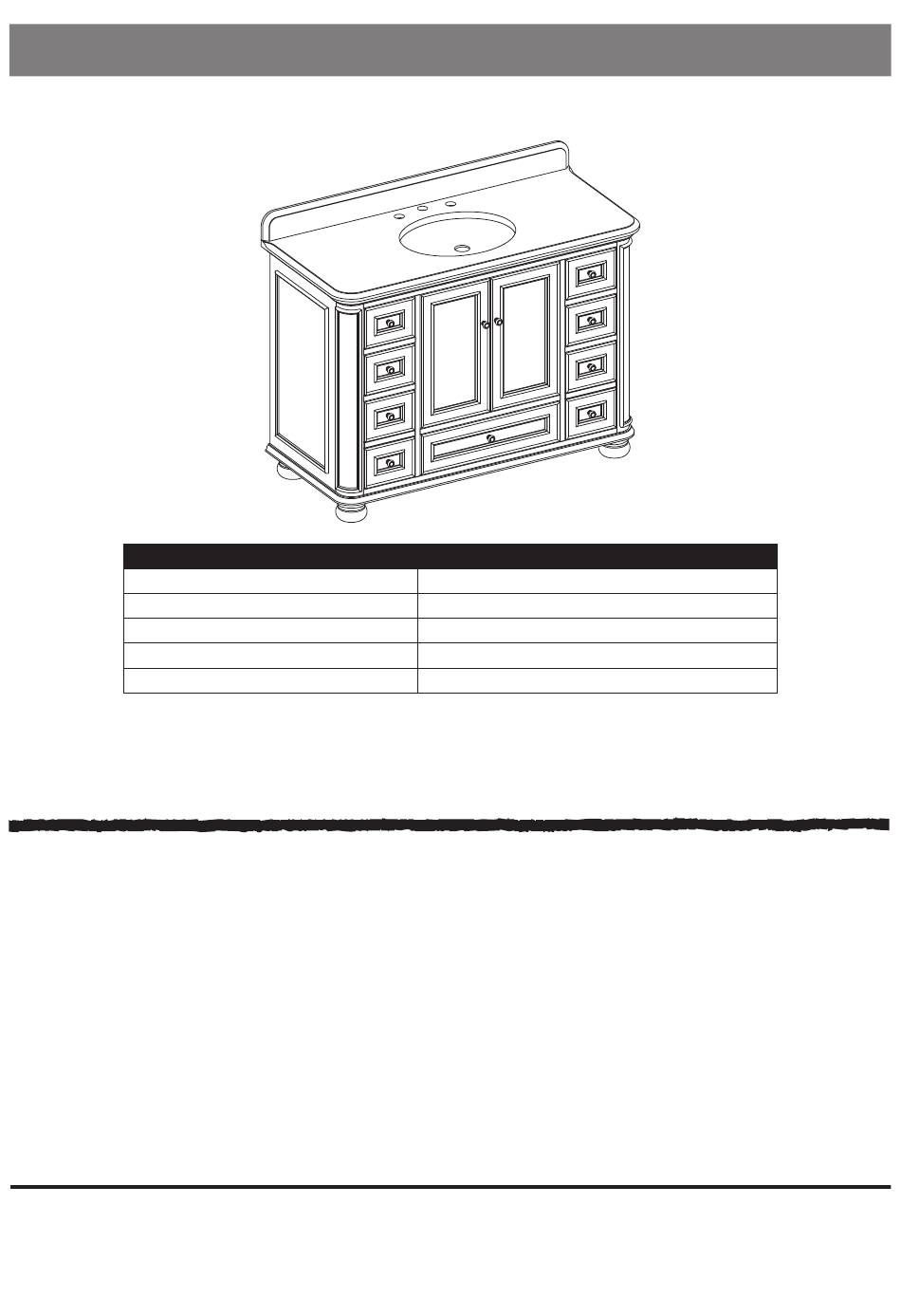

- Page 1 1116VA-48-201-900 SL WRITSVLE WH 48-IN VTY MBL TOP 48-IN VANITY WITH TOP ITEM # 1028305; 1028304; 1028294; 1028293; 1028292 MODEL # 1116VA-48-242-905; 1116VA-48-242-901; 1116VA-48-201-905; 1116VA-48-201-901; 1116VA-48-201-900 ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Information..........................3 Preparation............................4 Assembly or Installation Instructions....................4 Care and Maintenance........................10 Warranty............................10 Replacement Parts List........................11... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY CARTON Vanity Box 2 of 2 Box 1 of 2 Backsplash Sink Left Door (preassembled to Box 2 of 2 Vanity (A)) Right Door (preassembled to Vanity (A)) HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Bolt Sink Bracket Lock Washer Wrench... -
Page 4: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Installation Time: 45 minutes (24 hours for silicone caulk to dry). Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors, silicone caulk, power drill with drill bit, measuring tape, level. - Page 5 INSTALLATION INSTRUCTIONS 2. Take out the top (B) and backsplash (C) according to the steps indicated by the drawings on the right, and place them face down onto a scratch free surface such as a Foam sheet foam sheet that came in the packaging. Remove the top foam sheet Remove the backsplash and place it on a scratch free surface...
- Page 6 INSTALLATION INSTRUCTIONS 4. Screw bolts (AA) into the threaded holes of stone top (B). Hardware Used Bolt 5. Lower the sink brackets (BB) over the bolts (AA) and allow to rest on the sink lip. Adjust location of bracket to firmly grasp sink lip. Lower lock washers (DD) over bolts (AA) and secure with nuts (CC).
- Page 7 INSTALLATION INSTRUCTIONS Helpful tip: it may be easier to install your choice of faucet (not included) before securing the vanity top (B) to vanity base (A). 6. To install the stone top with assembled sink to the vanity (A). Apply silicone caulk to the top edge of the wood cabinet.
- Page 8 INSTALLATION INSTRUCTIONS 8. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in and out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
- Page 9 INSTALLATION INSTRUCTIONS 10. To re-install drawers into vanity (A). Please fully extend metal glide tracks, gently lower and slide drawer box into rear glide catch, then, lower drawer box down to completely rest on extended glides, push plastic levers to lock the drawer box in place.
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE • Dust the vanity regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the vanity with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 11: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1116VA-48-201 For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART # Complete Set 48" Carrara Marble Top 1116VT-48-900 Complete Set 48" Engineered White Top 1116VT-48-901 Complete Set 48"... - Page 12 REPLACEMENT PARTS LIST FOR 1116VA-48-242 For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART # Complete Set 48" Engineered White Top 1116VT-48-901 Complete Set 48" Terrazzo Top 1116VT-48-905 48"...
