Savant PS-INV-12.5KW-60A Series Quick Reference Manual

Savant Power Storage 20 [60A]
Quick Reference Guide
Box Contents
(1) Savant Power Inverter (PS-INV-12.5KW-60A-XX)
(8) Power Storage 20 Battery (PS20-BATT-20KWH)
(1) Savant Power Director
(1) Battery Crate (8 x Modules)
(1) Conduit Nipple Kit
(1) Mounting & Installation Kit
(4) M5x12 Screws
(4) M5x10 Screws
(4) M10 Expansion Screws
(4) M6 Expansion Anchor Screw
Specifications
Environmental
Inverter: -13°F to 131°F (-25°C to 55°C)
Temperature
Battery: 32°F to 113°F (0°C to 45°C)
0% to 95% Relative Humidity (non
Humidity
condensing)
Altitude Less than 9842 ft
Rating NEMA4X
Dimensions and Weights
Height Length
85.4 in 25.6 inch
(216.92 cm) (65.02 cm)
Inverter Power
Maximum Grid Transfer
Output Current Time
12.5 kW < 70ms
Battery Power
Battery
52 Ah / 20 kWh
Capacity
Maximum
12.5kW
Power
Standards
Wi-Fi 2.4 GHz IEEE 802.11 b/g/n
Regulatory
Safety and
Emissions
Contains FCC
ID:
UL 1741 SB, UL 1741 PCS, UL9540,
Certifications
UL 1973, UL 1642, UL 1998, CSA 22.2
RoHs
Savant Power Storage 20 [60A] Quick Reference Guide | 009-2396-01
Copyright © 2023 Savant Systems, Inc | 231130
Depth Weight
600 lbs
12.2 inch
(30.988 cm)
(272.15 kg)
Maximum
Maximum
Passthrough
Surge Output
Per Inverter
16 kVA, 10s
60A
21 kVA, 20ms
FCC Part 15 Class B
2AA9B10
Compliant

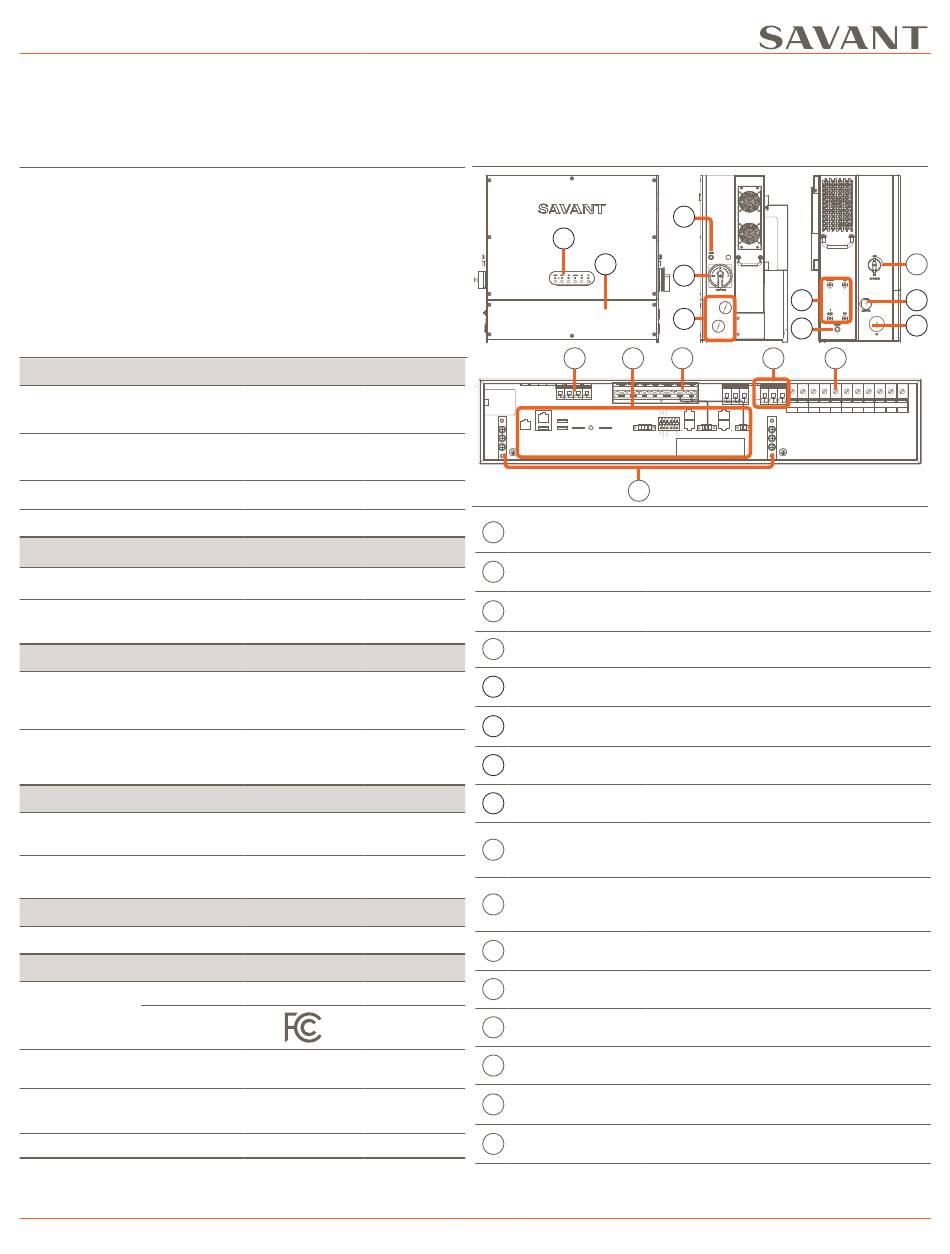

Inverter Front Panel
A
B
K L
L H T R
RS232 DC 12V
GPS
USB4
USB2 USB3 C-LED
NETWORK SD RESET 4G LTE
P
Descriptions
Inverter Status
A
LEDs
Inverter Front
B
Panel
C
ON/OFF Button
D
Grid Switch
Conduit Knock-
E
outs
F
Antennas
G
Reset Button
H
PV Switch
Battery and
I
Communication
Caps
J
Network
K
PV Inputs
L
I/O Ports
M
Inverter Wiring
N
Battery Inputs
GRID, LOAD, &
O
GEN Connections
P
Ground
1 of 5
Right Panel Left Panel
C
D
F
E
G
M N O
DC 12V
P S G G B A
DC 12V C-LED UPCS DC 12V
RS232
RS232 BCMS GRID
DC- DC+ L1 N
RS485-4 UPCS RS485-1 DC V12
See Inverter Status LEDs.
Remove panel to reveal inverter wiring
area.
Power on or off the Savant Power
Storage.
Connect or disconnect the Grid input.
Knockouts for AC Conductor Conduits.
Wi Fi, GPS, 4G Main, and 4G DIV
Antennas
Press to reset inverter status.
Emergency off switch for PV arrays.
Waterproof caps.
Network connection for the inverter to
communicate with the greater Savant
Power System.
MPPT Inputs.
See Inverter I/O Ports.
Pre-installed inverter wiring.
Battery power inputs.
Grid, Load, and Generator connections.
Inverter & battery grounding
connections.
