Savant Power Storage 20 Quick Reference Manual

Savant Power Storage 20 [100A]
Quick Reference Guide
Box Contents
(1) Savant Power Inverter (PS-INV-12.5KW-100A-XX)
(8) Power Storage 20 Battery (PS20-BATT-20KWH-XX)
(1) Savant Power Director
(1) Battery Crate (8 x Modules)
(1) Conduit Nipple Kit
(1) Mounting & Installation Kit
(4) M5x12 Screws
(4) M5x10 Screws
(4) M10 Expansion Screws
(4) M6 Expansion Anchor Screw
Specifications
Environmental
Inverter: -13°F to 131°F (-25°C to 55°C)
Temperature
Battery: 32°F to 113°F (0°C to 45°C)
0% to 95% Relative Humidity (non
Humidity
condensing)
Altitude Less than 9842 ft
Rating NEMA4X
Dimensions and Weights
Height Length
85.4 in 25.6 inch
(216.92 cm) (65.02 cm)
Inverter Power
Maximum Grid Transfer
Output Current Time
12.5 kW < 70ms
Battery Power
Battery
52 Ah / 20 kWh
Capacity
Maximum
12.5kW
Power
Standards
Wi-Fi 2.4 GHz IEEE 802.11 b/g/n
Regulatory
Safety and
Emissions
Contains FCC
ID:
Certifications
UL 1973, UL 1642, UL 1998, C22.2 No. 107.1 and 330
RoHs
Savant Power Storage 20 [100A] Quick Reference Guide | 009-2383-01
Copyright © 2024 Savant Systems, Inc | 240109
Depth Weight
600 lbs
12.2 inch
(30.988 cm)
(272.15 kg)
Maximum
Maximum
Passthrough
Surge Output
Per Inverter
35 kVA, 20 ms
100A
21 kVA, 10s
FCC Part 15 Class B
XMR201808EC25AF
UL 1741 SB, UL 1741 PCS, UL9540,
Compliant

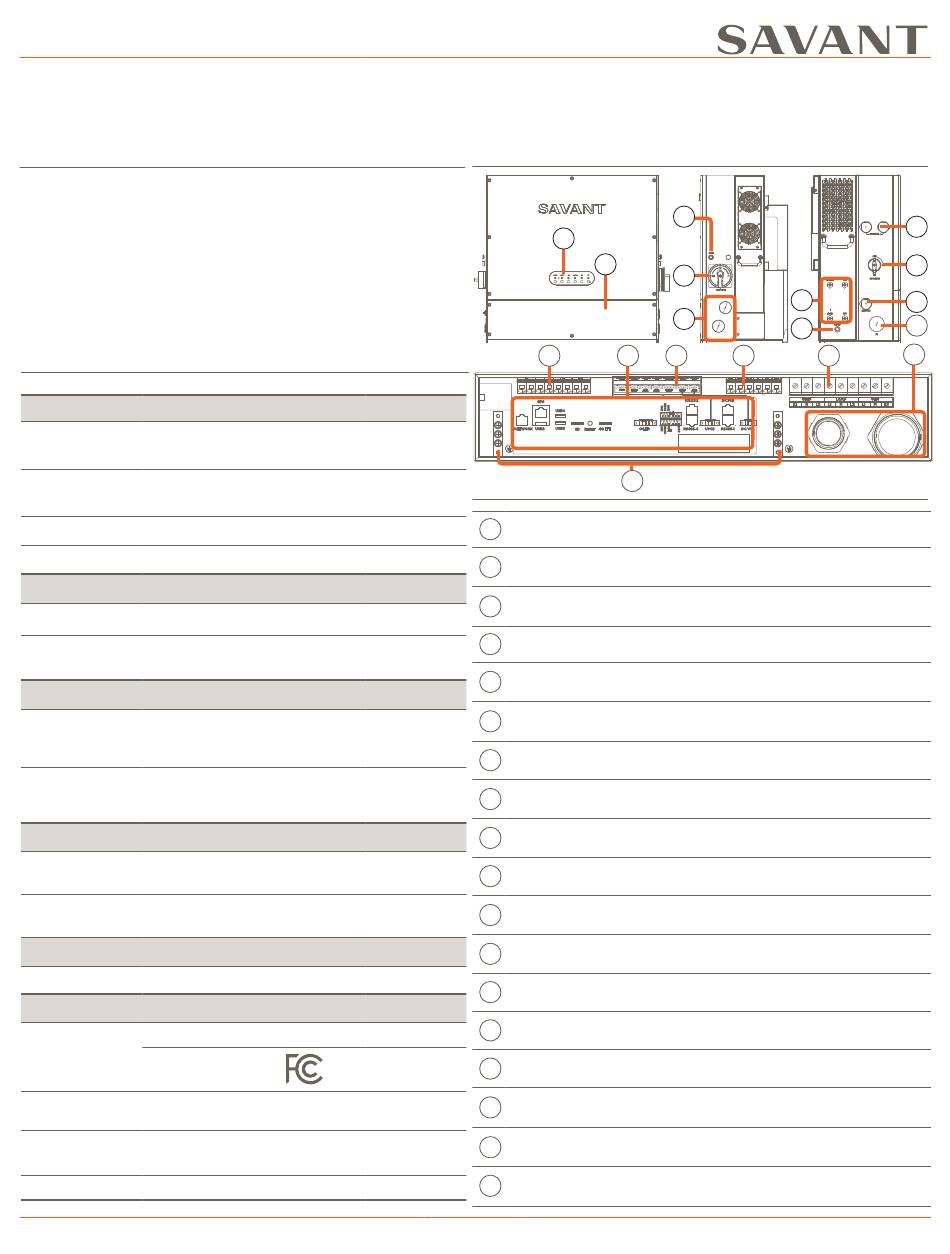

Inverter Front Panel
A
B
L M
L H T R
RS232
GPS
USB4
NETWORK USB2 USB3 RESET 4G LTE
SD
Q
Descriptions
A
Inverter Status LEDs
B
Inverter Front Panel
C
ON/OFF Button
D
Grid Switch
E
Conduit Knock-outs
F
Antennas
G
Reset Button
H
Parallel
I
PV Switch
J
Communication Caps
K
PV Conduit Knockout
L
PV Inputs
M
I/O Ports
N
Inverter Wiring
O
Battery Inputs
GRID, LOAD, & GEN
P
Connections
Q
Ground
Rear-Entry Conduit
R
Knockouts
1 of 5
Right Panel Left Panel
C
D
F
E
G
N O
DC 12V
P S G G B A
DC 12V DC 12V C-LED UPCS DC 12V
RS232
GRID
RS232 BCMS
L1 N L2
C-LED RS485-4 UPCS RS485-1 DC V12
See Inverter Status LEDs.
Remove panel to reveal inverter
wiring area.
Power on or off the Savant Power
Storage.
Connect or disconnect the Grid input.
Knockouts for AC Conductor
Conduits.
Wi Fi, GPS, 4G Main, and 4G DIV
Antennas
Press to reset inverter status.
Inputs used to parallel multiple
inverters.
Connect or Disconnect DC Solar.
Waterproof caps.
Knockouts for PV Conductor
Conduit.
MPPT Inputs.
See Inverter I/O Ports.
Pre-installed inverter wiring.
Battery power inputs.
Grid, Load, and Generator
connections.
Inverter & battery grounding
connections.
Knockouts for Conductor Conduits.
