QUICK GUIDE

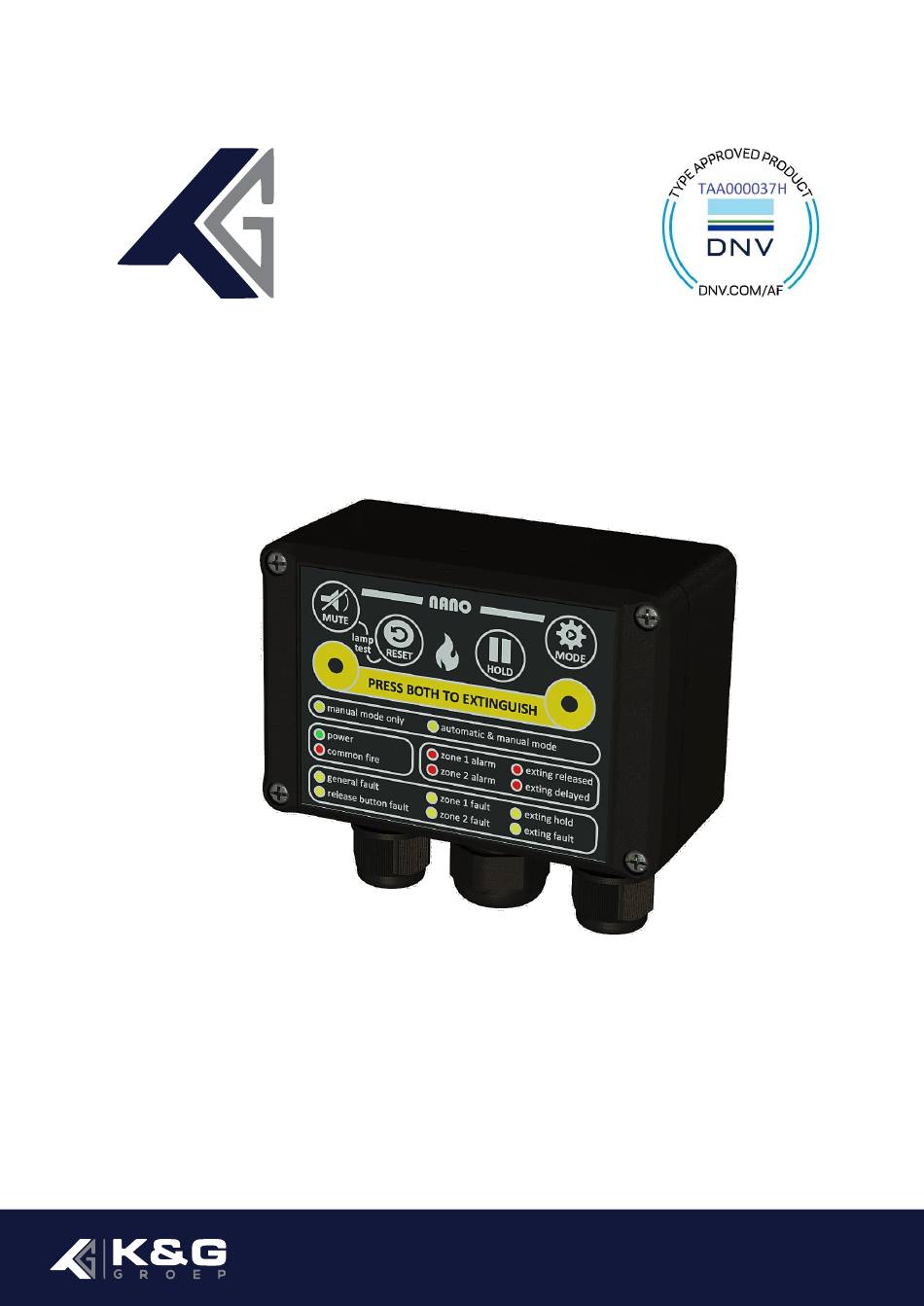

NANO MARINE
Commissioning,
installation and testing
quick guide for a control and monitoring system
meant for a Stat-X aerosol fire extinguishers
No part of this manual may be reproduced, stored in an automated database, or made public in any form or by any
means either electronically, mechanically or by photocopying, recording, or in any other way, without prior written
permission from K&G Groep BV. The policy of K&G Groep BV is one of continuous improvement and as such we reserve
the right to make changes to product specifications at any time and without prior notice.
www.kg-groep.com April, 2024 | version 1.2
