K&G GROEP NANO MARINE Owner's Manual

Fire detection extinguishing control system
Hide thumbs Also See for NANO MARINE:
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's manual
NANO MARINE
FIRE DETECTION
EXTINGUISHING
CONTROL SYSTEM
www.KG-Groep.com | January 1, 2023 | version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NANO MARINE and is the answer not in the manual?

Questions and answers

Related Manuals for K&G GROEP NANO MARINE

Summary of Contents for K&G GROEP NANO MARINE

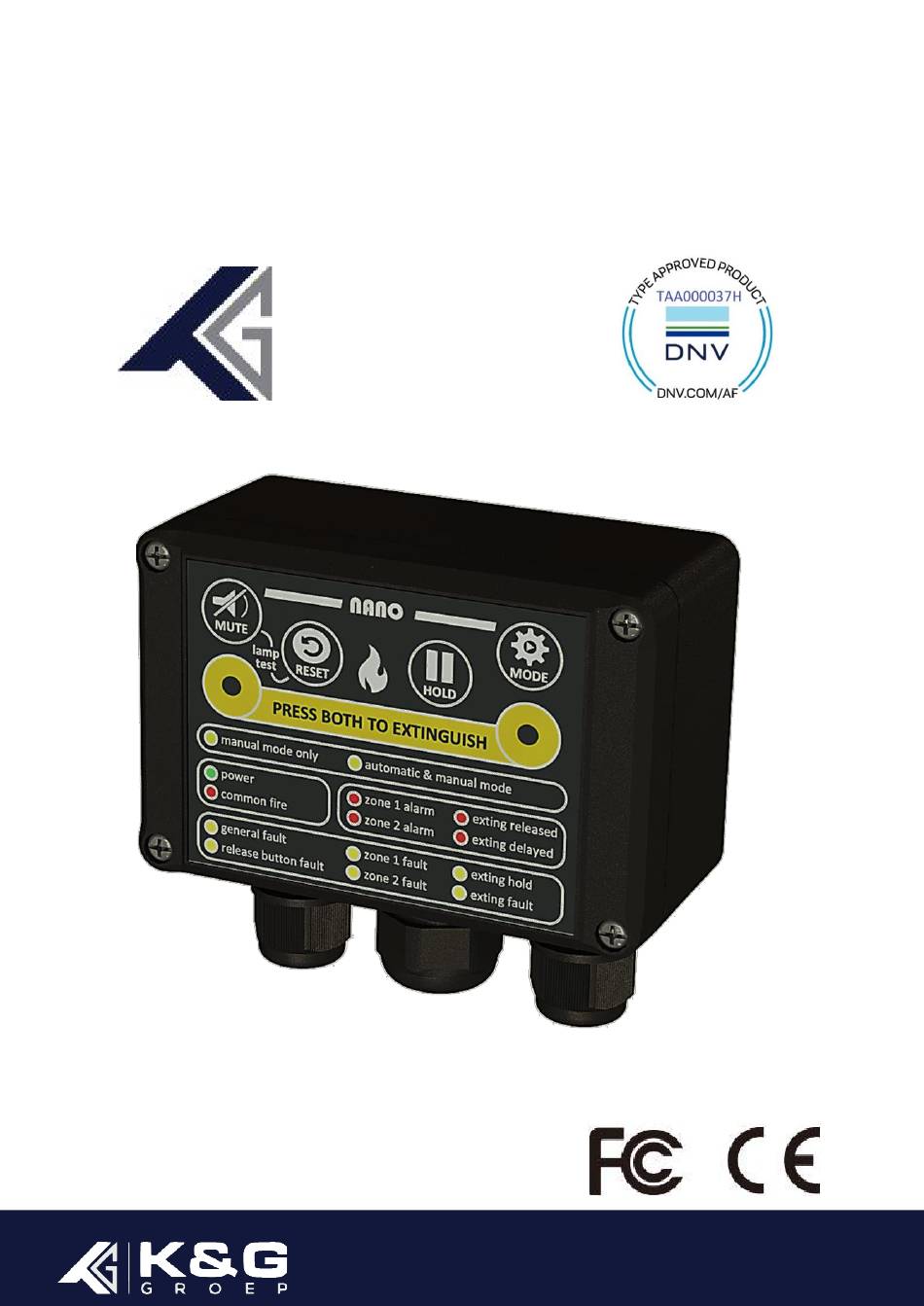

  • Page 1 Owner’s manual NANO MARINE FIRE DETECTION EXTINGUISHING CONTROL SYSTEM www.KG-Groep.com | January 1, 2023 | version 1.0...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS FOREWORD CERTIFICATION INTRODUCTION MAINTENANCE & CLEANING KEY PROPERTIES FEATURES OF THE NANO MAR SYSTEM 6.1 A COUSTIC ALARM 6.2 E XTINGUISHANT RELEASE OUTPUT 6.3 H ISTORIC EVENT LOG 6.4 C OMMUNICATION PORT 6.5 D IRECT RELEASE 6.6 G ENERAL FAULT RELAY 6.7 VFC FIRE RELAY ACTIVE IN SINGLE OF DUAL MODE ALARM...

  • Page 3: Foreword

    OREWORD This owner9s manual must be thoroughly read and understood before using and operating the NANO MAR SYSTEM and is intended for end users. The NANO MAR SYSTEM and the associated connections must be installed, commissioned, and maintained by a skilled, knowledgeable, and competent person or organization that is appropriately qualified to perform this work and is familiar with the objective of the equipment and the associated technical terminology.

  • Page 4: Key Properties

    EY PROPERTIES The NANO MAR SYSTEM consists of three components. The basis is formed by the NANO control panel which is placed on the bridge or in its vicinity. Then there are two extinguisher terminal boxes (ETB MAR BOX). The ETB MAR BOX must be placed outside, but in the immediate vicinity of the protected room.

  • Page 5: Historic Event Log

    6.3 H ISTORIC EVENT LOG The NANO control panel has an historic event log memory of 10.000 events readable from a USB port. Connect an USB cable between the Mini-B USB port and your computer. The device will function as an USB stick.

  • Page 6: Control Buttons

    ONTROL BUTTONS 8.1 M The buzzer can be silenced at any time by pressing the Mute button. To silence the external sounder, press the Mute button twice. In case of a second alarm the sounder and buzzer will be activated again. 8.2 R ESET After the cause of the alarm has been determined the NANO control panel can be reset by pressing...

  • Page 7: Led Indicators

    9 LED INDICATORS The NANO control panel has 3 internal fault and 14 individual front LED indicators. Under normal condition only the green Power LED and either the Manual Only or Automatic and Manual LED lite. 9.1 M ANUAL RELEASE ONLY The yellow LED manual only lit, the extinguishant will only released by manual action.

  • Page 8: Extinguishing Released

    9.6 E XTINGUISHING RELEASED The red extinguishing released indicator lights continuously when the extinguishers are activated. This extinguishing release indicator lights up after ending of the configured extinguishing delay time, or when the two extinguishing release buttons on the front or the external release button is activated. 9.7 E XTINGUISHING DELAYED The red extinguishing delayed indicator indicates that the extinguishing release delay is active.

  • Page 9: Common Settings

    10 C OMMON SETTINGS In a marine application, it is NOT common for a fire suppression system intended for an engine room to be released by an automatic fire detector but ONLY by manual release. The most common Marine setting of the NANO MAR SYSTEM is based on marine rules and standards. Under normal condition only the green Power LED and the Manual Only LED lite to indicate the system is operating correctly.

  • Page 10: Maintenance Recommendations

    12 M AINTENANCE RECOMMENDATIONS 12.1 T EST THE NANO MAR SYSTEM WITHOUT ACTIVATING THE EXTINGUISHERS Step 1 OPEN the ETB MAR BOX Step 2 DISCONNECT each extinguisher by using the disconnect switch on each ETB. Disconnect extinguisher MOVE the disconnect switch of all in the YES position and the aerosol extinguisher is disabled and can not be activated.

  • Page 11: Daily Testing (Premises Management )

    12.2 D AILY TESTING REMISES ANAGEMENT To be conducted by the Premises Management. Check that the panel shows no fire or fault indications. If there are any fault conditions indicated, then follow instructions in section 11. 12.3 W EEKLY TESTING REMISES ANAGEMENT To be conducted by the Premises Management.

  • Page 12: Warranty

    13 W ARRANTY K&G represent the NANO/MAR SYSTEM and is free from defects in materials and workmanship. Our warranty does not cover a NANO/MAR SYSTEM which is damaged, misused, and/or used contrary to the supplied operating manuals or which has been repaired or altered by others. The liability of K&G is at all times limited to repair or, at K&G8s discretion, replacement of the NANO/MAR SYSTEM.
