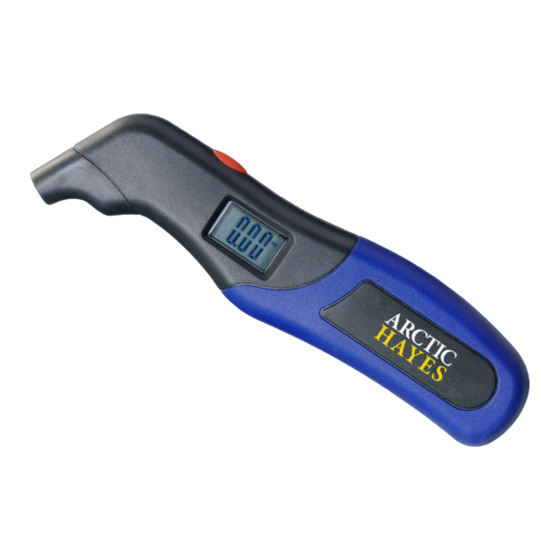

- Page 1 ARCTIC HAYES DIGITAL PRESSURE VESSEL CHECKER User Manual AHTP5 Before using the instrument, please read this manual carefully, and save for future reference.
- Page 2 Safety Instructions & Features The Arctic Hayes Digital Pressure Vessel Checker is a compact, tough and easy to use pressure gauge. Avoid contact with moisture – therefore use in closed rooms or in protected outdoor areas wherever possible. Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
- Page 3 Physical Appearance LCD display Power / unit select button Valve connector LED light Height - 156mm Weight - 77g (without Width - 42mm batteries) Length - 20mm...
- Page 4 Specification & Measurement Operation Display LCD display Measuring Range 5 - 100 PSI Accuracy ±1% ±0.5 PSI Size ( H x W x D) 156mm x 42mm x 20mm Weight Accessories 2 x 1.5 batteries (incuded) * Note - 1 PSI = 0.0689, BAR = 6.895, KPA 1 BAR = 14.5038 PSI Measurement Operation: 1.
- Page 5 Battery Replacement 1. Once the battery power is low the LCD display will be faint, and the batteries will need to be replaced. 2. Turn off the meter and remove the battery cover. 3. Remove the batteries from the instrument and replace with two AAA 1.5V batteries not the polarity, replace the battery cover.
- Page 8 Do not dispose of the unit with the usual domestic refuse. Do not burn the product. Arctic Hayes Ltd Arctic Hayes Ltd 9 Millshaw Park Ave | Leeds Ipco B.V, Spinel 400 LS11 0LR | United Kingdom 3316 LG Dordrecht sales@arctic-hayes.com...
