Pylontech LV-HUB Installation Manual

Hide thumbs Also See for LV-HUB:

Download this manual

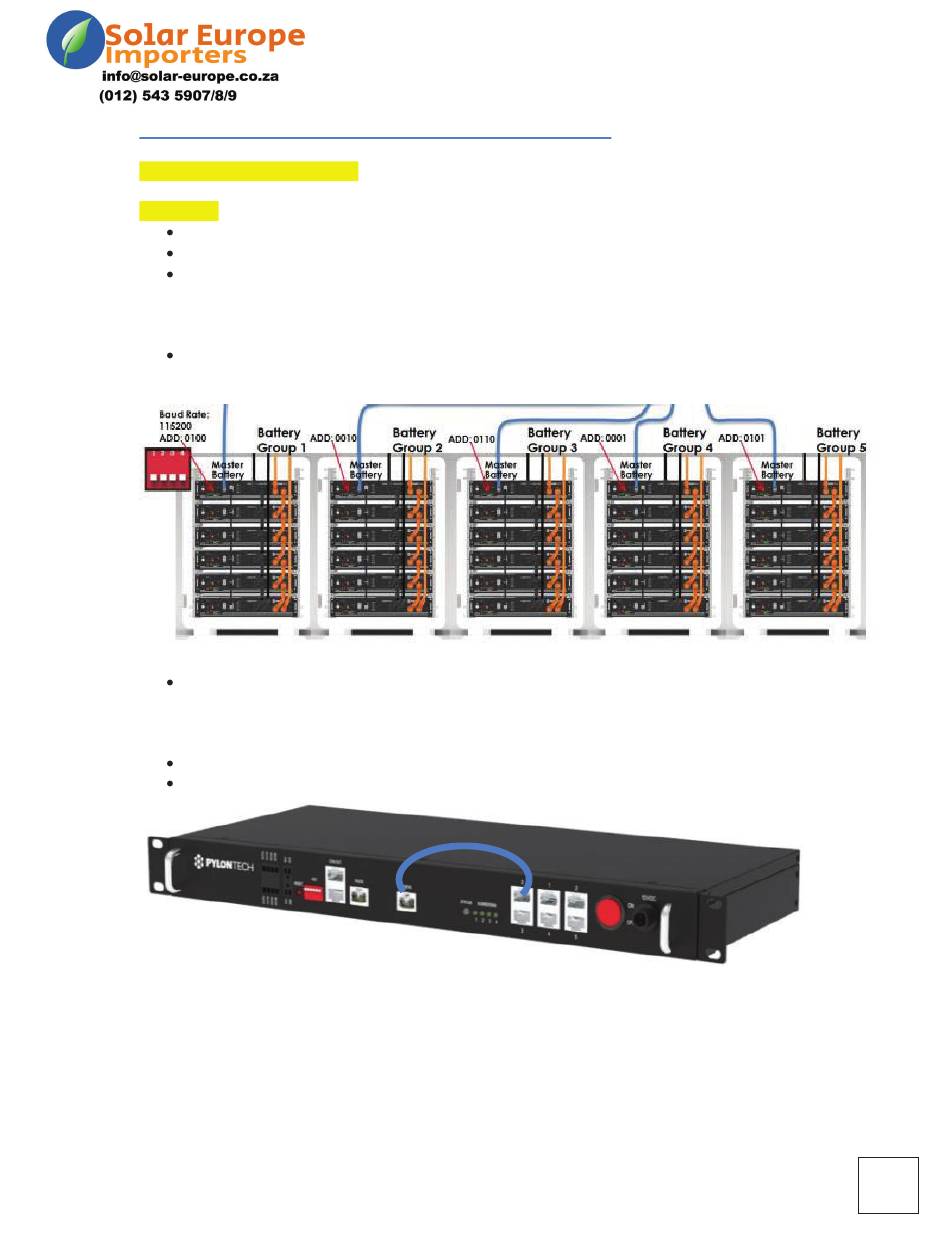

PYLONTECH LV-HUB INSTALLATION GUIDE

FOR CAN BUS COMMUNICATION

Please note:

All the batteries and the LV Hub must be OFF

12V Pylontech LV HUB will come with a 12V power supply in the packaging

Should the LV hub be supplied without a power supply in the packaging it will require a

48V supply although the label may state 12V

STEP 1

SET THE ADD SWITCHES ON EACH BANK'S MASTER AS BELOW -

LV HUB YET

ONLY THE MASTER BATTERY OF EACH GROUP THAT THE ADD BE SET – THE REST MUST BE AT

DOWN

POSITION

STEP 2

CONNECT THE COMMUNICATION CABLE FROM PORT "0" TO PORT "CAN IN"

CONNECT THE POWER SUPPLY CABLE INTO THE LV-HUB AND INTO THE 48V SUPPLY

DO NOT CONNECT INTO THE

Need help?

Do you have a question about the LV-HUB and is the answer not in the manual?

Page 1 All the batteries and the LV Hub must be OFF 12V Pylontech LV HUB will come with a 12V power supply in the packaging Should the LV hub be supplied without a power supply in the packaging it will require a...
Page 2 DOUBLE CHECK THAT THERE ARE NO ALARMS IN ALL THE BATTERIES IN THE GROUP STEP 4 ENSURE THAT ALL THE DIP SWITCHES ON THE LV-HUB ARE ON THE UP POSITION NOW SWITCH ON THE LV HUB LED 1 MUST FLASH GREEN, INDICATING THAT IT CAN SEE THE SINGLE GROUP CONNECTED...
Page 3 STEP 5 SWITCH OFF THE LV-HUB CONNECT THE SECOND GROUP OF BATTERIES REPEAT STEP 4, NOW LED 2 ON THE HUB SHOULD FLASH. INDICATING 2 GROUPS ARE BEING RECOGNIZED. TO CONNECT GROUP 3, 4 & 5 CONTINUE TO ADD THEM ONE BY ONE CHECKING STEP 4...
