Kvaser PCIEcan HS v2 User's Guide
Copyright 2023 GMGA MEASURING - Hanoi, Vietnam
https://gmga.vn/
Printed Thurday 20th July, 2023
We believe that the information contained herein was accurate in all respects at the time of printing. GMGA
MEASURING cannot, however, assume any responsibility for errors or omissions in this text. Also note that
the information in this document is subject to change without notice and should not be construed as a
commitment by GMGA MEASURING.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kvaser PCIEcan HS v2 and is the answer not in the manual?

Questions and answers

Related Manuals for GMGA MEASURING Kvaser PCIEcan HS v2

Summary of Contents for GMGA MEASURING Kvaser PCIEcan HS v2

  • Page 1 Kvaser PCIEcan HS v2 User’s Guide Copyright 2023 GMGA MEASURING - Hanoi, Vietnam https://gmga.vn/ Printed Thurday 20th July, 2023 We believe that the information contained herein was accurate in all respects at the time of printing. GMGA MEASURING cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GMGA MEASURING.
  • Page 2 Kvaser PCIEcan HS v2 User’s Guide 2 (17) (This page is intentionally left blank.) GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...

  • Page 3: Table Of Contents

    3 (17) Contents 1 About this manual 2 Introduction 2.1 Welcome to Kvaser PCIEcan HS v2 ..............5 2.2 Major features ....................... 6 2.3 Interface ........................ 6 2.4 Additional software and documentation ............... 6 3 Kvaser PCIEcan HS v2 hardware 3.1 Hardware installation ....................

  • Page 4: About This Manual

    Kvaser PCIEcan HS v2 User’s Guide 4 (17) About this manual This manual is intended for Kvaser PCIEcan HS v2 users. This document contains a description of the hardware’s properties and general instructions for connecting the device to a computer.

  • Page 5: Introduction

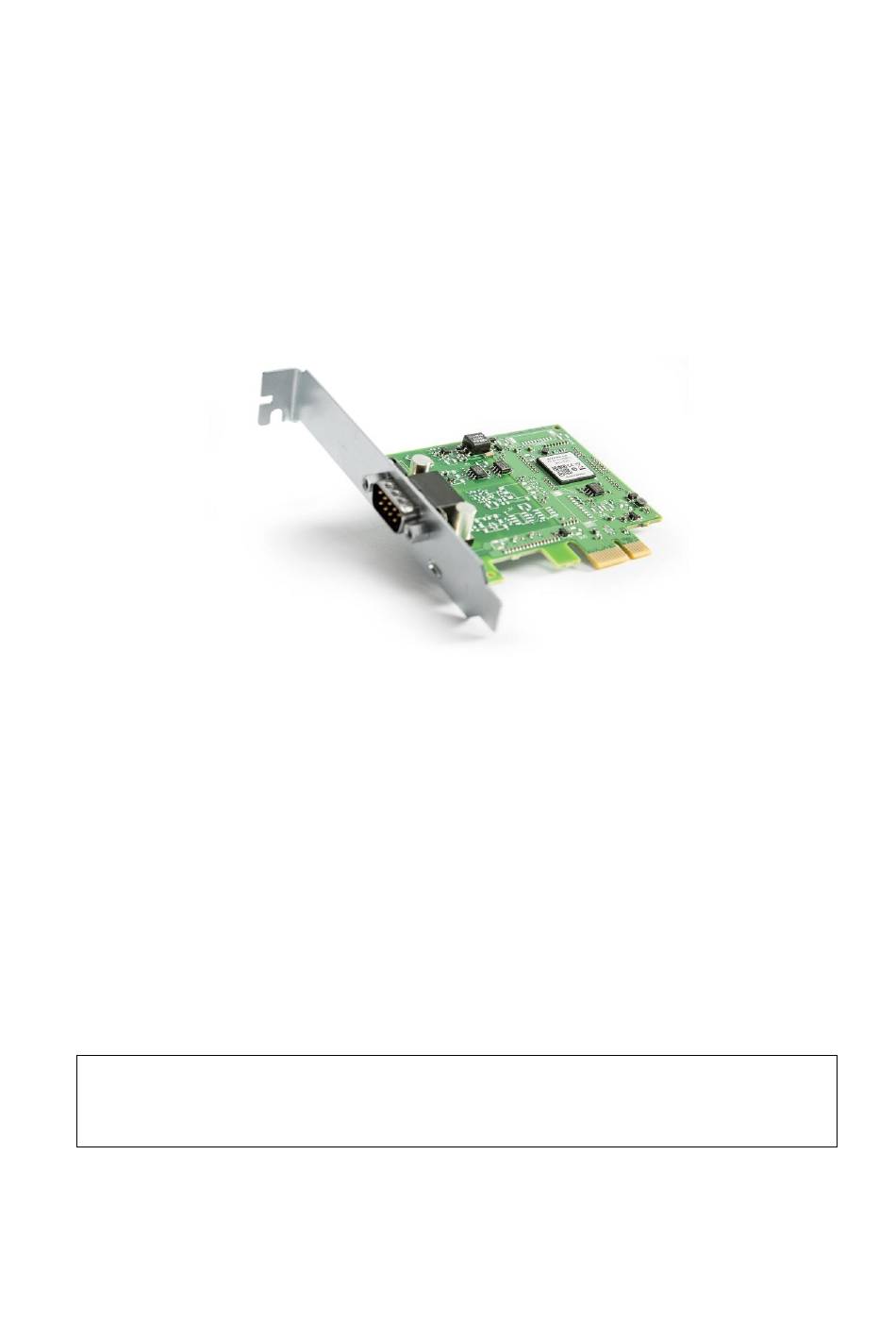

    Welcome to Kvaser PCIEcan HS v2 Figure 1: Kvaser PCIEcan HS v2 Kvaser PCIEcan HS v2 is a small, yet advanced, real time CAN interface that handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision.

  • Page 6: Major Features

    • Low profile board, includes low and high profile brackets. Interface Kvaser PCIEcan HS v2 provides a CAN bus interface through a standard PCI Express x1 interface. Additional software and documentation The Kvaser CANlib SDK includes everything you need in order to develop software applications interacting with Kvaser CAN and LIN hardware.

  • Page 7: Kvaser Pciecan Hs V2 Hardware

    In this section you can read more about the CAN channels, power supply and LED indicators. Hardware installation The Kvaser PCIEcan HS v2 may be inserted in any free PCI Express slot on the host computer. You do need to switch the power off before inserting or removing the device. CAN channels The Kvaser PCIEcan HS v2 has a single CAN channel with a 9-pin male D-SUB CAN connector (see Figure 2).

  • Page 8: Troubleshooting

    Troubleshooting Use “Kvaser Device Guide” in the Control Panel to verify that the computer can communicate with the Kvaser PCIEcan HS v2. If the firmware version shown is all zeros, there are communication problems. GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...

  • Page 9: Appendices

    Table 2: Technical Specifications. CAN connectors Kvaser PCIEcan HS v2 devices that use the 9-pin D-SUB connector (see Figure 4 on Page 10) have the pinning described in Table 3 on Page 10. GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...

  • Page 10: Can Bus Termination

    Every CAN bus must be terminated with a 120 Ohm resistor at each end of the bus. The Kvaser PCIEcan HS v2 does not contain any CAN bus termination, because their inclusion could cause severe disturbance in a system which is already correctly terminated.
  • Page 11 To check the current firmware version, open “Kvaser Device Guide” which can be found in the Control Panel. Select “Kvaser PCIEcan HS v2” in the tree view to the left, and click on the channel. The firmware revision information now appears in the right half of the window.

  • Page 12: Disposal And Recycling Information

    Kvaser PCIEcan HS v2 User’s Guide 12 (17) Disposal and Recycling Information When this product reaches its end of life, please dispose of it according to your local environmental laws and guidelines. For information about Kvaser’s recycling programs, visit: https://www.kvaser.com/en/kvaser/recycling-policy.html...

  • Page 13: Legal Acknowledgements

    Kvaser PCIEcan HS v2 User’s Guide 13 (17) Legal acknowledgements Usage warning WARNING FOR ALL USERS WARNING! - YOUR USE OF THIS DEVICE MUST BE DONE WITH CAUTION AND A FULL UNDERSTANDING OF THE RISKS! THIS WARNING IS PRESENTED TO INFORM YOU THAT THE OPERATION OF THIS DEVICE MAY BE DANGEROUS.

  • Page 14: Eu Regulatory Compliance

    Kvaser PCIEcan HS v2 User’s Guide 14 (17) EU Regulatory Compliance EU Declaration of Conformity (DoC) Kvaser AB M¨ o lndal Company Name: City: +46 31 886344 Aminogatan 25 Telephone number: Postal address: sales@kvaser.com 431 53 Postcode: E-mail address: declare that the DoC is issued under our sole responsibility and belongs to the following product:...

  • Page 15: Fcc Regulatory Compliance

    Kvaser PCIEcan HS v2 User’s Guide 15 (17) FCC Regulatory Compliance Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser PCIEcan HS v2 Type: 73-30130-00866-3 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 §15.107, §15.109 This device complies with part 15 of the FCC Rules.

  • Page 16: Patents, Copyrights And Trademarks

    Kvaser PCIEcan HS v2 User’s Guide 16 (17) Patents, Copyrights and Trademarks All trademarks are the property of their respective owner. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Adobe, the Adobe logo, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

  • Page 17: Document Revision History

    Kvaser PCIEcan HS v2 User’s Guide 17 (17) Document Revision History Version history for document UG_98183_pciecan_v2: Revision Date Changes 2016-02-04 Initial version 2017-01-09 Updated compliance text, added link to patents 2017-03-21 Added Power consumption to Techical data. 2017-08-25 Updated EU Declaration of Conformity “Kvaser Device Guide”...
